How to Use 9V Battery: Examples, Pinouts, and Specs

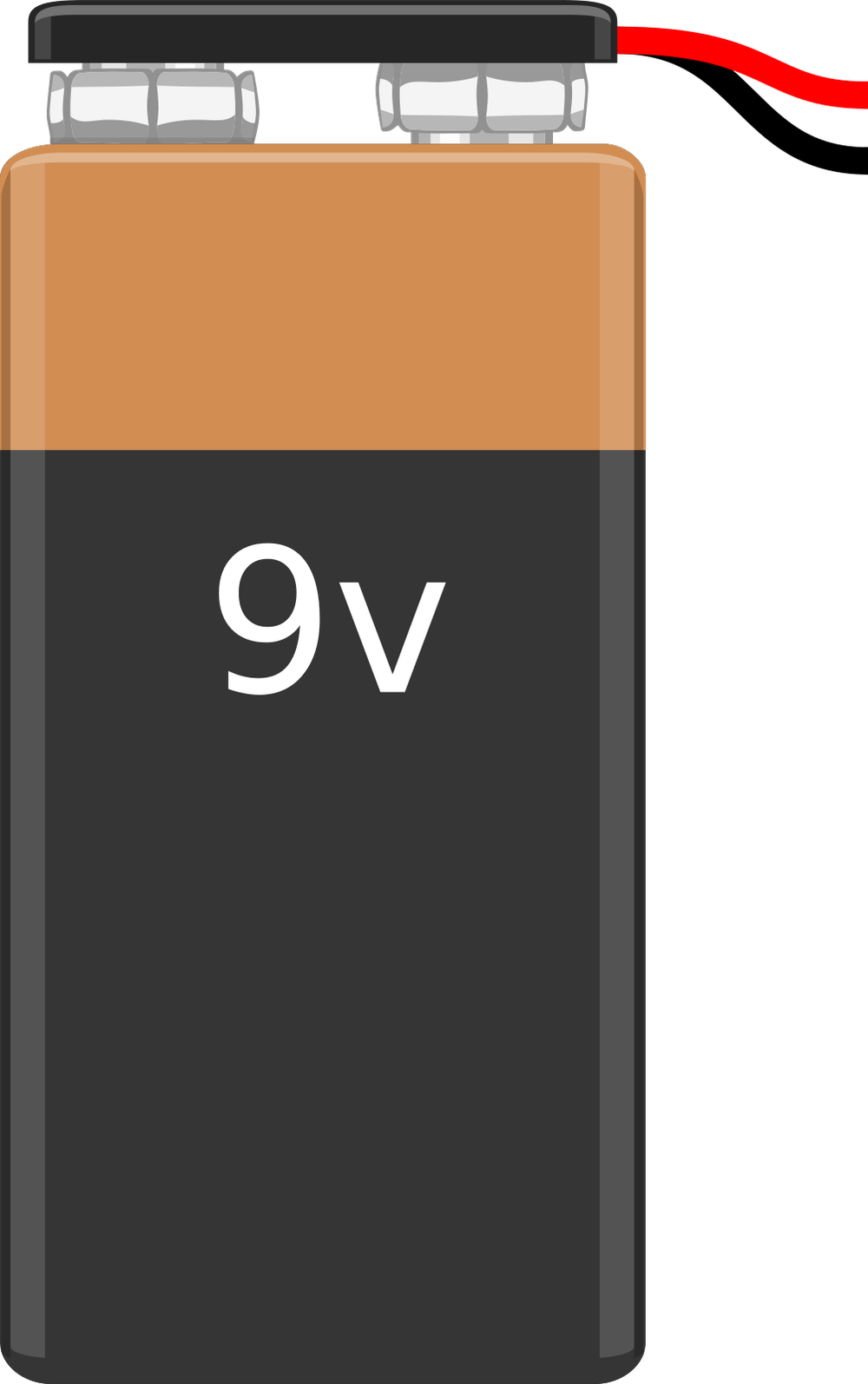

The 9V Battery (Manufacturer: LIb, Part ID: 9V) is a compact and reliable power source that provides a nominal voltage of 9 volts. It is widely used in portable electronic devices, small appliances, and DIY electronics projects. Its compact size and ease of use make it a popular choice for powering circuits, sensors, and microcontrollers.

• Powering portable electronic devices (e.g., smoke detectors, remote controls)
• Supplying power to breadboard circuits and prototyping projects
• Backup power for small devices
• Used in educational and hobbyist electronics projects, including Arduino-based systems

The following table outlines the key technical details of the LIb 9V Battery:

The 9V battery has two terminals: a positive terminal and a negative terminal. These terminals are typically located on the top of the battery in a snap connector format.

1. Connect the Terminals: Use a 9V battery snap connector to securely attach the battery to your circuit. Ensure the red wire connects to the positive terminal and the black wire connects to the negative terminal.
2. Powering a Circuit: Connect the positive terminal to the VCC or power input of your circuit and the negative terminal to the ground (GND).
3. Voltage Regulation: If your circuit requires a lower voltage (e.g., 5V), use a voltage regulator (e.g., LM7805) to step down the voltage safely.

• Polarity: Always ensure correct polarity when connecting the battery to avoid damaging your circuit.
• Battery Life: Monitor the battery's charge level to prevent unexpected power loss. Replace or recharge the battery as needed.
• Storage: Store the battery in a cool, dry place when not in use to extend its shelf life.
• Disposal: Dispose of used batteries responsibly, following local recycling guidelines.

The 9V battery can be used to power an Arduino UNO via its DC barrel jack or VIN pin. Below is an example circuit and code to blink an LED using a 9V battery:

1. Connect the positive terminal of the 9V battery to the Arduino's DC barrel jack or VIN pin.
2. Connect the negative terminal of the 9V battery to the Arduino's GND pin.
3. Connect an LED to pin 13 of the Arduino with a 220-ohm resistor in series.

// Blink an LED connected to pin 13
// Ensure the 9V battery is connected to the Arduino's power input

void setup() {
  pinMode(13, OUTPUT); // Set pin 13 as an output
}

void loop() {
  digitalWrite(13, HIGH); // Turn the LED on
  delay(1000);            // Wait for 1 second
  digitalWrite(13, LOW);  // Turn the LED off
  delay(1000);            // Wait for 1 second
}

1. Circuit Not Powering On

   • Cause: Incorrect polarity or loose connections.
   • Solution: Double-check the battery connections and ensure proper polarity.

2. Battery Drains Quickly

   • Cause: High current draw from the circuit or a faulty battery.
   • Solution: Use a fresh battery or check the circuit's current requirements.

3. Overheating

   • Cause: Short circuit or excessive current draw.
   • Solution: Disconnect the battery immediately and inspect the circuit for shorts.

Q: Can I recharge a 9V battery?
A: Only rechargeable 9V batteries (e.g., NiMH or Li-ion) can be recharged. Standard alkaline 9V batteries are not rechargeable.

Q: How do I know when the battery is depleted?
A: A multimeter can be used to measure the voltage. If the voltage drops below 7V, the battery is likely depleted.

Q: Can I use a 9V battery to power a 5V device?
A: Yes, but you must use a voltage regulator (e.g., LM7805) to step down the voltage to 5V safely.
