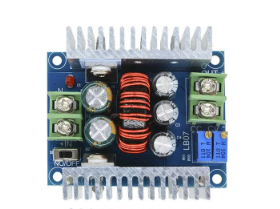

Image of stepdown 20a
Cirkit Designer LogoDesign with stepdown 20a in Cirkit Designer

Introduction

The Stepdown 20A is a high-power DC-DC buck converter designed to reduce input voltage to a lower, stable output voltage while supporting a maximum current of 20 amps. This component is widely used in power supply applications where efficient voltage conversion is critical, such as in battery-powered systems, automotive electronics, and industrial equipment. Its robust design ensures reliable operation in high-current scenarios, making it ideal for powering devices like motors, LED strips, and microcontrollers.

Explore Projects Built with stepdown 20a

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Battery-Powered UPS with Step-Down Buck Converter and BMS
Image of Mini ups: A project utilizing stepdown 20a in a practical application
This circuit is a power management system that steps down a 240V AC input to a lower DC voltage using a buck converter, which then powers a 40W UPS. The UPS is controlled by a rocker switch and is backed up by a battery management system (BMS) connected to three 3.7V batteries in series, ensuring continuous power supply.
Cirkit Designer LogoOpen Project in Cirkit Designer
USB Power Supply with Overcurrent Protection
Image of USB Charging port: A project utilizing stepdown 20a in a practical application
This circuit is designed to step down voltage from a 12V battery to a lower voltage suitable for USB devices. It includes a buck converter connected to the battery through a fuse and fuse holder for overcurrent protection. The output of the buck converter is connected to a USB female port, providing a regulated power supply for USB-powered devices.
Cirkit Designer LogoOpen Project in Cirkit Designer
AC to DC Power Supply with Transformer and Bridge Rectifier
Image of BRIDGE RECTIFIER: A project utilizing stepdown 20a in a practical application
This circuit is a basic AC to DC power supply that steps down 220V AC to a lower voltage using a transformer, rectifies it to DC using a bridge rectifier made of diodes, and smooths the output with an electrolytic capacitor. A rocker switch is used to turn the power supply on and off.
Cirkit Designer LogoOpen Project in Cirkit Designer
Battery-Powered DC-DC Converter System for Multi-Voltage Power Distribution
Image of test 1 ih: A project utilizing stepdown 20a in a practical application
This circuit converts a 38.5V battery output to multiple lower voltage levels using a series of DC-DC converters and a power module. It includes an emergency stop switch for safety and distributes power to various components such as a relay module, USB ports, and a bus servo adaptor.
Cirkit Designer LogoOpen Project in Cirkit Designer

Explore Projects Built with stepdown 20a

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Image of Mini ups: A project utilizing stepdown 20a in a practical application
Battery-Powered UPS with Step-Down Buck Converter and BMS
This circuit is a power management system that steps down a 240V AC input to a lower DC voltage using a buck converter, which then powers a 40W UPS. The UPS is controlled by a rocker switch and is backed up by a battery management system (BMS) connected to three 3.7V batteries in series, ensuring continuous power supply.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of USB Charging port: A project utilizing stepdown 20a in a practical application
USB Power Supply with Overcurrent Protection
This circuit is designed to step down voltage from a 12V battery to a lower voltage suitable for USB devices. It includes a buck converter connected to the battery through a fuse and fuse holder for overcurrent protection. The output of the buck converter is connected to a USB female port, providing a regulated power supply for USB-powered devices.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of BRIDGE RECTIFIER: A project utilizing stepdown 20a in a practical application
AC to DC Power Supply with Transformer and Bridge Rectifier
This circuit is a basic AC to DC power supply that steps down 220V AC to a lower voltage using a transformer, rectifies it to DC using a bridge rectifier made of diodes, and smooths the output with an electrolytic capacitor. A rocker switch is used to turn the power supply on and off.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of test 1 ih: A project utilizing stepdown 20a in a practical application
Battery-Powered DC-DC Converter System for Multi-Voltage Power Distribution
This circuit converts a 38.5V battery output to multiple lower voltage levels using a series of DC-DC converters and a power module. It includes an emergency stop switch for safety and distributes power to various components such as a relay module, USB ports, and a bus servo adaptor.
Cirkit Designer LogoOpen Project in Cirkit Designer

Technical Specifications

  • Input Voltage Range: 6V to 40V DC
  • Output Voltage Range: 1.2V to 36V DC (adjustable via potentiometer)
  • Maximum Output Current: 20A (with proper heat dissipation)
  • Efficiency: Up to 95% (depending on input/output voltage and load)
  • Switching Frequency: 150 kHz
  • Operating Temperature: -40°C to +85°C
  • Protection Features: Overcurrent protection, thermal shutdown, and short-circuit protection

Pin Configuration and Descriptions

Pin Name Description
VIN+ Positive input voltage terminal (connect to the higher voltage source).
VIN- Negative input voltage terminal (connect to the ground of the power source).
VOUT+ Positive output voltage terminal (connect to the load).
VOUT- Negative output voltage terminal (connect to the ground of the load).
Potentiometer Adjustable knob to set the desired output voltage.

Usage Instructions

How to Use the Stepdown 20A in a Circuit

  1. Connect the Input Voltage:

    • Attach the positive terminal of your power source to the VIN+ pin.
    • Connect the ground of your power source to the VIN- pin.
    • Ensure the input voltage is within the specified range (6V to 40V DC).
  2. Set the Output Voltage:

    • Use the onboard potentiometer to adjust the output voltage.
    • Turn the potentiometer clockwise to increase the output voltage or counterclockwise to decrease it.
    • Use a multimeter to measure the output voltage across the VOUT+ and VOUT- pins while adjusting.
  3. Connect the Load:

    • Attach the positive terminal of your load to the VOUT+ pin.
    • Connect the ground of your load to the VOUT- pin.
  4. Ensure Proper Heat Dissipation:

    • For high-current applications (above 10A), attach a heatsink or active cooling to the module to prevent overheating.
  5. Power On:

    • Once all connections are secure, power on the input source. The module will regulate the voltage to the desired output.

Important Considerations and Best Practices

  • Input Voltage: Always ensure the input voltage is higher than the desired output voltage.
  • Current Limitations: Do not exceed the 20A current limit. Use appropriate wiring and connectors to handle high currents.
  • Heat Management: For continuous high-current operation, ensure adequate cooling to prevent thermal shutdown.
  • Polarity: Double-check the polarity of all connections to avoid damaging the module.

Example: Using the Stepdown 20A with an Arduino UNO

The Stepdown 20A can be used to power an Arduino UNO by stepping down a 12V battery to 5V. Here's an example:

  1. Set the output voltage to 5V using the potentiometer.
  2. Connect the VOUT+ pin to the Arduino's 5V pin.
  3. Connect the VOUT- pin to the Arduino's GND pin.

Sample Arduino Code

// Example code to blink an LED using an Arduino UNO powered by the Stepdown 20A
// Ensure the Stepdown 20A is set to output 5V before connecting to the Arduino.

const int ledPin = 13; // Pin connected to the onboard LED

void setup() {
  pinMode(ledPin, OUTPUT); // Set the LED pin as an output
}

void loop() {
  digitalWrite(ledPin, HIGH); // Turn the LED on
  delay(1000);                // Wait for 1 second
  digitalWrite(ledPin, LOW);  // Turn the LED off
  delay(1000);                // Wait for 1 second
}

Troubleshooting and FAQs

Common Issues

  1. No Output Voltage:

    • Cause: Incorrect wiring or input voltage below the minimum requirement.
    • Solution: Verify all connections and ensure the input voltage is within the 6V to 40V range.
  2. Overheating:

    • Cause: High current draw without proper cooling.
    • Solution: Attach a heatsink or use active cooling (e.g., a fan) to dissipate heat.
  3. Output Voltage Not Stable:

    • Cause: Load exceeds the module's capacity or input voltage is unstable.
    • Solution: Reduce the load or use a stable power source.
  4. Module Not Working After Connection:

    • Cause: Reverse polarity or short circuit.
    • Solution: Check polarity before powering on. Replace the module if damaged.

FAQs

  • Can I use the Stepdown 20A to charge batteries?

    • Yes, but ensure the output voltage matches the battery's charging voltage and use a current-limiting circuit if necessary.
  • What is the maximum power output of the module?

    • The maximum power output is approximately 720W (36V × 20A), but ensure proper cooling for high-power applications.
  • Can I use this module with AC input?

    • No, the Stepdown 20A only works with DC input. Use a rectifier and filter circuit to convert AC to DC before connecting.
  • How do I know if the module is overheating?

    • The module may shut down automatically or reduce output if it overheats. Use a temperature probe to monitor its surface temperature.

By following this documentation, you can effectively integrate the Stepdown 20A into your projects and ensure reliable operation.
