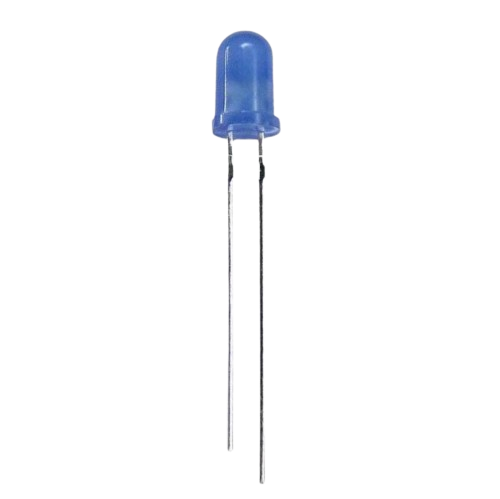

Image of Blue LED
Cirkit Designer LogoDesign with Blue LED in Cirkit Designer

Introduction

The Blue LED (Manufacturer: Blue LED, Part ID: LX12) is a light-emitting diode that emits blue light when an electric current passes through it. This component is widely used in various applications, including status indicators, displays, decorative lighting, and electronic projects. Its vibrant blue light makes it a popular choice for both functional and aesthetic purposes.

Explore Projects Built with Blue LED

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Triple Color Pushbutton-Controlled LED Circuit
Image of rgb: A project utilizing Blue LED in a practical application
This is a simple pushbutton-controlled LED circuit with three LEDs of different colors (red, green, and blue). Each LED is connected in series with a 1000 Ohm resistor and can be individually lit by pressing its corresponding pushbutton, which completes the circuit to a 9V battery.
Cirkit Designer LogoOpen Project in Cirkit Designer
Battery-Powered LED Array with Rocker Switch Control
Image of yk: A project utilizing Blue LED in a practical application
This circuit consists of four green LEDs connected in parallel, powered by a 9V battery. A rocker switch is used to control the power to the LEDs, allowing them to be turned on or off simultaneously.
Cirkit Designer LogoOpen Project in Cirkit Designer
Arduino UNO Bluetooth-Controlled LED System
Image of Tian: A project utilizing Blue LED in a practical application
This circuit features an Arduino UNO microcontroller connected to an HC-06 Bluetooth module and two LEDs (blue and green). The Arduino receives commands via Bluetooth to control the LEDs, turning them on or off based on the received data.
Cirkit Designer LogoOpen Project in Cirkit Designer
Blue LED Array Project
Image of FYP: A project utilizing Blue LED in a practical application
The circuit consists of two groups of four blue LEDs wired in parallel. Each group shares a common cathode and a common anode, indicating that they are likely to be controlled together. There are no microcontrollers or other control circuitry included in the provided information, suggesting that the LEDs are intended to be powered directly and will illuminate simultaneously when a voltage is applied across the common anode and cathode of each group.
Cirkit Designer LogoOpen Project in Cirkit Designer

Explore Projects Built with Blue LED

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Image of rgb: A project utilizing Blue LED in a practical application
Triple Color Pushbutton-Controlled LED Circuit
This is a simple pushbutton-controlled LED circuit with three LEDs of different colors (red, green, and blue). Each LED is connected in series with a 1000 Ohm resistor and can be individually lit by pressing its corresponding pushbutton, which completes the circuit to a 9V battery.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of yk: A project utilizing Blue LED in a practical application
Battery-Powered LED Array with Rocker Switch Control
This circuit consists of four green LEDs connected in parallel, powered by a 9V battery. A rocker switch is used to control the power to the LEDs, allowing them to be turned on or off simultaneously.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Tian: A project utilizing Blue LED in a practical application
Arduino UNO Bluetooth-Controlled LED System
This circuit features an Arduino UNO microcontroller connected to an HC-06 Bluetooth module and two LEDs (blue and green). The Arduino receives commands via Bluetooth to control the LEDs, turning them on or off based on the received data.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of FYP: A project utilizing Blue LED in a practical application
Blue LED Array Project
The circuit consists of two groups of four blue LEDs wired in parallel. Each group shares a common cathode and a common anode, indicating that they are likely to be controlled together. There are no microcontrollers or other control circuitry included in the provided information, suggesting that the LEDs are intended to be powered directly and will illuminate simultaneously when a voltage is applied across the common anode and cathode of each group.
Cirkit Designer LogoOpen Project in Cirkit Designer

Technical Specifications

Below are the key technical details for the Blue LED (LX12):

Parameter Value
Forward Voltage (Vf) 3.0V - 3.4V
Forward Current (If) 20mA (typical)
Maximum Current (Imax) 30mA
Wavelength 465nm - 470nm (blue light)
Viewing Angle 20° - 30°
Power Dissipation 100mW (maximum)
Operating Temperature -40°C to +85°C
Storage Temperature -40°C to +100°C

Pin Configuration and Descriptions

The Blue LED has two pins:

Pin Description
Anode (+) The longer pin, connected to the positive terminal.
Cathode (-) The shorter pin, connected to the negative terminal.

Note: The flat edge on the LED casing corresponds to the cathode (-) pin.

Usage Instructions

How to Use the Blue LED in a Circuit

  1. Determine the Resistor Value: To prevent damage, always use a current-limiting resistor in series with the LED. Use the formula below to calculate the resistor value: [ R = \frac{V_{supply} - V_f}{I_f} ]

    • (V_{supply}): Supply voltage
    • (V_f): Forward voltage of the LED (3.0V - 3.4V)
    • (I_f): Desired forward current (typically 20mA or 0.02A)

    For example, if (V_{supply} = 5V) and (V_f = 3.2V), the resistor value is: [ R = \frac{5V - 3.2V}{0.02A} = 90\Omega ] Use the nearest standard resistor value (e.g., 100Ω).

  2. Connect the LED:

    • Connect the anode (+) to the positive terminal of the power supply through the resistor.
    • Connect the cathode (-) to the ground (GND).
  3. Power the Circuit: Apply the appropriate voltage to the circuit. The LED will emit blue light.

Important Considerations and Best Practices

  • Polarity Matters: Ensure the anode and cathode are connected correctly. Reversing the polarity may damage the LED.
  • Avoid Overcurrent: Exceeding the maximum current (30mA) can permanently damage the LED.
  • Use a Resistor: Always use a current-limiting resistor to protect the LED.
  • Heat Management: While the LED generates minimal heat, ensure proper ventilation in high-power applications.

Example: Connecting the Blue LED to an Arduino UNO

Below is an example of how to connect and control the Blue LED using an Arduino UNO:

Circuit Setup

  • Connect the anode (+) of the LED to a 220Ω resistor.
  • Connect the other end of the resistor to digital pin 9 on the Arduino.
  • Connect the cathode (-) of the LED to the GND pin on the Arduino.

Arduino Code

// Blue LED Example with Arduino UNO
// This code blinks the Blue LED connected to pin 9 every second.

const int ledPin = 9; // Define the pin connected to the LED

void setup() {
  pinMode(ledPin, OUTPUT); // Set pin 9 as an output
}

void loop() {
  digitalWrite(ledPin, HIGH); // Turn the LED on
  delay(1000);               // Wait for 1 second
  digitalWrite(ledPin, LOW);  // Turn the LED off
  delay(1000);               // Wait for 1 second
}

Note: The 220Ω resistor is used to limit the current to a safe level for the LED.

Troubleshooting and FAQs

Common Issues

  1. LED Does Not Light Up:

    • Cause: Incorrect polarity.

    • Solution: Ensure the anode (+) is connected to the positive terminal and the cathode (-) to the ground.

    • Cause: No current-limiting resistor or incorrect resistor value.

    • Solution: Verify the resistor value using the formula provided above.

  2. LED Flickers or is Dim:

    • Cause: Insufficient current or unstable power supply.
    • Solution: Check the power supply voltage and ensure the resistor value is appropriate.
  3. LED Burns Out Quickly:

    • Cause: Excessive current.
    • Solution: Use a resistor to limit the current to 20mA.

FAQs

  • Q: Can I connect the Blue LED directly to a 3.3V power supply without a resistor?
    A: No, even at 3.3V, a resistor is required to limit the current and prevent damage to the LED.

  • Q: What happens if I reverse the polarity of the LED?
    A: The LED will not light up. Prolonged reverse connection may damage the LED.

  • Q: Can I use the Blue LED with a 12V power supply?
    A: Yes, but you must use an appropriate resistor to limit the current. For example, with (V_{supply} = 12V) and (V_f = 3.2V), the resistor value is: [ R = \frac{12V - 3.2V}{0.02A} = 440\Omega ] Use the nearest standard resistor value (e.g., 470Ω).

By following these guidelines, you can effectively use the Blue LED (LX12) in your projects and ensure its longevity.
