How to Use Round Speaker 8Ω 0.5W: Examples, Pinouts, and Specs

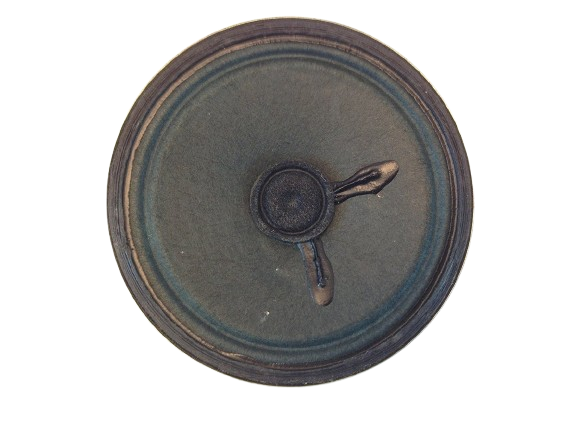

The Round Speaker 8Ω 0.5W by Oliver Lodge (Part ID: Speaker) is a compact and efficient audio output device designed to convert electrical signals into sound. With an impedance of 8 ohms and a power rating of 0.5 watts, this speaker is ideal for low-power audio applications. Its round design makes it suitable for integration into a variety of enclosures and devices.

• Portable audio devices
• DIY electronics projects
• Alarm systems and buzzers
• Educational kits and prototyping
• Embedded systems requiring sound output

Below are the key technical details for the Round Speaker 8Ω 0.5W:

The speaker has two solder terminals for electrical connections:

1. Power Requirements: Ensure the audio amplifier or signal source does not exceed the speaker's power rating of 0.5W. Overpowering the speaker may cause damage.
2. Connection:
   • Solder wires to the positive (+) and negative (-) terminals of the speaker.
   • Connect the positive terminal to the positive output of the audio amplifier or signal source.
   • Connect the negative terminal to the ground or negative output of the audio source.
3. Mounting: Secure the speaker in an enclosure or mounting bracket to prevent vibration and improve sound quality.
4. Amplification: Use an audio amplifier compatible with an 8Ω load to drive the speaker effectively.

• Impedance Matching: Ensure the amplifier or audio source is designed to drive an 8Ω load. Mismatched impedance can lead to poor performance or damage.
• Power Handling: Do not exceed the 0.5W power rating to avoid damaging the speaker.
• Frequency Response: The speaker is optimized for frequencies between 200 Hz and 10 kHz. For full-range audio, consider pairing it with a subwoofer or tweeter.
• Environmental Factors: Avoid exposing the speaker to moisture, dust, or extreme temperatures, as these can degrade performance.

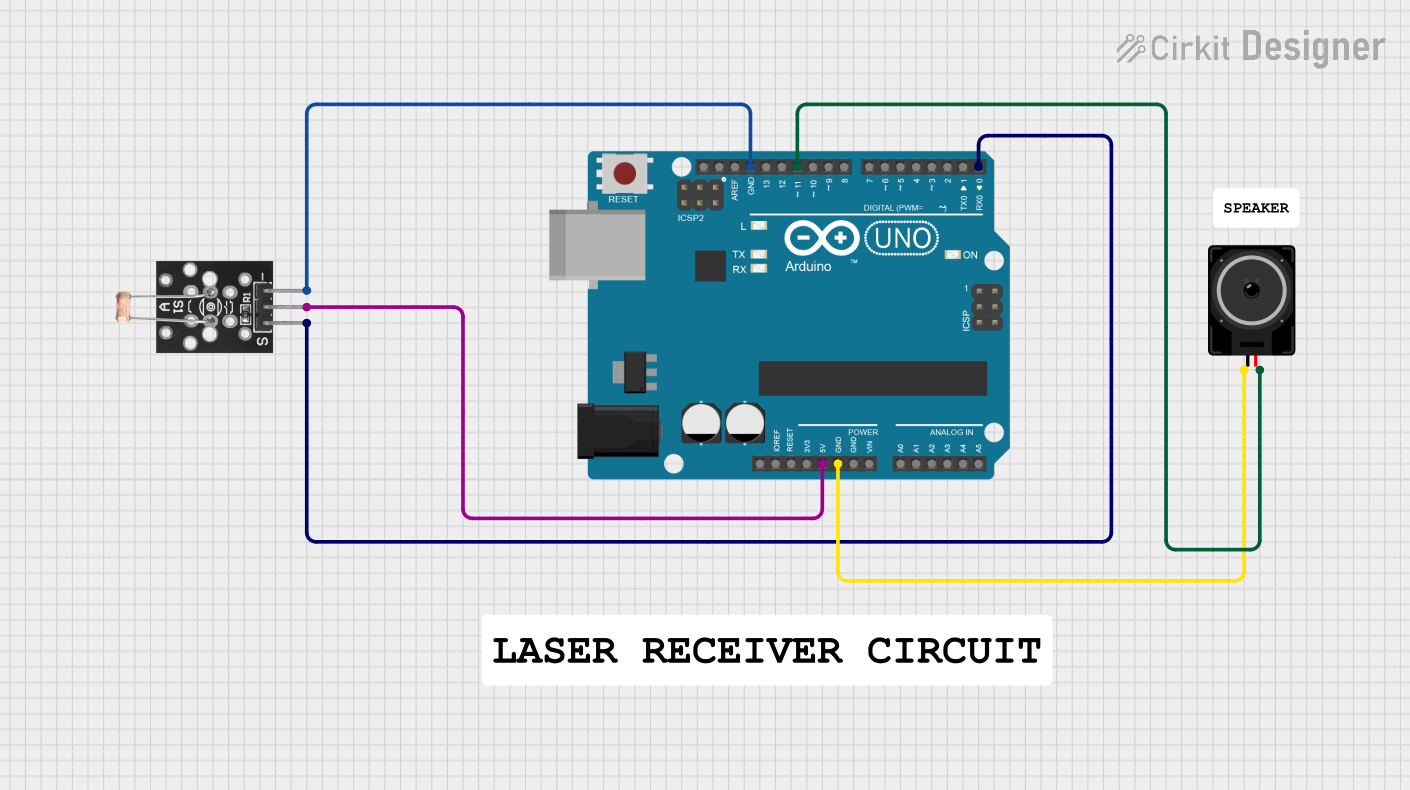

The Round Speaker 8Ω 0.5W can be used with an Arduino UNO to generate simple tones using the tone() function. Below is an example circuit and code:

1. Connect the positive terminal of the speaker to a 100Ω resistor.
2. Connect the other end of the resistor to Arduino pin 9.
3. Connect the negative terminal of the speaker to the Arduino GND pin.

// Example code to generate tones using the Round Speaker 8Ω 0.5W
// Connect the speaker to pin 9 via a 100Ω resistor

void setup() {
  // No setup required for tone generation
}

void loop() {
  tone(9, 440); // Play a 440 Hz tone (A4 note)
  delay(1000);  // Wait for 1 second
  noTone(9);    // Stop the tone
  delay(1000);  // Wait for 1 second
}

Note: The 100Ω resistor is used to limit current and protect the Arduino pin.

1. No Sound Output:

   • Verify the connections to the speaker terminals.
   • Ensure the audio source or amplifier is functioning correctly.
   • Check that the power supplied to the speaker does not exceed 0.5W.

2. Distorted Sound:

   • Ensure the amplifier is not overdriving the speaker.
   • Check for loose connections or damaged wires.
   • Verify that the audio signal is within the speaker's frequency response range (200 Hz – 10 kHz).

3. Low Volume:

   • Confirm that the amplifier is providing sufficient power (but not exceeding 0.5W).
   • Check for impedance mismatches between the speaker and amplifier.

4. Speaker Not Working with Arduino:

   • Ensure the resistor is properly connected to limit current.
   • Verify that the Arduino pin is correctly programmed and functioning.

Q: Can I use this speaker without an amplifier?
A: Yes, but the sound output will be very low. It is recommended to use an amplifier for optimal performance.

Q: Is this speaker waterproof?
A: No, the speaker is not waterproof. Avoid exposing it to moisture or liquids.

Q: Can I use this speaker for frequencies below 200 Hz?
A: The speaker is not optimized for frequencies below 200 Hz. For better performance at lower frequencies, consider using a subwoofer.

Q: What is the maximum voltage I can apply to this speaker?
A: The maximum voltage depends on the power rating and impedance. For a 0.5W, 8Ω speaker, the maximum voltage is approximately 2V RMS.

By following this documentation, you can effectively integrate the Round Speaker 8Ω 0.5W into your projects and ensure reliable performance.
