Cirkit Designer Logo
Cirkit Designer
Your all-in-one circuit design IDE
Home /
Component Documentation

How to Use MP1584EN 5pcs Mini 5V Buck Converter Board - 5-30V to 5V, 1.8A Output, Small Size, Black: Examples, Pinouts, and Specs

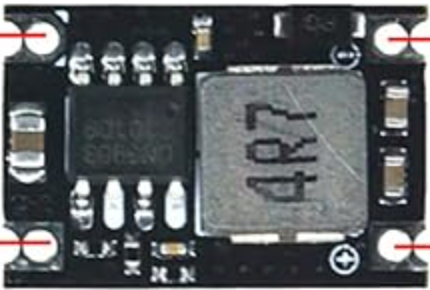

Image of MP1584EN 5pcs Mini 5V Buck Converter Board - 5-30V to 5V, 1.8A Output, Small Size, Black
Cirkit Designer LogoDesign with MP1584EN 5pcs Mini 5V Buck Converter Board - 5-30V to 5V, 1.8A Output, Small Size, Black in Cirkit Designer

Introduction

The MP1584EN Mini 5V Buck Converter Board is a compact and efficient DC-DC step-down voltage regulator. It is designed to convert input voltages ranging from 5V to 30V into a stable 5V output, with a maximum output current of 1.8A. This module is widely used in powering small electronic devices, microcontrollers, sensors, and other low-power components. Its small size and high efficiency make it an excellent choice for portable and space-constrained applications.

Explore Projects Built with MP1584EN 5pcs Mini 5V Buck Converter Board - 5-30V to 5V, 1.8A Output, Small Size, Black

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Multi-Stage Voltage Regulation and Indicator LED Circuit
Image of Subramanyak_Power_Circuit: A project utilizing MP1584EN 5pcs Mini 5V Buck Converter Board - 5-30V to 5V, 1.8A Output, Small Size, Black in a practical application
This circuit is designed for power management, featuring buck and boost converters for voltage adjustment, and linear regulators for stable voltage output. It includes LEDs for status indication, and terminal blocks for external connections.
Cirkit Designer LogoOpen Project in Cirkit Designer
USB Power Supply with Overcurrent Protection
Image of USB Charging port: A project utilizing MP1584EN 5pcs Mini 5V Buck Converter Board - 5-30V to 5V, 1.8A Output, Small Size, Black in a practical application
This circuit is designed to step down voltage from a 12V battery to a lower voltage suitable for USB devices. It includes a buck converter connected to the battery through a fuse and fuse holder for overcurrent protection. The output of the buck converter is connected to a USB female port, providing a regulated power supply for USB-powered devices.
Cirkit Designer LogoOpen Project in Cirkit Designer
Battery-Powered 18650 Li-ion Charger with USB Output and Adjustable Voltage Regulator
Image of Breadboard: A project utilizing MP1584EN 5pcs Mini 5V Buck Converter Board - 5-30V to 5V, 1.8A Output, Small Size, Black in a practical application
This circuit is a battery management and power supply system that uses three 3.7V batteries connected to a 3S 10A Li-ion 18650 Charger Protection Board Module for balanced charging and protection. The system includes a TP4056 Battery Charging Protection Module for additional charging safety, a Step Up Boost Power Converter to regulate and boost the voltage, and a USB regulator to provide a stable 5V output, controlled by a push switch.
Cirkit Designer LogoOpen Project in Cirkit Designer
Dual Motor Control Circuit with Directional Switching and Voltage Regulation
Image of Pencuci Kipas: A project utilizing MP1584EN 5pcs Mini 5V Buck Converter Board - 5-30V to 5V, 1.8A Output, Small Size, Black in a practical application
This circuit features a 12V battery connected through a rocker switch to two buck converters, one of which steps down the voltage to power two DC mini metal gear motors, and the other is connected to a directional switch that controls a third DC mini metal gear motor. The XL4015 5A DC Buck Step-down converter's output is connected to two motors, allowing them to run at a reduced voltage, while the other buck converter's output is routed through a directional switch to control the direction of the third motor.
Cirkit Designer LogoOpen Project in Cirkit Designer

Explore Projects Built with MP1584EN 5pcs Mini 5V Buck Converter Board - 5-30V to 5V, 1.8A Output, Small Size, Black

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Image of Subramanyak_Power_Circuit: A project utilizing MP1584EN 5pcs Mini 5V Buck Converter Board - 5-30V to 5V, 1.8A Output, Small Size, Black in a practical application
Multi-Stage Voltage Regulation and Indicator LED Circuit
This circuit is designed for power management, featuring buck and boost converters for voltage adjustment, and linear regulators for stable voltage output. It includes LEDs for status indication, and terminal blocks for external connections.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of USB Charging port: A project utilizing MP1584EN 5pcs Mini 5V Buck Converter Board - 5-30V to 5V, 1.8A Output, Small Size, Black in a practical application
USB Power Supply with Overcurrent Protection
This circuit is designed to step down voltage from a 12V battery to a lower voltage suitable for USB devices. It includes a buck converter connected to the battery through a fuse and fuse holder for overcurrent protection. The output of the buck converter is connected to a USB female port, providing a regulated power supply for USB-powered devices.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Breadboard: A project utilizing MP1584EN 5pcs Mini 5V Buck Converter Board - 5-30V to 5V, 1.8A Output, Small Size, Black in a practical application
Battery-Powered 18650 Li-ion Charger with USB Output and Adjustable Voltage Regulator
This circuit is a battery management and power supply system that uses three 3.7V batteries connected to a 3S 10A Li-ion 18650 Charger Protection Board Module for balanced charging and protection. The system includes a TP4056 Battery Charging Protection Module for additional charging safety, a Step Up Boost Power Converter to regulate and boost the voltage, and a USB regulator to provide a stable 5V output, controlled by a push switch.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Pencuci Kipas: A project utilizing MP1584EN 5pcs Mini 5V Buck Converter Board - 5-30V to 5V, 1.8A Output, Small Size, Black in a practical application
Dual Motor Control Circuit with Directional Switching and Voltage Regulation
This circuit features a 12V battery connected through a rocker switch to two buck converters, one of which steps down the voltage to power two DC mini metal gear motors, and the other is connected to a directional switch that controls a third DC mini metal gear motor. The XL4015 5A DC Buck Step-down converter's output is connected to two motors, allowing them to run at a reduced voltage, while the other buck converter's output is routed through a directional switch to control the direction of the third motor.
Cirkit Designer LogoOpen Project in Cirkit Designer

Common Applications

  • Powering microcontrollers (e.g., Arduino, ESP32, Raspberry Pi Pico)
  • Supplying power to sensors and modules in IoT projects
  • Battery-powered devices
  • DIY electronics and prototyping
  • Voltage regulation in automotive or industrial systems

Technical Specifications

Below are the key technical details of the MP1584EN Mini 5V Buck Converter Board:

Parameter Value
Input Voltage Range 5V to 30V
Output Voltage 5V (fixed)
Maximum Output Current 1.8A
Efficiency Up to 92% (depending on load)
Switching Frequency 1.5MHz
Operating Temperature -40°C to +85°C
Dimensions 22mm x 17mm x 4mm
Weight ~2g

Pin Configuration and Descriptions

The MP1584EN module has four pins for input and output connections:

Pin Label Description
1 VIN Positive input voltage (5V to 30V)
2 GND Ground connection for input voltage
3 VOUT Positive output voltage (fixed 5V)
4 GND Ground connection for output voltage

Usage Instructions

How to Use the MP1584EN in a Circuit

  1. Connect Input Voltage:

    • Connect the positive terminal of your power source (5V to 30V) to the VIN pin.
    • Connect the ground terminal of your power source to the GND pin.
  2. Connect Output Load:

    • Connect the positive terminal of your load (e.g., microcontroller, sensor) to the VOUT pin.
    • Connect the ground terminal of your load to the GND pin.
  3. Verify Connections:

    • Double-check all connections to ensure proper polarity and avoid short circuits.
  4. Power On:

    • Turn on the power source. The module will regulate the input voltage to a stable 5V output.

Important Considerations and Best Practices

  • Input Voltage Range: Ensure the input voltage is within the specified range (5V to 30V). Exceeding this range may damage the module.
  • Heat Dissipation: At higher loads (close to 1.8A), the module may generate heat. Consider adding a heatsink or ensuring proper ventilation.
  • Load Current: Do not exceed the maximum output current of 1.8A to prevent overheating or damage.
  • Polarity: Always connect the input and output terminals with the correct polarity to avoid damaging the module.

Example: Using MP1584EN with Arduino UNO

The MP1584EN can be used to power an Arduino UNO from a 12V power source. Below is an example circuit and Arduino code:

Circuit Connections

  • Connect the 12V power source to the VIN and GND pins of the MP1584EN.
  • Connect the VOUT pin of the MP1584EN to the 5V pin of the Arduino UNO.
  • Connect the GND pin of the MP1584EN to the GND pin of the Arduino UNO.

Arduino Code Example

// Example code to blink an LED connected to pin 13 of Arduino UNO
// Ensure the Arduino is powered via the MP1584EN module

void setup() {
  pinMode(13, OUTPUT); // Set pin 13 as an output
}

void loop() {
  digitalWrite(13, HIGH); // Turn the LED on
  delay(1000);            // Wait for 1 second
  digitalWrite(13, LOW);  // Turn the LED off
  delay(1000);            // Wait for 1 second
}

Troubleshooting and FAQs

Common Issues and Solutions

  1. No Output Voltage:

    • Cause: Incorrect input voltage or loose connections.
    • Solution: Verify that the input voltage is within the 5V to 30V range and check all connections.
  2. Overheating:

    • Cause: Excessive load current or poor ventilation.
    • Solution: Reduce the load current or add a heatsink to the module.
  3. Output Voltage Fluctuations:

    • Cause: Insufficient input power or unstable input voltage.
    • Solution: Ensure the input power source can supply sufficient current and voltage.
  4. Module Not Working After Connection:

    • Cause: Reverse polarity or input voltage exceeding the maximum limit.
    • Solution: Check the polarity of the connections and ensure the input voltage is within the specified range.

FAQs

Q1: Can I adjust the output voltage of the MP1584EN?
A1: No, this version of the MP1584EN module has a fixed 5V output. For adjustable output, consider using a different variant of the MP1584 module.

Q2: Can I use the MP1584EN to power a Raspberry Pi?
A2: The MP1584EN can provide 5V at up to 1.8A, which is sufficient for some Raspberry Pi models. However, ensure the total current draw of the Raspberry Pi and connected peripherals does not exceed 1.8A.

Q3: Is the module protected against short circuits?
A3: The MP1584EN includes basic protection features, but it is recommended to avoid short circuits to prevent damage.

Q4: Can I use this module in automotive applications?
A4: Yes, the MP1584EN can be used in automotive applications, provided the input voltage remains within the 5V to 30V range.
