How to Use DC Barrel Connector 5.5x2.1mm Male: Examples, Pinouts, and Specs

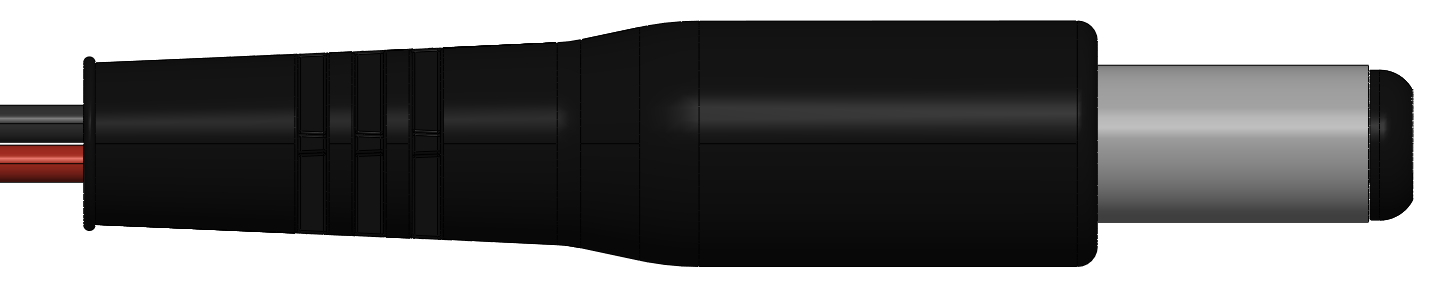

The DC Barrel Connector 5.5x2.1mm Male is a cylindrical connector designed for DC power supply applications. It features a 5.5mm outer diameter and a 2.1mm inner diameter, making it one of the most commonly used connectors for powering electronic devices. This connector is widely used in consumer electronics, prototyping, and DIY projects to connect power adapters to devices such as routers, LED strips, and Arduino boards.

• Powering small electronic devices (e.g., routers, modems, and cameras)
• Connecting DC power adapters to development boards like Arduino or Raspberry Pi
• Supplying power to LED strips and other low-voltage lighting systems
• DIY electronics and prototyping projects

The following table outlines the key technical details of the DC Barrel Connector 5.5x2.1mm Male:

The DC Barrel Connector has two main contact points:

1. Identify Polarity: Ensure that the power source and the device being powered have matching polarity. The center pin is typically positive (+), and the outer shell is negative (-). Verify this with the device's documentation or markings.
2. Soldering: If using the connector in a custom circuit:
   • Strip the wires of your power cable.
   • Solder the positive wire to the center pin terminal.
   • Solder the negative wire to the outer shell terminal.
   • Use heat shrink tubing or electrical tape to insulate the connections.
3. Connect to Device: Insert the male connector into the corresponding female DC jack on the device.
4. Verify Voltage and Current: Ensure the power supply matches the voltage and current requirements of the device to avoid damage.

• Polarity Check: Always double-check the polarity of the connector and the device to prevent reverse polarity damage.
• Voltage and Current Ratings: Do not exceed the voltage and current ratings of the connector to avoid overheating or failure.
• Secure Connections: Ensure the connector is firmly inserted into the female jack to maintain a stable power connection.
• Strain Relief: Use strain relief mechanisms to prevent stress on the solder joints or wires.

The DC Barrel Connector 5.5x2.1mm Male can be used to power an Arduino UNO via its DC power jack. Below is an example of how to connect and use it:

1. Use a 9V or 12V DC power adapter with a 5.5x2.1mm male connector.
2. Plug the connector into the Arduino UNO's DC power jack.
3. Ensure the adapter's voltage and current ratings are within the Arduino's specifications (7-12V DC, 1A or higher).

If you are using the connector in a custom circuit with an Arduino, you can use the following code to test the Arduino's functionality after powering it:

// Simple LED Blink Test for Arduino UNO
// This code blinks the built-in LED on pin 13 to verify power and functionality.

void setup() {
  pinMode(13, OUTPUT); // Set pin 13 as an output for the built-in LED
}

void loop() {
  digitalWrite(13, HIGH); // Turn the LED on
  delay(1000);            // Wait for 1 second
  digitalWrite(13, LOW);  // Turn the LED off
  delay(1000);            // Wait for 1 second
}

1. Loose Connection: The connector may not fit snugly into the female jack.
   • Solution: Ensure the connector matches the size of the female jack (5.5x2.1mm). Replace the connector if it is damaged.
2. Reverse Polarity: The device does not power on or gets damaged.
   • Solution: Verify the polarity of the power supply and the connector before connecting. Use a multimeter to check the polarity if unsure.
3. Overheating: The connector becomes hot during operation.
   • Solution: Ensure the current drawn by the device does not exceed the connector's rating (typically 5A). Use a higher-rated connector if necessary.
4. Intermittent Power: The device powers on and off unexpectedly.
   • Solution: Check for loose solder joints or damaged wires. Re-solder or replace the connector if needed.

Q: Can I use this connector for AC power?
A: No, the DC Barrel Connector is designed specifically for DC power applications. Using it for AC power can result in damage or unsafe operation.

Q: How do I determine the polarity of my power adapter?
A: Most power adapters have a polarity diagram printed on them. The diagram indicates whether the center pin is positive (+) or negative (-).

Q: Can I use this connector for high-power applications?
A: The connector is typically rated for up to 5A and 24V DC. For higher power applications, consider using connectors with higher current and voltage ratings.

Q: Is this connector compatible with all Arduino boards?
A: The DC Barrel Connector 5.5x2.1mm Male is compatible with most Arduino boards that have a DC power jack, such as the Arduino UNO, Mega, and Nano (with an adapter). Always check the board's specifications to confirm compatibility.
