How to Use Battery 7.4V: Examples, Pinouts, and Specs

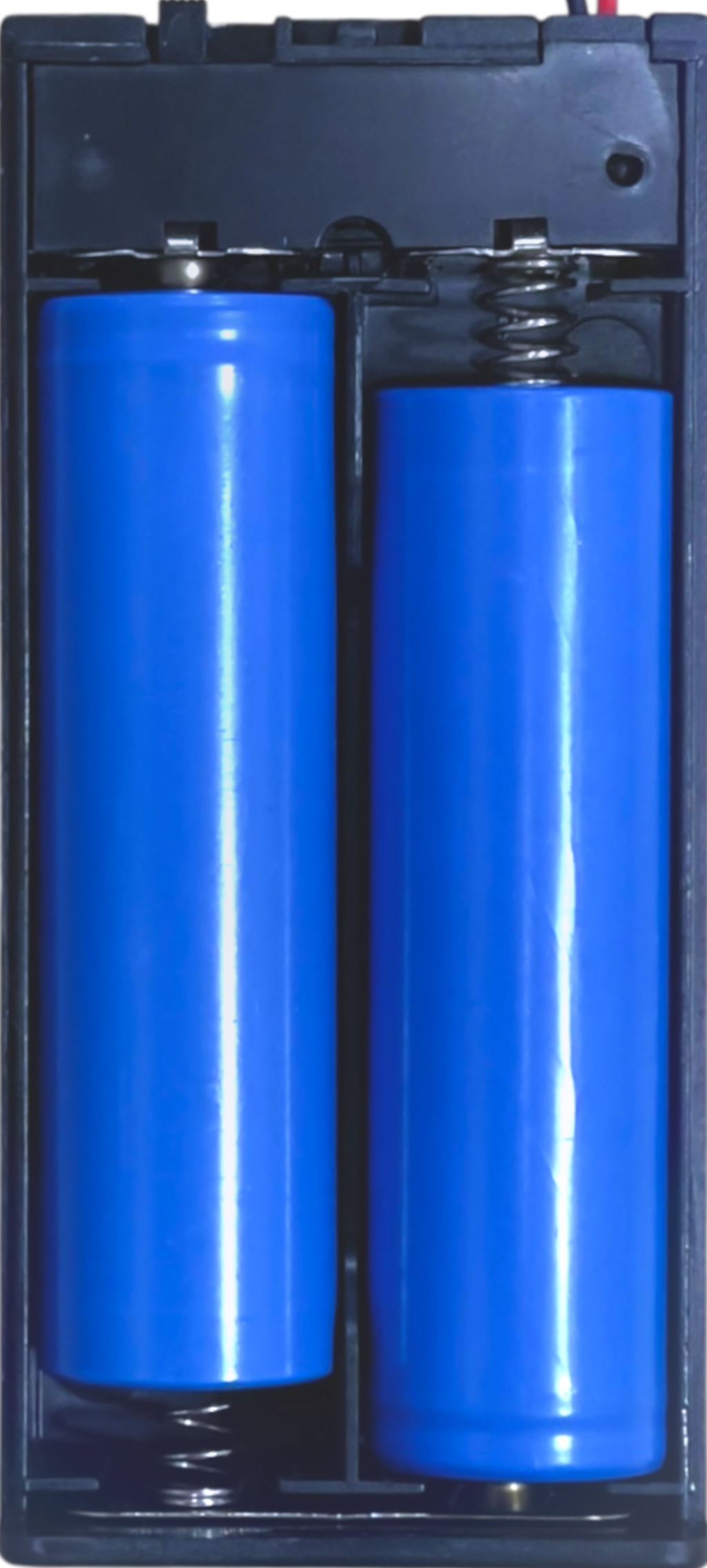

The Battery 7.4V (Manufacturer: 18650, Part ID: 18650 Batteries with Holder Cover) is a rechargeable lithium-ion battery designed to deliver a nominal voltage of 7.4 volts. It is widely used in portable electronic devices, remote-controlled (RC) vehicles, robotics, and other applications requiring a reliable and efficient power source. Its compact size, high energy density, and rechargeable nature make it a popular choice for both hobbyists and professionals.

• Powering RC vehicles, drones, and robotics
• Portable electronic devices such as cameras and handheld tools
• Backup power supplies for small systems
• DIY electronics and Arduino-based projects

The battery typically comes with a holder or connector for easy integration into circuits. Below is the pin configuration for a standard 7.4V battery holder with two terminals:

Note: Ensure proper polarity when connecting the battery to avoid damage to the circuit or the battery.

1. Connection: Connect the positive terminal of the battery to the positive rail of your circuit and the negative terminal to the ground. Use a battery holder or connector for secure and reliable connections.
2. Charging: Use a compatible lithium-ion battery charger with a maximum charging voltage of 8.4V. Avoid overcharging or deep discharging the battery to maintain its lifespan.
3. Load Considerations: Ensure the connected load does not exceed the maximum discharge current of the battery. Use a fuse or current-limiting resistor if necessary.
4. Protection Circuit: For safety, use a Battery Management System (BMS) to prevent overcharging, over-discharging, and short circuits.

• Polarity: Always double-check the polarity before connecting the battery to a circuit.
• Storage: Store the battery in a cool, dry place at a charge level of around 40–60% for long-term storage.
• Safety: Do not puncture, crush, or expose the battery to fire or water.
• Charging: Use only chargers designed for 7.4V lithium-ion batteries to avoid damage or safety hazards.

The 7.4V battery can be used to power an Arduino UNO via the VIN pin. Below is an example of how to connect and use the battery:

1. Connect the positive terminal of the battery to the VIN pin of the Arduino UNO.
2. Connect the negative terminal of the battery to the GND pin of the Arduino UNO.

// Example code to blink an LED using Arduino UNO powered by a 7.4V battery

const int ledPin = 13; // Pin connected to the onboard LED

void setup() {
  pinMode(ledPin, OUTPUT); // Set the LED pin as an output
}

void loop() {
  digitalWrite(ledPin, HIGH); // Turn the LED on
  delay(1000); // Wait for 1 second
  digitalWrite(ledPin, LOW); // Turn the LED off
  delay(1000); // Wait for 1 second
}

Note: Ensure the battery voltage is within the acceptable range for the Arduino UNO (7–12V via VIN).

1. Can I use this battery to power a 5V device?

   • Yes, but you will need a voltage regulator (e.g., LM7805) to step down the voltage to 5V.

2. How do I know when the battery is fully charged?

   • Most chargers have an indicator light that turns green when the battery is fully charged.

3. What happens if I over-discharge the battery?

   • Over-discharging can permanently damage the battery. Use a BMS or low-voltage cutoff circuit to prevent this.

4. Can I connect multiple batteries in series or parallel?

   • Yes, but ensure proper balancing and use a BMS to manage the combined pack safely.

By following these guidelines and best practices, you can safely and effectively use the 7.4V battery in your projects.
