How to Use Green LED: Examples, Pinouts, and Specs

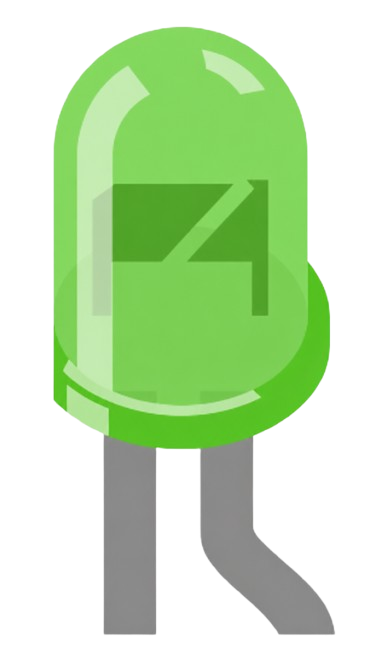

Image of Green LED
Cirkit Designer LogoDesign with Green LED in Cirkit Designer

Introduction

  • A Green LED (Light Emitting Diode) is a semiconductor device that emits green light when an electric current flows through it. The light is produced by electroluminescence, a process where electrons recombine with holes in the diode's material.
  • Common applications include status indicators, displays, decorative lighting, and circuit debugging.

Explore Projects Built with Green LED

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Solar-Powered Green LED Light
Image of Solar Panel : A project utilizing Green LED in a practical application
This circuit consists of a solar panel connected to a green LED. The solar panel provides power to the LED, causing it to light up when sufficient sunlight is available.
Cirkit Designer LogoOpen Project in Cirkit Designer
Battery-Powered LED Array with Rocker Switch Control
Image of yk: A project utilizing Green LED in a practical application
This circuit consists of four green LEDs connected in parallel, powered by a 9V battery. A rocker switch is used to control the power to the LEDs, allowing them to be turned on or off simultaneously.
Cirkit Designer LogoOpen Project in Cirkit Designer
Battery-Powered IR Sensor with LED Indicator
Image of ir home automation: A project utilizing Green LED in a practical application
This circuit uses an IR sensor to control a green LED. When the IR sensor detects an object, it outputs a signal that turns on the LED, powered by a 9V battery.
Cirkit Designer LogoOpen Project in Cirkit Designer
Arduino UNO LED Blinker with Resistor
Image of blink_led_uno: A project utilizing Green LED in a practical application
This circuit uses an Arduino UNO to control a green LED. The LED is connected to digital pin 13 through a 200-ohm resistor, and the Arduino code makes the LED blink on and off at one-second intervals.
Cirkit Designer LogoOpen Project in Cirkit Designer

Explore Projects Built with Green LED

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Image of Solar Panel : A project utilizing Green LED in a practical application
Solar-Powered Green LED Light
This circuit consists of a solar panel connected to a green LED. The solar panel provides power to the LED, causing it to light up when sufficient sunlight is available.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of yk: A project utilizing Green LED in a practical application
Battery-Powered LED Array with Rocker Switch Control
This circuit consists of four green LEDs connected in parallel, powered by a 9V battery. A rocker switch is used to control the power to the LEDs, allowing them to be turned on or off simultaneously.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of ir home automation: A project utilizing Green LED in a practical application
Battery-Powered IR Sensor with LED Indicator
This circuit uses an IR sensor to control a green LED. When the IR sensor detects an object, it outputs a signal that turns on the LED, powered by a 9V battery.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of blink_led_uno: A project utilizing Green LED in a practical application
Arduino UNO LED Blinker with Resistor
This circuit uses an Arduino UNO to control a green LED. The LED is connected to digital pin 13 through a 200-ohm resistor, and the Arduino code makes the LED blink on and off at one-second intervals.
Cirkit Designer LogoOpen Project in Cirkit Designer

Technical Specifications

  • Forward Voltage (Vf): Typically 2.0V to 3.2V (varies by model)
  • Forward Current (If): 10mA to 30mA (20mA is standard for most LEDs)
  • Maximum Reverse Voltage: 5V
  • Wavelength: 520nm to 570nm (green light spectrum)
  • Power Dissipation: Typically 60mW
  • Viewing Angle: 20° to 60° (varies by model)
  • Polarity: Anode (+) and Cathode (-)

Pin Configuration and Descriptions

Pin Name Description Identification Method
Anode Positive terminal of the LED Longer leg of the LED
Cathode Negative terminal of the LED Shorter leg or flat edge on casing

Usage Instructions

How to Use the Green LED in a Circuit

  1. Determine the Resistor Value:

    • To prevent damage, always use a current-limiting resistor in series with the LED.
    • Calculate the resistor value using Ohm's Law:
      [ R = \frac{V_{supply} - V_f}{I_f} ]
      Where:
      • ( V_{supply} ) is the supply voltage
      • ( V_f ) is the forward voltage of the LED
      • ( I_f ) is the desired forward current (e.g., 20mA)
  2. Connect the LED:

    • Connect the anode (longer leg) to the positive side of the power supply through the resistor.
    • Connect the cathode (shorter leg) to the ground.
  3. Power the Circuit:

    • Apply the appropriate voltage to the circuit. The LED will emit green light when current flows through it.

Important Considerations and Best Practices

  • Polarity Matters: LEDs are polarized components. Reversing the polarity may prevent the LED from lighting up or damage it.
  • Avoid Overcurrent: Exceeding the maximum forward current can permanently damage the LED.
  • Use a Resistor: Always use a resistor to limit current, even when using low-voltage power supplies.
  • Heat Management: While LEDs generate minimal heat, excessive current can cause overheating and reduce lifespan.

Example: Connecting a Green LED to an Arduino UNO

Below is an example of how to connect and control a Green LED using an Arduino UNO.

Circuit Setup:

  • Connect the anode of the LED to Arduino pin 9 through a 220Ω resistor.
  • Connect the cathode of the LED to the Arduino's GND pin.

Arduino Code:

// Green LED Blink Example
// This code blinks a green LED connected to pin 9 of the Arduino UNO.

const int ledPin = 9; // Define the pin connected to the LED

void setup() {
  pinMode(ledPin, OUTPUT); // Set pin 9 as an output
}

void loop() {
  digitalWrite(ledPin, HIGH); // Turn the LED on
  delay(1000);                // Wait for 1 second
  digitalWrite(ledPin, LOW);  // Turn the LED off
  delay(1000);                // Wait for 1 second
}

Troubleshooting and FAQs

Common Issues

  1. LED Does Not Light Up:

    • Cause: Incorrect polarity.
    • Solution: Ensure the anode is connected to the positive voltage and the cathode to ground.
  2. LED is Dim:

    • Cause: Resistor value too high.
    • Solution: Recalculate the resistor value to allow more current (but within safe limits).
  3. LED Burns Out Quickly:

    • Cause: Excessive current.
    • Solution: Use a resistor with the correct value to limit the current.
  4. LED Flickers:

    • Cause: Unstable power supply or loose connections.
    • Solution: Check the power source and ensure all connections are secure.

FAQs

  • Q: Can I connect a Green LED directly to a 5V power supply?
    A: No, you must use a current-limiting resistor to prevent damage to the LED.

  • Q: What happens if I reverse the polarity of the LED?
    A: The LED will not light up. In some cases, prolonged reverse voltage may damage the LED.

  • Q: Can I use a Green LED with a 3.3V microcontroller?
    A: Yes, but ensure the forward voltage of the LED is compatible and use an appropriate resistor.

  • Q: How do I know the polarity of the LED?
    A: The longer leg is the anode (+), and the shorter leg or flat edge on the casing is the cathode (-).
