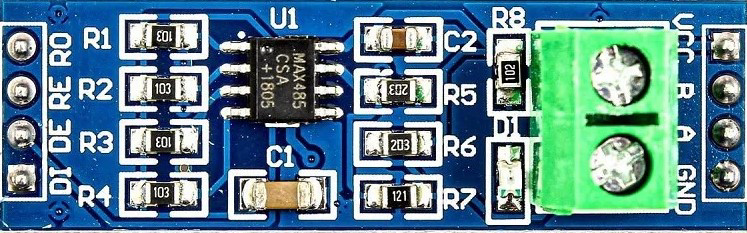

The MAX485 is a low-power, half-duplex RS-485 transceiver designed for robust communication over long distances in noisy environments. Manufactured by Arduino, this component is ideal for industrial and commercial applications requiring reliable data transmission. It supports data rates of up to 2.5 Mbps and operates on a single 5V power supply, making it both efficient and versatile.
Explore Projects Built with MAX485
Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
This circuit is designed to interface with multiple MAX6675 thermocouple-to-digital converter modules using an Arduino Mega 2560 as the central processing unit. The Arduino reads temperature data from the MAX6675 modules over a shared SPI bus, with individual chip select (CS) lines for each module to enable multiplexing. The circuit is likely used for monitoring multiple temperature points, possibly in an industrial setting where precise temperature control and monitoring are critical.
This circuit serves as a multi-protocol communication hub featuring two ESP8266 NodeMCUs for processing, each connected to a LoRa Ra-02 SX1278 for long-range wireless communication. One NodeMCU is also connected to an RS-485 module for serial communication and a W5500 Ethernet module for network connectivity, with MB102 modules supplying power.
This circuit consists of two microcontrollers, an STM32F103C8T6 and an Arduino UNO, each interfaced with separate RS485 transceiver modules for serial communication. The STM32F103C8T6 controls the RE (Receiver Enable) and DE (Driver Enable) pins of one RS485 module to manage its operation, and communicates via the A9 and A10 pins for DI (Data Input) and RO (Receiver Output), respectively. The Arduino UNO is similarly connected to another RS485 module, with digital pins D2 and D3 interfacing with DI and RO, and D8 controlling both RE and DE. The RS485 modules are connected to each other through their A and B differential communication lines, enabling serial data exchange between the two microcontrollers over a robust and long-distance capable RS485 network.
This circuit features an ESP32 microcontroller interfaced with an RS485 communication module, a current sensor (ACS712), a voltage sensor (ZMPT101B), and a 1-channel relay. The ESP32 collects current and voltage data from the sensors, controls the relay, and communicates with other devices via the RS485 module.
Point-to-point or multipoint communication systems
Technical Specifications
The MAX485 is designed to meet the requirements of RS-485 and RS-422 communication standards. Below are its key technical details:
Key Features
Operating Voltage: 4.75V to 5.25V
Data Rate: Up to 2.5 Mbps
Power Consumption: Low-power operation with a typical supply current of 300 µA
Communication Mode: Half-duplex
Input Impedance: 12 kΩ (minimum)
Driver Output Voltage: ±1.5V (minimum) with a 54Ω load
Receiver Sensitivity: ±200 mV
Operating Temperature Range: -40°C to +85°C
ESD Protection: ±15 kV (Human Body Model)
Pin Configuration and Descriptions
The MAX485 is available in an 8-pin DIP or SOIC package. Below is the pinout and description:
Pin Number
Pin Name
Description
1
RO
Receiver Output: Outputs the received data from the RS-485 bus.
2
RE̅
Receiver Enable: Active-low input. Enables the receiver when low.
3
DE
Driver Enable: Active-high input. Enables the driver when high.
4
DI
Driver Input: Accepts the data to be transmitted on the RS-485 bus.
5
GND
Ground: Connect to the system ground.
6
A
Non-inverting Driver Output / Receiver Input: Connect to the RS-485 bus line.
7
B
Inverting Driver Output / Receiver Input: Connect to the RS-485 bus line.
8
VCC
Power Supply: Connect to a 5V DC power source.
Usage Instructions
The MAX485 is straightforward to use in RS-485 communication systems. Below are the steps and considerations for integrating it into your circuit.
Circuit Connection
Power Supply: Connect the VCC pin to a 5V DC power source and the GND pin to the system ground.
Bus Lines: Connect the A and B pins to the RS-485 bus lines. Use a twisted-pair cable for long-distance communication to minimize noise.
Driver and Receiver Control:
To enable the driver, set the DE pin high.
To enable the receiver, set the RE̅ pin low.
For half-duplex communication, toggle DE and RE̅ as needed to switch between transmitting and receiving modes.
Data Input/Output:
Send data to the DI pin for transmission.
Read received data from the RO pin.
Example Circuit with Arduino UNO
Below is an example of how to connect the MAX485 to an Arduino UNO for RS-485 communication:
Wiring
Connect MAX485's DI to Arduino's D3 (digital pin 3).
Connect MAX485's RO to Arduino's D2 (digital pin 2).
Connect MAX485's DE and RE̅ to Arduino's D4 (digital pin 4).
Connect MAX485's VCC to Arduino's 5V pin and GND to Arduino's GND.
Connect the A and B pins to the RS-485 bus.
Arduino Code Example
// Include SoftwareSerial library for RS-485 communication
#include <SoftwareSerial.h>
// Define MAX485 connections
#define RO_PIN 2 // Receiver Output
#define DI_PIN 3 // Driver Input
#define RE_DE_PIN 4 // Receiver Enable and Driver Enable
// Initialize SoftwareSerial for RS-485 communication
SoftwareSerial RS485Serial(RO_PIN, DI_PIN);
void setup() {
// Set RE_DE_PIN as output
pinMode(RE_DE_PIN, OUTPUT);
// Start serial communication
Serial.begin(9600); // For debugging
RS485Serial.begin(9600); // For RS-485 communication
// Set MAX485 to receive mode initially
digitalWrite(RE_DE_PIN, LOW); // RE̅ = LOW, DE = LOW
}
void loop() {
// Example: Send data over RS-485
digitalWrite(RE_DE_PIN, HIGH); // Enable driver (DE = HIGH)
RS485Serial.println("Hello, RS-485!"); // Send data
delay(100); // Wait for data to be sent
digitalWrite(RE_DE_PIN, LOW); // Enable receiver (RE̅ = LOW)
// Example: Receive data over RS-485
if (RS485Serial.available()) {
String receivedData = RS485Serial.readString();
Serial.println("Received: " + receivedData); // Print received data
}
delay(1000); // Wait before next iteration
}
Best Practices
Use a termination resistor (typically 120Ω) at both ends of the RS-485 bus to minimize signal reflections.
Ensure proper grounding between all devices on the RS-485 network.
Avoid long stubs (branch connections) on the RS-485 bus to maintain signal integrity.
Troubleshooting and FAQs
Common Issues
No Communication Between Devices
Cause: Incorrect wiring or mismatched baud rates.
Solution: Verify all connections and ensure both devices use the same baud rate.
Data Corruption
Cause: Missing or incorrect termination resistors.
Solution: Add 120Ω termination resistors at both ends of the RS-485 bus.
High Power Consumption
Cause: DE pin left high when not transmitting.
Solution: Set DE low when the driver is not in use to reduce power consumption.
Intermittent Communication Failures
Cause: Noise or improper grounding.
Solution: Use twisted-pair cables and ensure all devices share a common ground.
FAQs
Q1: Can the MAX485 be used for full-duplex communication?
A1: No, the MAX485 is a half-duplex transceiver. For full-duplex communication, consider using a full-duplex RS-485 transceiver like the MAX488.
Q2: What is the maximum communication distance for the MAX485?
A2: The maximum distance depends on the data rate and cable quality. At lower data rates (e.g., 100 kbps), it can communicate over distances up to 1200 meters.
Q3: Can I connect multiple devices to the same RS-485 bus?
A3: Yes, the MAX485 supports multipoint communication with up to 32 devices on the same bus.
Q4: Is the MAX485 compatible with 3.3V systems?
A4: No, the MAX485 requires a 5V power supply. Use a level shifter if interfacing with 3.3V systems.
By following this documentation, you can effectively integrate the MAX485 into your RS-485 communication projects.
