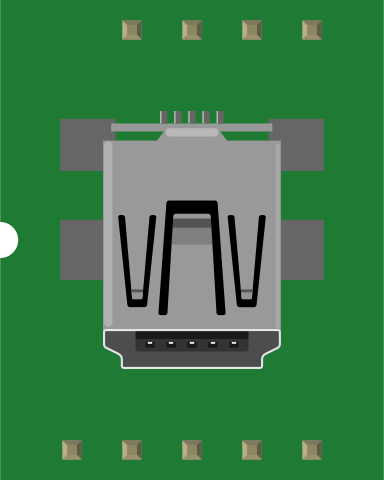

How to Use USB Connectors: Examples, Pinouts, and Specs

USB (Universal Serial Bus) connectors are standardized interfaces designed for connecting peripheral devices to computers, power sources, or other electronic systems. They facilitate data transfer, device communication, and power delivery. USB connectors are widely used in consumer electronics, including smartphones, laptops, printers, external storage devices, and more.

• Data Transfer: Connecting external storage devices, keyboards, mice, and cameras to computers.
• Power Delivery: Charging smartphones, tablets, and other portable devices.
• Peripheral Communication: Enabling communication between devices such as printers, scanners, and audio interfaces.
• Embedded Systems: Used in microcontroller-based projects for programming and communication.

• Voltage Rating: 5V (standard), with USB Power Delivery supporting up to 20V.
• Current Rating: Typically 500mA to 3A, depending on the USB version.
• Data Transfer Speeds:
  • USB 2.0: Up to 480 Mbps
  • USB 3.0: Up to 5 Gbps
  • USB 3.1: Up to 10 Gbps
  • USB 3.2 and USB4: Up to 40 Gbps
• Connector Types: USB-A, USB-B, USB-C, Mini-USB, Micro-USB.
• Durability: Rated for 1,500 to 10,000 insertion/removal cycles, depending on the type.

1. Identify the Connector Type: Determine the appropriate USB connector type (e.g., USB-A, USB-C) based on your device and application.
2. Connect Power and Data Lines:
   • For USB-A, connect the VBUS pin to a 5V power source and the GND pin to ground.
   • For USB-C, ensure proper connection of VBUS, GND, and CC pins for power delivery.
3. Data Communication:
   • Connect the D+ and D- pins to the corresponding data lines of your microcontroller or device.
   • For USB-C, ensure proper handling of TX/RX pairs for high-speed data transfer.
4. Use Proper Resistors:
   • For USB-C, use pull-up or pull-down resistors on the CC pins to indicate the power role (source or sink).
5. Secure the Connector: Mount the USB connector securely on the PCB or enclosure to prevent mechanical stress.

• Voltage and Current Ratings: Ensure the power supply matches the voltage and current requirements of the connected device.
• Cable Quality: Use high-quality USB cables to minimize data loss and ensure reliable power delivery.
• ESD Protection: Add ESD protection diodes to the data lines to safeguard against electrostatic discharge.
• USB Standards Compliance: Verify that your design complies with the USB standard for compatibility and safety.

/* Example code for reading data from a USB device connected to an Arduino UNO.
   Ensure the USB device is connected to the appropriate pins on the Arduino. */

#include <SoftwareSerial.h> // Include library for serial communication

// Define RX and TX pins for USB communication
SoftwareSerial usbSerial(10, 11); // RX = Pin 10, TX = Pin 11

void setup() {
  Serial.begin(9600);       // Initialize serial communication with PC
  usbSerial.begin(9600);    // Initialize USB communication
  Serial.println("USB Communication Initialized");
}

void loop() {
  // Check if data is available from the USB device
  if (usbSerial.available()) {
    char data = usbSerial.read(); // Read data from USB
    Serial.print("Received: ");
    Serial.println(data);         // Print received data to Serial Monitor
  }
}

1. No Power Delivery:

   • Cause: Incorrect connection of VBUS or GND pins.
   • Solution: Verify the power connections and ensure the power source is active.

2. Data Transfer Fails:

   • Cause: Misconnection of D+ and D- pins or poor cable quality.
   • Solution: Check the data line connections and use a certified USB cable.

3. Overheating:

   • Cause: Exceeding the current rating of the USB connector.
   • Solution: Ensure the connected device does not draw more current than the connector's rating.

4. Loose Connection:

   • Cause: Worn-out or improperly mounted connector.
   • Solution: Replace the connector or secure it properly on the PCB.

• Q: Can USB-C connectors be used for both power and data?

  • A: Yes, USB-C connectors support simultaneous power delivery and high-speed data transfer.

• Q: How do I identify the orientation of a USB-C connector?

  • A: USB-C connectors are reversible, so they can be plugged in either orientation.

• Q: What is the maximum current supported by USB-C?

  • A: USB-C supports up to 5A with USB Power Delivery.

• Q: Do I need special drivers for USB communication with microcontrollers?

  • A: It depends on the microcontroller. Some require USB libraries or drivers for proper communication.

This documentation provides a comprehensive guide to understanding and using USB connectors effectively in your projects.
