How to Use LED: Two Pin (red): Examples, Pinouts, and Specs

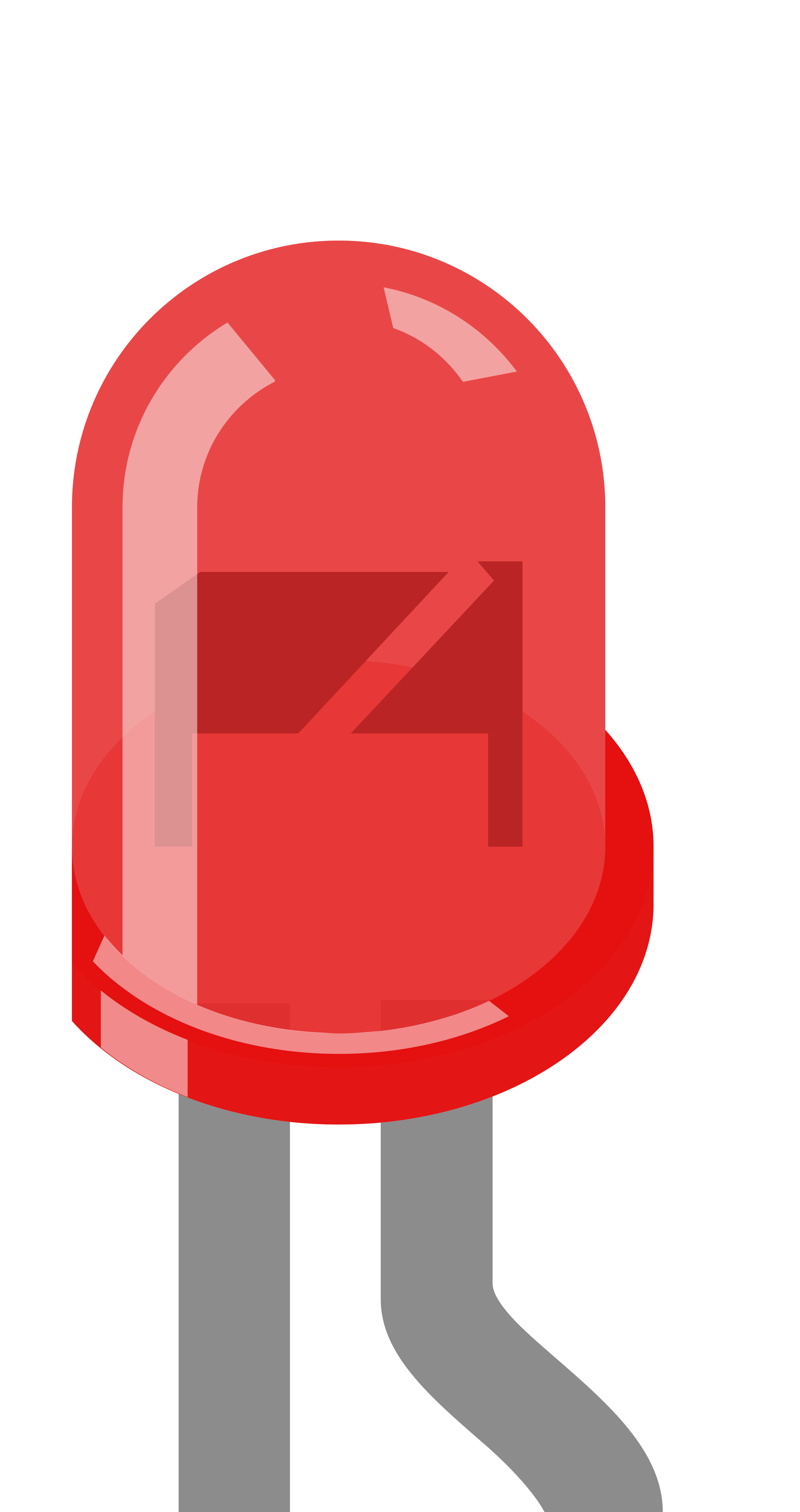

A light-emitting diode (LED) is a semiconductor device that emits light when an electric current flows through it. The two-pin red LED is one of the most commonly used LEDs in electronic circuits. It is widely recognized for its bright red light, which is often used to indicate power, status, or alerts in various applications.

• Power indicators in electronic devices
• Status indicators for circuits and systems
• Visual alerts in alarms or notifications
• Simple light sources for DIY electronics projects
• Educational purposes for learning about diodes and circuits

Below are the key technical details for a standard two-pin red LED:

The two-pin red LED has a simple pinout:

Note: If the pins are trimmed or difficult to distinguish, the cathode side is often marked with a flat edge on the LED casing.

1. Determine the Resistor Value: LEDs require a current-limiting resistor to prevent damage. Use Ohm's Law to calculate the resistor value: [ R = \frac{V_{supply} - V_f}{I_f} ]

   • (V_{supply}): Supply voltage
   • (V_f): Forward voltage of the LED (1.8V to 2.2V for red LEDs)
   • (I_f): Desired forward current (typically 20mA or 0.02A)

   For example, with a 5V supply: [ R = \frac{5V - 2V}{0.02A} = 150\Omega ]

2. Connect the LED:

   • Connect the anode (+) to the positive terminal of the power supply through the resistor.
   • Connect the cathode (-) to the ground (GND).

3. Test the Circuit: Power the circuit and observe the LED emitting red light.

• Polarity Matters: LEDs are polarized components. Reversing the connections may prevent the LED from lighting up or damage it.
• Use a Resistor: Always use a current-limiting resistor to avoid exceeding the maximum forward current.
• Avoid Overheating: Prolonged operation at high currents can reduce the LED's lifespan.
• Check Voltage Levels: Ensure the supply voltage matches the LED's forward voltage requirements.

Below is an example of how to connect and control a red LED using an Arduino UNO:

• Connect the anode (+) of the LED to a 220Ω resistor.
• Connect the other end of the resistor to digital pin 13 on the Arduino.
• Connect the cathode (-) of the LED to the GND pin on the Arduino.

// Simple Arduino code to blink a red LED connected to pin 13

void setup() {
  pinMode(13, OUTPUT); // Set pin 13 as an output
}

void loop() {
  digitalWrite(13, HIGH); // Turn the LED on
  delay(1000);            // Wait for 1 second
  digitalWrite(13, LOW);  // Turn the LED off
  delay(1000);            // Wait for 1 second
}

Tip: Adjust the delay() values to change the blinking speed.

1. Can I connect the LED directly to a power source?

   • No, you must use a current-limiting resistor to prevent damage to the LED.

2. What happens if I reverse the LED connections?

   • The LED will not light up, but it is unlikely to be damaged unless the reverse voltage exceeds 5V.

3. Can I use a higher voltage power supply?

   • Yes, but you must adjust the resistor value accordingly to limit the current to 20mA.

4. Why is the LED not as bright as expected?

   • Check the resistor value and ensure the forward current is close to 20mA.

By following this documentation, you can effectively use a two-pin red LED in your electronic projects!
