How to Use Calliope Mini v1.0: Examples, Pinouts, and Specs

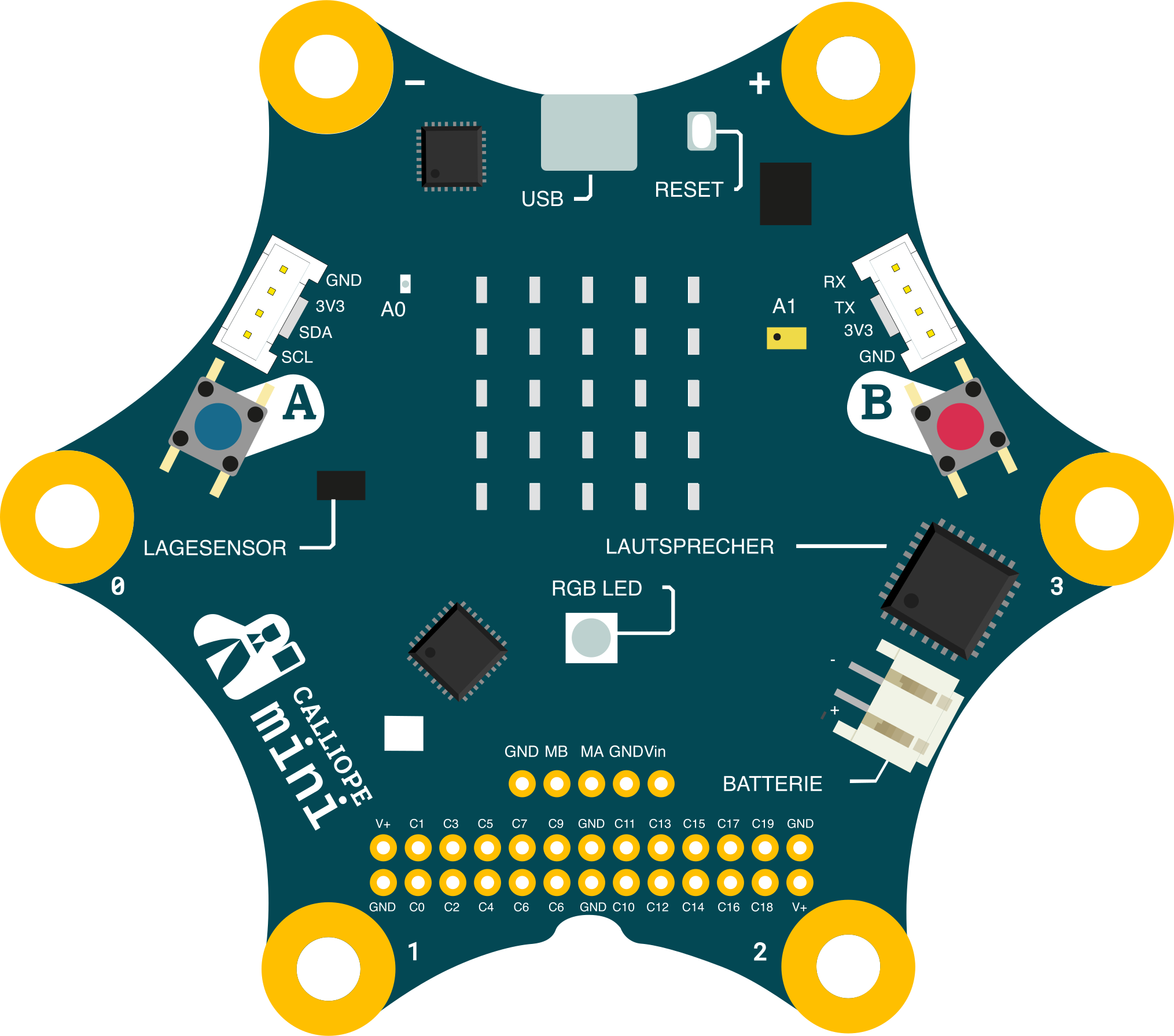

The Calliope Mini v1.0, developed by Calliope gGmbH, is a compact and versatile microcontroller board designed to make coding and electronics accessible to learners of all ages. Equipped with a variety of sensors, LEDs, and connectivity options, the Calliope Mini serves as an excellent tool for educational purposes, enabling users to explore programming, robotics, and IoT applications.

• Educational Projects: Ideal for teaching programming and electronics in schools.
• Robotics: Can be used as the control unit for small robots.
• IoT Prototyping: Suitable for creating simple IoT devices.
• Interactive Art: Enables creative projects with sound, light, and motion.
• STEM Learning: Encourages hands-on learning in science, technology, engineering, and mathematics.

The Calliope Mini v1.0 features a 25-pin edge connector for interfacing with external components. Below is a summary of the key pins:

1. Powering the Board:

   • Connect the Calliope Mini to a computer via a micro-USB cable for power and programming.
   • Alternatively, use a 3V battery pack or connect to an external power source via the 3V and GND pins.

2. Programming the Board:

   • Use the MakeCode Editor or Open Roberta Lab to write and upload code.
   • Save the program as a .hex file and drag it onto the Calliope Mini, which appears as a USB drive.

3. Connecting External Components:

   • Use alligator clips or a breakout board to connect external sensors, motors, or LEDs to the edge connector pins.

4. Using Built-in Features:

   • Utilize the 5x5 LED matrix for visual feedback.
   • Access the onboard sensors (e.g., accelerometer, magnetometer) for interactive projects.
   • Play sounds or record audio using the built-in speaker and microphone.

• Voltage Levels: Ensure external components operate within the 3V to 5V range to avoid damage.
• Pin Usage: Avoid shorting pins or connecting incompatible devices.
• Firmware Updates: Regularly check for firmware updates to ensure compatibility with the latest software tools.
• Bluetooth Usage: When using BLE, ensure the board is not connected via USB to avoid conflicts.

Although the Calliope Mini is not directly programmable via Arduino IDE, it can communicate with an Arduino UNO via UART. Below is an example of how to send data from the Calliope Mini to an Arduino UNO:

void setup() {
  Serial.begin(9600); // Initialize UART communication at 9600 baud
}

void loop() {
  if (Serial.available()) {
    char received = Serial.read(); // Read data from Calliope Mini
    Serial.print("Received: ");
    Serial.println(received); // Print received data to Serial Monitor
  }
}

// Send a character 'A' to the Arduino UNO via UART
basic.forever(function () {
    serial.writeString("A") // Send the character 'A' over UART
    basic.pause(1000)       // Wait for 1 second before sending again
})

1. Calliope Mini Not Recognized by Computer:

   • Ensure the USB cable is a data cable (not just a charging cable).
   • Try connecting to a different USB port or restarting your computer.

2. Program Not Running After Upload:

   • Verify that the .hex file was successfully copied to the Calliope Mini.
   • Check for syntax errors in the code and recompile if necessary.

3. LED Matrix Not Lighting Up:

   • Ensure the board is properly powered.
   • Check for any short circuits or damaged LEDs.

4. Bluetooth Not Connecting:

   • Ensure the Calliope Mini is not connected via USB.
   • Restart the board and retry pairing with your device.

Q: Can I use the Calliope Mini with Raspberry Pi?
A: Yes, the Calliope Mini can communicate with a Raspberry Pi via UART or I2C. Ensure proper voltage level shifting if required.

Q: What programming languages are supported?
A: The Calliope Mini supports block-based programming (MakeCode), JavaScript, Python, and C++.

Q: How do I reset the Calliope Mini?
A: Press and hold the reset button on the back of the board until the LED matrix displays a reset animation.

Q: Can I power the Calliope Mini with a LiPo battery?
A: Yes, as long as the voltage is within the 3V to 5V range.

This concludes the documentation for the Calliope Mini v1.0. For further assistance, refer to the official Calliope gGmbH website or community forums.
