How to Use Rasberry Pi5: Examples, Pinouts, and Specs

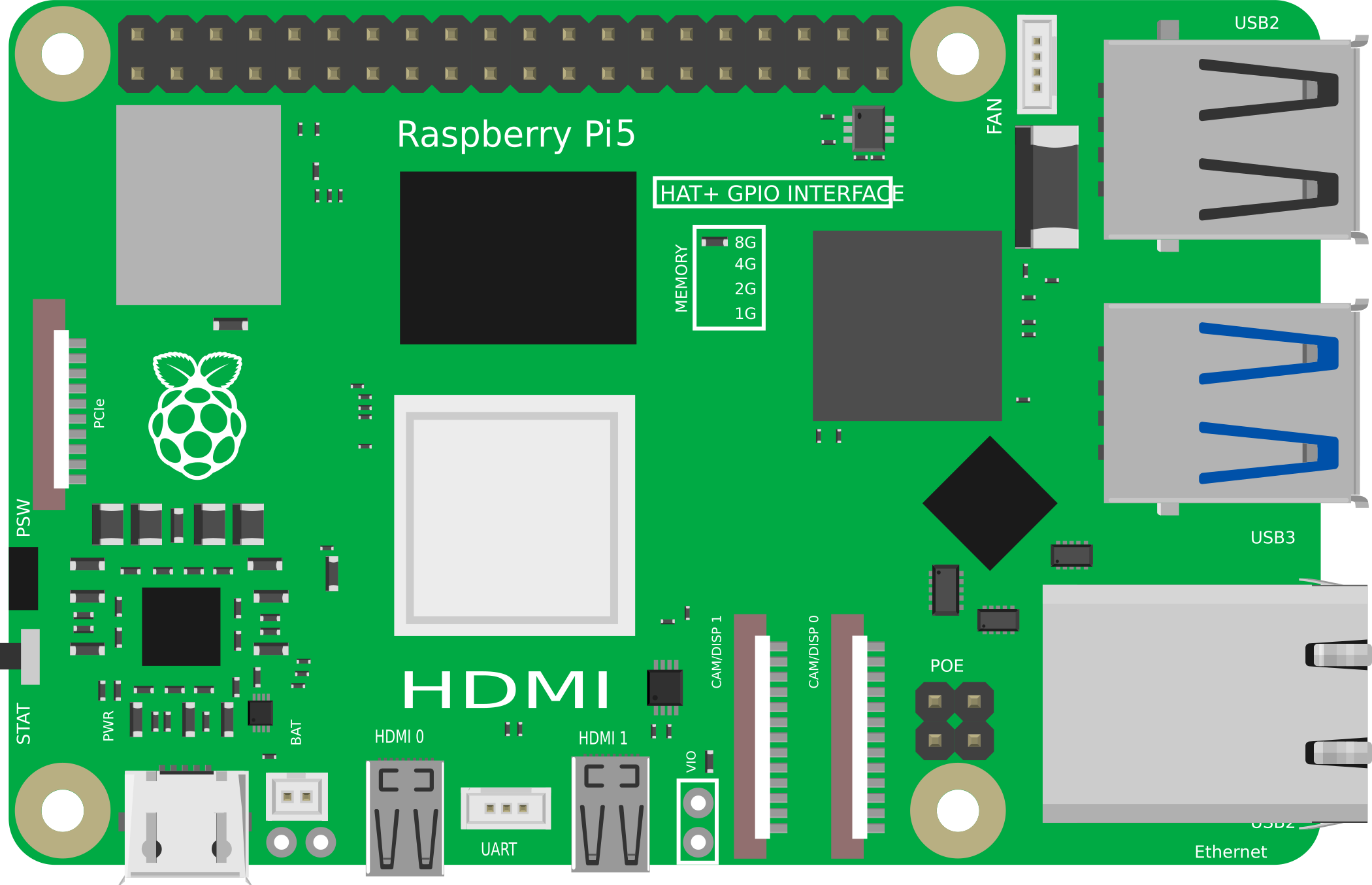

Image of Rasberry Pi5Design with Rasberry Pi5 in Cirkit Designer

Introduction

The Raspberry Pi 5 is a compact, affordable single-board computer designed for a wide range of applications. It supports various programming languages, making it an ideal choice for hobbyists, educators, and professionals alike. With its powerful processing capabilities and versatile GPIO (General Purpose Input/Output) pins, the Raspberry Pi 5 is perfect for projects in electronics, robotics, IoT (Internet of Things), and more.

Common applications include:

Explore Projects Built with Rasberry Pi5

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Image of Raspberry Pi 5 Smart Weather Station with GPS and AI Integration: A project utilizing Rasberry Pi5 in a practical application
Raspberry Pi 5 Smart Weather Station with GPS and AI Integration

This circuit integrates a Raspberry Pi 5 with various peripherals including an 8MP 3D stereo camera, an AI Hat, a BMP388 sensor, a 16x2 I2C LCD, and an Adafruit Ultimate GPS module. The Raspberry Pi serves as the central processing unit, interfacing with the camera for image capture, the AI Hat for AI processing, the BMP388 for environmental sensing, the LCD for display, and the GPS module for location tracking, with a USB Serial TTL for serial communication.

Open Project in Cirkit Designer

Technical Specifications

The Raspberry Pi 5 offers significant improvements over its predecessors, providing enhanced performance and connectivity options. Below are the key technical details:

General Specifications

Feature Specification
Processor Quad-core ARM Cortex-A76 @ 2.4 GHz
GPU VideoCore VII
RAM Options 4GB, 8GB, or 16GB LPDDR4X
Storage MicroSD card slot, eMMC module support
Connectivity Gigabit Ethernet, Wi-Fi 6, Bluetooth 5.2
USB Ports 2x USB 3.0, 2x USB 2.0
Display Output 2x micro-HDMI (4K @ 60Hz)
GPIO Pins 40-pin header
Power Supply USB-C (5V/5A recommended)
Dimensions 85.6mm x 56.5mm x 17mm

GPIO Pin Configuration

The Raspberry Pi 5 features a 40-pin GPIO header for interfacing with external components. Below is the pinout:

Pin Number Pin Name Function
1 3.3V Power Power supply (3.3V)
2 5V Power Power supply (5V)
3 GPIO2 (SDA1) I2C Data
4 5V Power Power supply (5V)
5 GPIO3 (SCL1) I2C Clock
6 Ground Ground
7 GPIO4 General-purpose I/O
8 GPIO14 (TXD) UART Transmit
9 Ground Ground
10 GPIO15 (RXD) UART Receive
... ... ... (Refer to official pinout)

For the full GPIO pinout, refer to the Raspberry Pi 5 datasheet.

Usage Instructions

Setting Up the Raspberry Pi 5

  1. Prepare the Hardware:

    • Insert a compatible microSD card with the Raspberry Pi OS installed.
    • Connect peripherals such as a keyboard, mouse, and monitor.
    • Attach the power supply (5V/5A USB-C adapter recommended).
  2. Boot the System:

    • Power on the Raspberry Pi 5 by connecting the USB-C power supply.
    • Follow the on-screen instructions to complete the initial setup.
  3. Access GPIO Pins:

    • Use jumper wires to connect external components (e.g., LEDs, sensors) to the GPIO pins.
    • Ensure proper voltage levels to avoid damaging the board.

Example: Blinking an LED with Python

The following example demonstrates how to blink an LED connected to GPIO pin 17 using Python:

# Import the necessary library for GPIO control
import RPi.GPIO as GPIO
import time

# Set up GPIO mode (BCM refers to Broadcom pin numbering)
GPIO.setmode(GPIO.BCM)

# Define the GPIO pin connected to the LED
LED_PIN = 17

# Set up the LED pin as an output
GPIO.setup(LED_PIN, GPIO.OUT)

try:
    while True:
        GPIO.output(LED_PIN, GPIO.HIGH)  # Turn the LED on
        time.sleep(1)                   # Wait for 1 second
        GPIO.output(LED_PIN, GPIO.LOW)  # Turn the LED off
        time.sleep(1)                   # Wait for 1 second
except KeyboardInterrupt:
    # Clean up GPIO settings when the program is interrupted
    GPIO.cleanup()

Best Practices

Troubleshooting and FAQs

Common Issues

  1. The Raspberry Pi 5 does not boot:

    • Ensure the microSD card is properly inserted and contains a valid OS image.
    • Verify that the power supply meets the recommended 5V/5A requirement.
  2. No display output:

    • Check that the HDMI cable is securely connected to the correct micro-HDMI port.
    • Ensure the monitor is powered on and set to the correct input source.
  3. GPIO pins not working:

    • Confirm that the correct GPIO pin numbering mode (BCM or BOARD) is used in your code.
    • Check for loose connections or damaged components.

FAQs

Q: Can I use the Raspberry Pi 5 for AI and machine learning projects?
A: Yes, the Raspberry Pi 5's powerful processor and GPU make it suitable for running lightweight AI and machine learning models.

Q: What operating systems are compatible with the Raspberry Pi 5?
A: The Raspberry Pi 5 supports Raspberry Pi OS, Ubuntu, and other Linux-based distributions.

Q: How do I update the Raspberry Pi OS?
A: Run the following commands in the terminal to update the OS:

sudo apt update
sudo apt full-upgrade

Q: Can I power the Raspberry Pi 5 via GPIO pins?
A: Yes, you can supply power through the 5V and GND GPIO pins, but this method bypasses the onboard power management and is not recommended for beginners.
