How to Use LoRa: Examples, Pinouts, and Specs

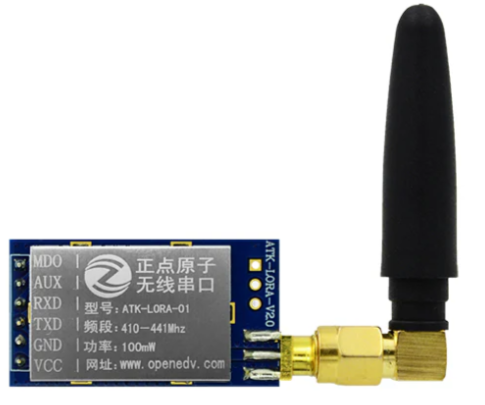

Image of LoRa
Cirkit Designer LogoDesign with LoRa in Cirkit Designer

Introduction

LoRa (Long Range) is a low-power wide-area network (LPWAN) protocol designed for long-range communication between devices. It operates on unlicensed radio frequency bands and is optimized for low power consumption, making it ideal for battery-powered devices. LoRa is widely used in Internet of Things (IoT) applications to transmit small amounts of data over distances of several kilometers, even in environments with significant obstacles.

Explore Projects Built with LoRa

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Arduino Nano and LoRa SX1278 Battery-Powered Wireless Display
Image of transreciver: A project utilizing LoRa in a practical application
This circuit is a LoRa-based wireless communication system using an Arduino Nano to receive data packets and display them on an LCD. It includes a LoRa Ra-02 SX1278 module for long-range communication, a 3.7V battery with a charger module for power, and an LED indicator controlled by the Arduino.
Cirkit Designer LogoOpen Project in Cirkit Designer
ESP8266 and LoRa SX1278 Based Wireless Communication Module
Image of Receiver: A project utilizing LoRa in a practical application
This circuit integrates a LoRa Ra-02 SX1278 module with an ESP8266 NodeMCU to enable long-range wireless communication. The ESP8266 NodeMCU handles the control and data processing, while the LoRa module provides the capability to transmit and receive data over long distances using LoRa technology.
Cirkit Designer LogoOpen Project in Cirkit Designer
ESP8266 NodeMCU with GPS and LoRa Connectivity
Image of Copy of lora based gps traking: A project utilizing LoRa in a practical application
This circuit comprises an ESP8266 NodeMCU microcontroller interfaced with a LoRa Ra-02 SX1278 module for long-range communication and a GPS NEO 6M module for location tracking. The ESP8266 reads GPS data via UART and transmits it using the LoRa module, which is connected via SPI. A 3.7v battery powers the system, making it suitable for remote tracking applications.
Cirkit Designer LogoOpen Project in Cirkit Designer
Arduino Nano and LoRa SX1278 Wireless Communication Module
Image of CSE216L Project Livestock Health Monitoring Secondary Circuit: A project utilizing LoRa in a practical application
This circuit consists of an Arduino Nano microcontroller connected to a LoRa Ra-02 SX1278 module, enabling wireless communication. The Arduino handles the SPI communication with the LoRa module, with connections for SCK, MISO, MOSI, NSS, and RST, as well as power and ground connections. This setup is typically used for long-range, low-power wireless data transmission.
Cirkit Designer LogoOpen Project in Cirkit Designer

Explore Projects Built with LoRa

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Image of transreciver: A project utilizing LoRa in a practical application
Arduino Nano and LoRa SX1278 Battery-Powered Wireless Display
This circuit is a LoRa-based wireless communication system using an Arduino Nano to receive data packets and display them on an LCD. It includes a LoRa Ra-02 SX1278 module for long-range communication, a 3.7V battery with a charger module for power, and an LED indicator controlled by the Arduino.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Receiver: A project utilizing LoRa in a practical application
ESP8266 and LoRa SX1278 Based Wireless Communication Module
This circuit integrates a LoRa Ra-02 SX1278 module with an ESP8266 NodeMCU to enable long-range wireless communication. The ESP8266 NodeMCU handles the control and data processing, while the LoRa module provides the capability to transmit and receive data over long distances using LoRa technology.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Copy of lora based gps traking: A project utilizing LoRa in a practical application
ESP8266 NodeMCU with GPS and LoRa Connectivity
This circuit comprises an ESP8266 NodeMCU microcontroller interfaced with a LoRa Ra-02 SX1278 module for long-range communication and a GPS NEO 6M module for location tracking. The ESP8266 reads GPS data via UART and transmits it using the LoRa module, which is connected via SPI. A 3.7v battery powers the system, making it suitable for remote tracking applications.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of CSE216L Project Livestock Health Monitoring Secondary Circuit: A project utilizing LoRa in a practical application
Arduino Nano and LoRa SX1278 Wireless Communication Module
This circuit consists of an Arduino Nano microcontroller connected to a LoRa Ra-02 SX1278 module, enabling wireless communication. The Arduino handles the SPI communication with the LoRa module, with connections for SCK, MISO, MOSI, NSS, and RST, as well as power and ground connections. This setup is typically used for long-range, low-power wireless data transmission.
Cirkit Designer LogoOpen Project in Cirkit Designer

Common Applications and Use Cases

  • Smart agriculture (e.g., soil moisture sensors, weather stations)
  • Smart cities (e.g., parking sensors, streetlight control)
  • Industrial monitoring (e.g., equipment health, predictive maintenance)
  • Asset tracking and logistics
  • Environmental monitoring (e.g., air quality, water levels)

Technical Specifications

Below are the key technical details for a typical LoRa module (e.g., SX1276-based modules):

Parameter Value
Frequency Bands 433 MHz, 868 MHz, 915 MHz (varies by region)
Modulation Technique Chirp Spread Spectrum (CSS)
Data Rate 0.3 kbps to 50 kbps
Transmission Range Up to 15 km (line of sight), 2-5 km in urban environments
Output Power Up to +20 dBm (100 mW)
Sensitivity Down to -137 dBm
Supply Voltage 1.8V to 3.7V
Current Consumption 10-20 mA (receive mode), 120-150 mA (transmit mode at max power)
Interface SPI (Serial Peripheral Interface)
Operating Temperature -40°C to +85°C

Pin Configuration and Descriptions

The following table describes the pinout for a typical LoRa module (e.g., SX1276):

Pin Name Pin Number Description
GND 1 Ground connection
VCC 2 Power supply (1.8V to 3.7V)
SCK 3 SPI clock input
MISO 4 SPI data output (Master In Slave Out)
MOSI 5 SPI data input (Master Out Slave In)
NSS 6 SPI chip select (active low)
DIO0 7 Digital I/O pin 0 (used for interrupts or status signaling)
DIO1 8 Digital I/O pin 1 (optional, used for advanced configurations)
RESET 9 Reset pin (active low)
ANT 10 Antenna connection

Usage Instructions

How to Use the Component in a Circuit

  1. Power Supply: Connect the VCC pin to a regulated power source (1.8V to 3.7V) and GND to ground.
  2. SPI Communication: Connect the SCK, MISO, MOSI, and NSS pins to the corresponding SPI pins on your microcontroller.
  3. Antenna: Attach an appropriate antenna to the ANT pin for optimal signal transmission and reception.
  4. Reset: Use the RESET pin to initialize the module during startup or after a fault.
  5. Digital I/O Pins: Use DIO0 and DIO1 for interrupt handling or status monitoring, depending on your application.

Important Considerations and Best Practices

  • Antenna Selection: Use an antenna tuned to the operating frequency of your LoRa module (e.g., 868 MHz or 915 MHz).
  • Power Supply: Ensure a stable power supply to avoid communication errors.
  • Regulatory Compliance: Operate the module within the frequency bands and power limits specified for your region.
  • Environmental Factors: For maximum range, place the antenna in an elevated, unobstructed location.

Example: Connecting LoRa to Arduino UNO

Below is an example of how to connect and program a LoRa module with an Arduino UNO:

Wiring Diagram

LoRa Pin Arduino UNO Pin
VCC 3.3V
GND GND
SCK D13
MISO D12
MOSI D11
NSS D10
RESET D9
DIO0 D2

Arduino Code Example

#include <SPI.h>
#include <LoRa.h> // Include the LoRa library

#define NSS 10    // Chip select pin
#define RESET 9   // Reset pin
#define DIO0 2    // Interrupt pin

void setup() {
  Serial.begin(9600); // Initialize serial communication
  while (!Serial);

  Serial.println("Initializing LoRa module...");

  // Initialize LoRa module
  LoRa.setPins(NSS, RESET, DIO0);
  if (!LoRa.begin(915E6)) { // Set frequency to 915 MHz
    Serial.println("LoRa initialization failed!");
    while (1);
  }

  Serial.println("LoRa initialized successfully!");
}

void loop() {
  Serial.println("Sending packet...");
  LoRa.beginPacket();          // Start a new packet
  LoRa.print("Hello, LoRa!");  // Add data to the packet
  LoRa.endPacket();            // Send the packet

  delay(5000); // Wait 5 seconds before sending the next packet
}

Troubleshooting and FAQs

Common Issues and Solutions

  1. LoRa Module Not Initializing

    • Cause: Incorrect wiring or insufficient power supply.
    • Solution: Double-check the wiring and ensure the power supply meets the module's requirements.
  2. Poor Signal Range

    • Cause: Improper antenna placement or environmental interference.
    • Solution: Use a high-quality antenna and place it in an elevated, unobstructed location.
  3. Data Transmission Fails

    • Cause: Mismatched frequency or incorrect SPI configuration.
    • Solution: Verify that both the transmitter and receiver are set to the same frequency and SPI settings.
  4. High Power Consumption

    • Cause: Module operating in high-power transmit mode.
    • Solution: Use low-power modes when possible and optimize the duty cycle.

FAQs

Q: Can I use LoRa for real-time data transmission?
A: LoRa is not ideal for real-time applications due to its low data rate and high latency. It is best suited for periodic data transmission.

Q: What is the maximum range of LoRa?
A: The range depends on environmental factors, but it can reach up to 15 km in line-of-sight conditions and 2-5 km in urban areas.

Q: Can multiple LoRa devices communicate with each other?
A: Yes, LoRa supports point-to-point and point-to-multipoint communication. You can also use LoRaWAN for networked communication.

Q: Is LoRa secure?
A: LoRa supports encryption (AES-128) for secure data transmission, but additional security measures may be needed for sensitive applications.
