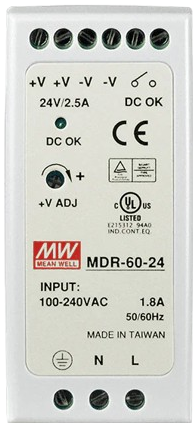

Image of Power Supply
Cirkit Designer LogoDesign with Power Supply in Cirkit Designer

Introduction

A power supply is an essential electronic component that provides electrical energy to a circuit. It converts AC or DC voltage from a source into a usable form for powering electronic components. The "220 to 24" power supply is specifically designed to step down 220V AC input to a stable 24V DC output, making it ideal for a wide range of applications.

Explore Projects Built with Power Supply

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
AC to DC Power Supply with Transformer and Bridge Rectifier
Image of BRIDGE RECTIFIER: A project utilizing Power Supply in a practical application
This circuit is a basic AC to DC power supply that steps down 220V AC to a lower voltage using a transformer, rectifies it to DC using a bridge rectifier made of diodes, and smooths the output with an electrolytic capacitor. A rocker switch is used to turn the power supply on and off.
Cirkit Designer LogoOpen Project in Cirkit Designer
USB-Powered DC Gear Motor with LED Indicator
Image of Hand Crank mobile charger : A project utilizing Power Supply in a practical application
This circuit appears to be a power supply unit with a bridge rectifier connected to a DC gear motor, indicating it is designed to convert AC to DC power for the motor. An electrolytic capacitor is used for smoothing the DC output, and a 7805 voltage regulator is included to provide a stable 5V output. Additionally, there is an LED with a series resistor, likely serving as a power indicator light.
Cirkit Designer LogoOpen Project in Cirkit Designer
Dual 5V Power Supply Distribution Circuit with Toggle Switch Control
Image of rfdriver: A project utilizing Power Supply in a practical application
This circuit consists of two 5V 5A power supplies connected to an AC wall plug point, providing DC output through a 12-way connector. The ground connections from both power supplies are interconnected and also connected to the ground pins of two toggle switches. The DC outputs from the power supplies are separately connected to different pins on the 12-way connector, with each power supply output being switchable via one of the toggle switches.
Cirkit Designer LogoOpen Project in Cirkit Designer
AC to DC Power Supply with Voltage Regulation and Overcurrent Protection
Image of PENGATUR VOLTAN: A project utilizing Power Supply in a practical application
This circuit appears to be a power supply unit with a transformer for stepping down voltage, a bridge rectifier for converting AC to DC, and a voltage regulator for stabilizing the output voltage. It includes a Zener diode for overvoltage protection, capacitors for smoothing out ripples in the DC supply, and a fuse for overcurrent protection. A toggle switch and a rocker switch are used to control the power flow, and there is an LED indicator connected through resistors, likely for power-on indication.
Cirkit Designer LogoOpen Project in Cirkit Designer

Explore Projects Built with Power Supply

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Image of BRIDGE RECTIFIER: A project utilizing Power Supply in a practical application
AC to DC Power Supply with Transformer and Bridge Rectifier
This circuit is a basic AC to DC power supply that steps down 220V AC to a lower voltage using a transformer, rectifies it to DC using a bridge rectifier made of diodes, and smooths the output with an electrolytic capacitor. A rocker switch is used to turn the power supply on and off.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Hand Crank mobile charger : A project utilizing Power Supply in a practical application
USB-Powered DC Gear Motor with LED Indicator
This circuit appears to be a power supply unit with a bridge rectifier connected to a DC gear motor, indicating it is designed to convert AC to DC power for the motor. An electrolytic capacitor is used for smoothing the DC output, and a 7805 voltage regulator is included to provide a stable 5V output. Additionally, there is an LED with a series resistor, likely serving as a power indicator light.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of rfdriver: A project utilizing Power Supply in a practical application
Dual 5V Power Supply Distribution Circuit with Toggle Switch Control
This circuit consists of two 5V 5A power supplies connected to an AC wall plug point, providing DC output through a 12-way connector. The ground connections from both power supplies are interconnected and also connected to the ground pins of two toggle switches. The DC outputs from the power supplies are separately connected to different pins on the 12-way connector, with each power supply output being switchable via one of the toggle switches.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of PENGATUR VOLTAN: A project utilizing Power Supply in a practical application
AC to DC Power Supply with Voltage Regulation and Overcurrent Protection
This circuit appears to be a power supply unit with a transformer for stepping down voltage, a bridge rectifier for converting AC to DC, and a voltage regulator for stabilizing the output voltage. It includes a Zener diode for overvoltage protection, capacitors for smoothing out ripples in the DC supply, and a fuse for overcurrent protection. A toggle switch and a rocker switch are used to control the power flow, and there is an LED indicator connected through resistors, likely for power-on indication.
Cirkit Designer LogoOpen Project in Cirkit Designer

Common Applications and Use Cases

  • Industrial automation systems
  • LED lighting systems
  • Robotics and motor controllers
  • Powering microcontrollers and sensors
  • Laboratory equipment and testing setups

Technical Specifications

The following table outlines the key technical details of the "220 to 24" power supply:

Parameter Specification
Input Voltage 220V AC ±10%
Output Voltage 24V DC ±5%
Output Current Up to 5A
Power Rating 120W
Efficiency ≥85%
Ripple and Noise ≤50mV
Operating Temperature -10°C to 50°C
Storage Temperature -20°C to 85°C
Protection Features Overload, Overvoltage, Short Circuit

Pin Configuration and Descriptions

The power supply typically has the following input and output terminals:

Pin/Terminal Description
L (Line) AC live input (220V AC)
N (Neutral) AC neutral input
GND (Ground) Earth/ground connection
+V Positive DC output (24V)
-V Negative DC output (0V, ground)

Usage Instructions

How to Use the Power Supply in a Circuit

  1. Input Connection:

    • Connect the "L" terminal to the live wire of the 220V AC source.
    • Connect the "N" terminal to the neutral wire of the AC source.
    • Optionally, connect the "GND" terminal to the earth/ground for safety.
  2. Output Connection:

    • Connect the "+V" terminal to the positive input of your circuit.
    • Connect the "-V" terminal to the ground or negative input of your circuit.
  3. Power On:

    • Ensure all connections are secure and insulated.
    • Turn on the AC power source to activate the power supply.
  4. Load Considerations:

    • Ensure the total load does not exceed the maximum output current (5A).
    • Use appropriate fuses or circuit breakers for added protection.

Important Considerations and Best Practices

  • Ventilation: Ensure proper airflow around the power supply to prevent overheating.
  • Mounting: Secure the power supply in a stable position to avoid vibrations or accidental disconnections.
  • Polarity: Double-check the polarity of the output connections to avoid damaging connected devices.
  • Testing: Use a multimeter to verify the output voltage before connecting sensitive electronics.
  • Safety: Always disconnect the power supply from the AC source before making any wiring changes.

Example: Connecting to an Arduino UNO

The "220 to 24" power supply can be used to power an Arduino UNO via a voltage regulator (e.g., LM7805) to step down 24V to 5V. Below is an example circuit and Arduino code:

Circuit Setup

  1. Connect the "+V" terminal of the power supply to the input pin of the LM7805 regulator.
  2. Connect the "-V" terminal of the power supply to the ground pin of the LM7805.
  3. Connect the output pin of the LM7805 to the 5V pin of the Arduino UNO.
  4. Connect the ground pin of the LM7805 to the GND pin of the Arduino UNO.

Arduino Code

// Example code to blink an LED connected to pin 13 of the Arduino UNO
// Ensure the Arduino is powered via the 5V output of the LM7805 regulator

void setup() {
  pinMode(13, OUTPUT); // Set pin 13 as an output
}

void loop() {
  digitalWrite(13, HIGH); // Turn the LED on
  delay(1000);            // Wait for 1 second
  digitalWrite(13, LOW);  // Turn the LED off
  delay(1000);            // Wait for 1 second
}

Troubleshooting and FAQs

Common Issues and Solutions

  1. No Output Voltage:

    • Check if the AC input is properly connected and powered.
    • Verify that the fuse (if present) is not blown.
    • Ensure the load does not exceed the power supply's maximum current rating.
  2. Overheating:

    • Ensure adequate ventilation and avoid placing the power supply in enclosed spaces.
    • Check for any short circuits or excessive load on the output.
  3. Output Voltage Fluctuations:

    • Verify the input voltage is stable and within the specified range.
    • Check for loose connections or damaged wires.
  4. Device Not Powering On:

    • Confirm the polarity of the output connections.
    • Test the output voltage with a multimeter to ensure it matches the expected value.

FAQs

Q1: Can this power supply be used outdoors?
A1: No, this power supply is not weatherproof. Use it in a dry, indoor environment.

Q2: What happens if the load exceeds 5A?
A2: The power supply's overload protection will activate, shutting down the output to prevent damage.

Q3: Can I use this power supply to charge batteries?
A3: Yes, but ensure the battery charging circuit includes proper current and voltage regulation.

Q4: Is it safe to operate the power supply continuously?
A4: Yes, as long as the load is within the specified limits and proper ventilation is provided.
