Introduction

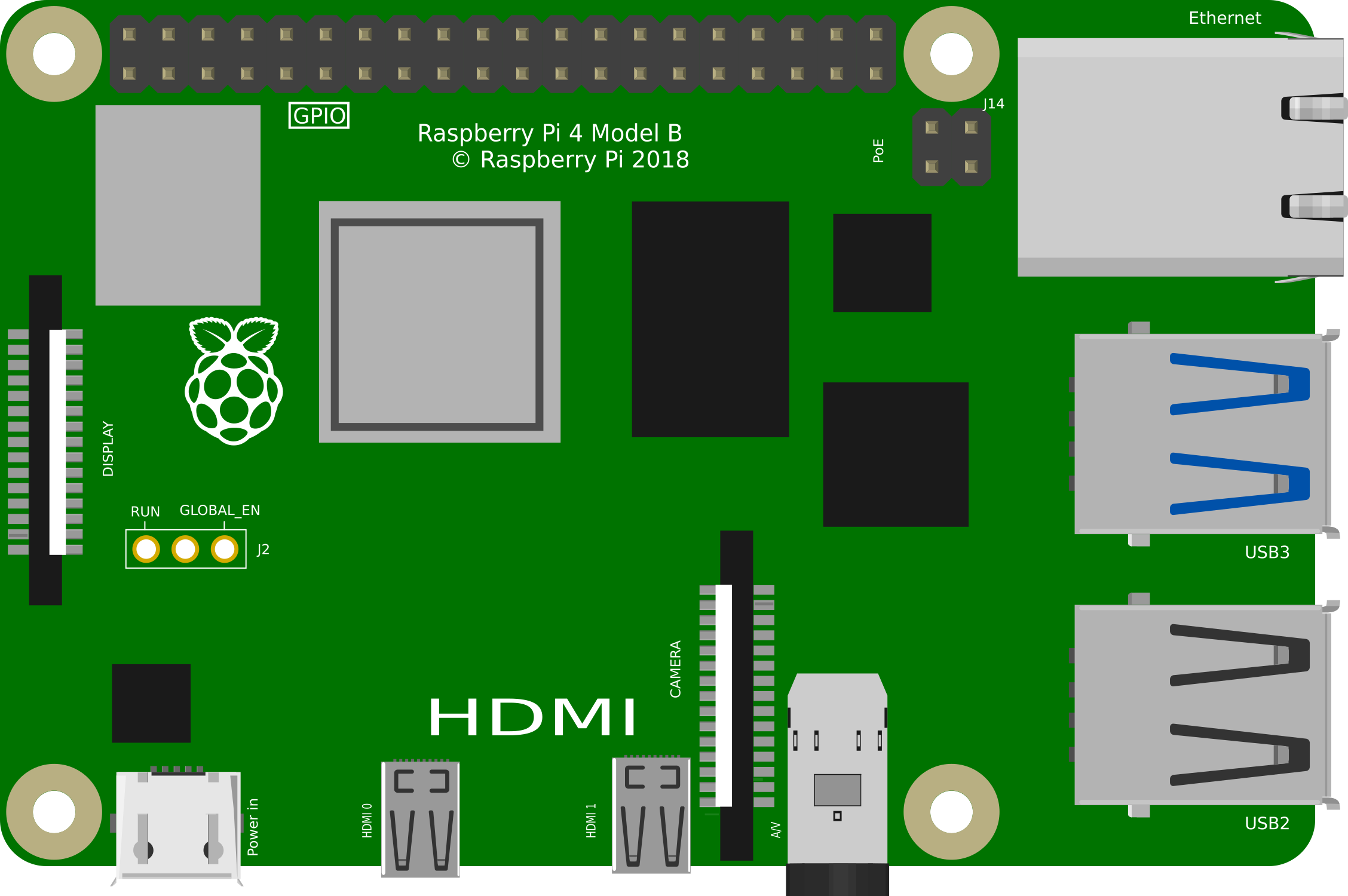

The Raspberry Pi 4B is a compact, affordable single-board computer designed for a wide range of applications. It features a powerful quad-core processor, up to 8GB of RAM, multiple USB ports, dual micro-HDMI outputs, and built-in Wi-Fi and Bluetooth connectivity. Its versatility makes it ideal for projects such as home automation, media centers, IoT devices, robotics, and educational purposes.

Common applications include:

• Building DIY media centers and streaming devices
• Hosting lightweight servers (e.g., web servers, file servers)
• Learning programming and electronics
• Prototyping IoT and embedded systems
• Running AI/ML models on edge devices

Explore Projects Built with Raspberry Pi 4B

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!

Raspberry Pi 4B-Controlled Relay System with Environmental Sensing and Power Monitoring

This circuit is designed to interface a Raspberry Pi 4B with various sensors and output devices. It includes a 4-channel relay for controlling external loads, an ADS1115 for analog-to-digital conversion of signals from a current sensor and a ZMPT101B voltage sensor, a DHT11 for temperature and humidity readings, and a 0.96" OLED display for data output. The Raspberry Pi 4B serves as the central controller, managing data acquisition from the sensors, processing the information, and driving the relay and display based on the sensor inputs and programmed logic.

Open Project in Cirkit Designer

Raspberry Pi 4B-Based Smart Surveillance System with GPS and Ultrasonic Sensing

This circuit features a Raspberry Pi 4B as the central processing unit, interfacing with an Arducam camera module, an HC-SR04 ultrasonic sensor, a GPS NEO 6M module, and a speaker. The Raspberry Pi manages image capture, distance measurement, GPS data reception, and audio output. Power is supplied to the components from a 2000mAh battery, and the Raspberry Pi facilitates communication and control over the I2C, GPIO, and serial interfaces.

Open Project in Cirkit Designer

Raspberry Pi 4B-based Payment Kiosk with Coin and Bill Acceptors

This circuit features a Raspberry Pi 4B as the central controller, interfaced with a variety of peripherals for a payment and display system. It includes a bill acceptor and multi coin acceptor for monetary input, a thermal printer for receipts, and a touch display for user interaction. The circuit also incorporates a 12V to 5V step-down converter to power the 5V components and a membrane matrix keypad for additional input options.

Open Project in Cirkit Designer

Raspberry Pi 4B Controlled RFID and Keypad Security System with I2C LCD Feedback and Motorized Lock Mechanism

This circuit features a Raspberry Pi 4B as the central controller, interfaced with an I2C LCD screen for display, an RFID-RC522 module for RFID reading, a 4x4 membrane matrix keypad for user input, and an L298N motor driver to control a DC motor. The Raspberry Pi manages data communication with the LCD via I2C, reads RFID tags, processes keypad inputs, and controls the motor's operation. Power is supplied to the motor driver and the Raspberry Pi through a 9V battery and regulated 5V connections.

Open Project in Cirkit Designer

Technical Specifications

The Raspberry Pi 4B offers the following key technical details:

General Specifications

GPIO Pin Configuration

The Raspberry Pi 4B features a 40-pin GPIO header. Below is the pinout:

For the full GPIO pinout, refer to the official Raspberry Pi documentation.

Usage Instructions

Setting Up the Raspberry Pi 4B

1. Prepare the MicroSD Card:

   • Download the Raspberry Pi OS from the official Raspberry Pi website.
   • Use a tool like Raspberry Pi Imager or Balena Etcher to flash the OS onto the microSD card.

2. Connect Peripherals:

   • Insert the microSD card into the Raspberry Pi.
   • Connect a monitor via one of the micro-HDMI ports.
   • Attach a keyboard and mouse to the USB ports.
   • Optionally, connect to a network via Ethernet or use built-in Wi-Fi.

3. Power On:

   • Connect a 5V/3A USB-C power supply to the Raspberry Pi.
   • The Raspberry Pi will boot into the Raspberry Pi OS setup screen.

4. Configure the System:

   • Follow the on-screen instructions to set up Wi-Fi, update the system, and configure regional settings.

Using GPIO Pins

The GPIO pins can be used to interface with sensors, LEDs, and other electronic components. Below is an example of controlling an LED using Python:

# Import the GPIO library
import RPi.GPIO as GPIO
import time

# Set the GPIO mode to BCM (Broadcom pin numbering)
GPIO.setmode(GPIO.BCM)

# Define the GPIO pin connected to the LED
LED_PIN = 18

# Set the LED pin as an output
GPIO.setup(LED_PIN, GPIO.OUT)

try:
    while True:
        GPIO.output(LED_PIN, GPIO.HIGH)  # Turn the LED on
        time.sleep(1)                   # Wait for 1 second
        GPIO.output(LED_PIN, GPIO.LOW)  # Turn the LED off
        time.sleep(1)                   # Wait for 1 second
except KeyboardInterrupt:
    # Clean up GPIO settings on exit
    GPIO.cleanup()

Best Practices

• Use a high-quality power supply to ensure stable operation.
• Avoid connecting components directly to GPIO pins without proper resistors or protection circuits.
• Regularly update the Raspberry Pi OS to ensure security and compatibility.

Troubleshooting and FAQs

Common Issues

1. The Raspberry Pi does not boot:

   • Ensure the microSD card is properly inserted.
   • Verify that the microSD card contains a valid Raspberry Pi OS image.
   • Check the power supply for sufficient voltage and current.

2. No display on the monitor:

   • Confirm the micro-HDMI cable is securely connected.
   • Ensure the monitor is set to the correct input source.
   • Try using the other micro-HDMI port.

3. Wi-Fi connectivity issues:

   • Verify the Wi-Fi credentials are correct.
   • Check if the router is within range.
   • Update the Raspberry Pi OS to resolve potential driver issues.

FAQs

Q: Can I power the Raspberry Pi 4B via GPIO pins?
A: Yes, you can power the Raspberry Pi using the 5V and GND pins on the GPIO header. However, this bypasses the onboard power management, so ensure a stable 5V supply.

Q: What is the maximum resolution supported by the Raspberry Pi 4B?
A: The Raspberry Pi 4B supports dual 4K displays at 60Hz via its micro-HDMI ports.

Q: Can I use the Raspberry Pi 4B for AI/ML projects?
A: Yes, the Raspberry Pi 4B is capable of running lightweight AI/ML models, especially when paired with tools like TensorFlow Lite or an external accelerator like the Coral USB Accelerator.

Q: How do I reset the Raspberry Pi 4B?
A: You can reset the Raspberry Pi by disconnecting and reconnecting the power supply. Alternatively, you can use a reset button if one is added to the GPIO pins.

This concludes the documentation for the Raspberry Pi 4B. For further details, refer to the official Raspberry Pi website.
