How to Use IRFZ44N: Examples, Pinouts, and Specs

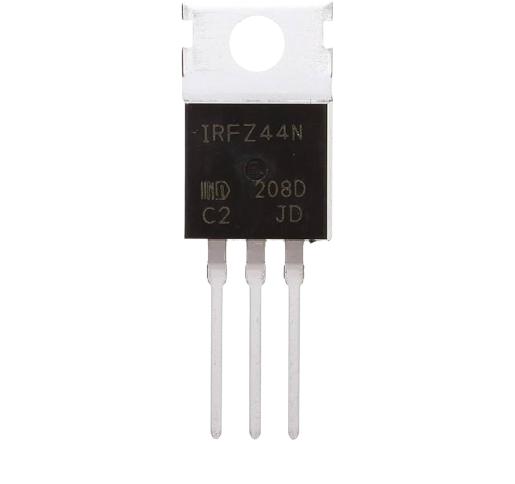

Image of IRFZ44NDesign with IRFZ44N in Cirkit Designer

Introduction

The IRFZ44N is an N-channel MOSFET (Metal-Oxide-Semiconductor Field-Effect Transistor) designed for high-speed switching applications. It is widely used in circuits requiring efficient power management due to its low on-resistance and high current handling capabilities. With a maximum drain-source voltage of 55V and a continuous drain current of up to 49A, the IRFZ44N is ideal for motor control, DC-DC converters, and other high-power applications.

Explore Projects Built with IRFZ44N

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Image of Pixhawk-Controlled Solenoid Driver with Voltage Regulation: A project utilizing IRFZ44N in a practical application
Pixhawk-Controlled Solenoid Driver with Voltage Regulation

This circuit uses an LM393 comparator to drive an IRFZ44N MOSFET based on the comparison between two input signals from a pixhawk 2.4.8 flight controller. The MOSFET switches a solenoid, with a diode for back EMF protection, and the system is powered by a Lipo battery with voltage regulation provided by a step-up boost converter and a step-down voltage regulator to ensure stable operation. A resistor is connected to the gate of the MOSFET for proper biasing.

Open Project in Cirkit Designer

Common Applications

Technical Specifications

Key Specifications

Parameter Value
Type N-Channel MOSFET
Maximum Drain-Source Voltage (VDS) 55V
Maximum Gate-Source Voltage (VGS) ±20V
Continuous Drain Current (ID) 49A (at 25°C)
Pulsed Drain Current (IDM) 160A
Power Dissipation (PD) 94W
On-Resistance (RDS(on)) 17.5 mΩ (at VGS = 10V)
Gate Threshold Voltage (VGS(th)) 2.0V - 4.0V
Operating Temperature Range -55°C to +175°C
Package Type TO-220

Pin Configuration

The IRFZ44N is available in a TO-220 package with three pins. The pinout is as follows:

Pin Number Pin Name Description
1 Gate Controls the MOSFET switching
2 Drain Current flows into this pin
3 Source Current flows out of this pin

Usage Instructions

How to Use the IRFZ44N in a Circuit

  1. Gate Control: Apply a voltage to the Gate (Pin 1) to control the MOSFET. A voltage of at least 10V is recommended for full switching performance.
  2. Drain-Source Connection: Connect the load between the Drain (Pin 2) and the positive supply voltage. The Source (Pin 3) is connected to ground.
  3. Gate Resistor: Use a resistor (typically 10Ω to 100Ω) between the Gate and the control signal to limit inrush current and prevent damage to the MOSFET.
  4. Flyback Diode: For inductive loads (e.g., motors), add a flyback diode across the load to protect the MOSFET from voltage spikes.

Example Circuit with Arduino UNO

The IRFZ44N can be used to control a DC motor with an Arduino UNO. Below is an example circuit and code:

Circuit Connections

Arduino Code

// Define the pin connected to the MOSFET Gate
const int mosfetGatePin = 9;

void setup() {
  // Set the MOSFET Gate pin as an output
  pinMode(mosfetGatePin, OUTPUT);
}

void loop() {
  // Turn the motor ON by setting the Gate HIGH
  digitalWrite(mosfetGatePin, HIGH);
  delay(2000); // Keep the motor ON for 2 seconds

  // Turn the motor OFF by setting the Gate LOW
  digitalWrite(mosfetGatePin, LOW);
  delay(2000); // Keep the motor OFF for 2 seconds
}

Important Considerations

Troubleshooting and FAQs

Common Issues and Solutions

  1. MOSFET Not Switching Properly

    • Cause: Insufficient Gate voltage.
    • Solution: Ensure the Gate voltage is at least 10V for full switching. If using a microcontroller with a 5V logic level, consider using a Gate driver circuit.
  2. MOSFET Overheating

    • Cause: High current or insufficient cooling.
    • Solution: Use a heatsink or active cooling. Check the load current and ensure it is within the MOSFET's rated limits.
  3. Motor Not Running

    • Cause: Incorrect wiring or damaged MOSFET.
    • Solution: Double-check the circuit connections. Test the MOSFET with a multimeter to ensure it is functioning.
  4. Voltage Spikes Damaging the MOSFET

    • Cause: Inductive load without a flyback diode.
    • Solution: Add a flyback diode across the load to suppress voltage spikes.

FAQs

Q1: Can the IRFZ44N be driven directly by a 3.3V microcontroller?
A1: No, the IRFZ44N requires a Gate voltage of at least 10V for optimal performance. Use a Gate driver or a logic-level MOSFET for 3.3V systems.

Q2: What is the maximum current the IRFZ44N can handle?
A2: The IRFZ44N can handle up to 49A continuously at 25°C, but this requires proper cooling (e.g., a heatsink).

Q3: Can I use the IRFZ44N for AC applications?
A3: The IRFZ44N is primarily designed for DC applications. For AC applications, consider using an H-bridge circuit or a TRIAC.

Q4: Why is a resistor needed between the Gate and the control signal?
A4: The resistor limits the inrush current to the Gate, protecting both the MOSFET and the control circuit from damage.

By following this documentation, you can effectively use the IRFZ44N in your electronic projects!
