How to Use W5500: Examples, Pinouts, and Specs

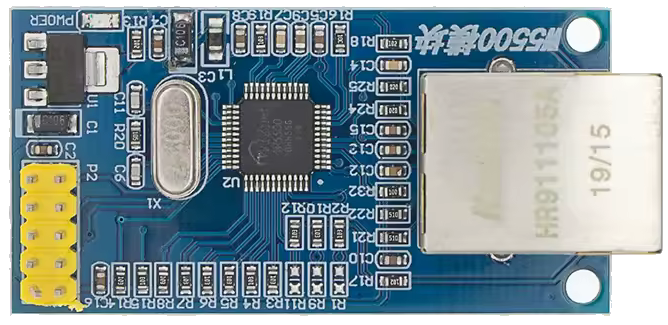

Image of W5500
Cirkit Designer LogoDesign with W5500 in Cirkit Designer

Introduction

The W5500 is a standalone Ethernet controller designed to simplify the process of connecting microcontrollers to the internet. It features an integrated TCP/IP stack, which supports essential network protocols such as TCP, UDP, ICMP, IPv4, ARP, IGMP, and PPPoE. The W5500 is highly efficient, offering multiple socket connections (up to 8 simultaneous sockets) and a high-speed SPI interface for seamless communication with microcontrollers.

Explore Projects Built with W5500

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
ESP32 and W5500 Ethernet Module Controlled 8-Channel Relay
Image of ESP32 38Pin 8 Channel Relay USB-C: A project utilizing W5500 in a practical application
This circuit enables Ethernet connectivity and device control through an ESP32 microcontroller. It uses the W5500 Ethernet module for network communication and controls an 8-channel relay module for switching external devices or loads.
Cirkit Designer LogoOpen Project in Cirkit Designer
ESP32-Based Environmental Monitoring and Home Automation System with Ethernet Connectivity
Image of ESP32 30Pin 3Phase AC Box W5500 Ethernet Standard: A project utilizing W5500 in a practical application
This circuit features an ESP32 microcontroller interfaced with a W5500 Ethernet module for network connectivity, a DHT22 sensor for measuring temperature and humidity, a ZMPT101B module for AC voltage sensing, and an Adafruit SHTC3 sensor for additional temperature and humidity readings. The ESP32 also controls a 4-channel relay module for switching external devices. The sensors and Ethernet module communicate with the ESP32 via GPIO pins, with the W5500 using SPI and the SHTC3 using I2C. Common ground and power lines are shared among the components.
Cirkit Designer LogoOpen Project in Cirkit Designer
ESP32-Based Smart Ethernet Weather Station with DHT22 Sensor and Relay Control
Image of ESP32 Single and Double AC with Temp 30Pin Micro and USBC: A project utilizing W5500 in a practical application
This circuit features an ESP32 microcontroller interfaced with a W5500 Ethernet module, a DHT22 temperature and humidity sensor, and a 2-channel relay module. The ESP32 is configured to communicate with the W5500 module via SPI for network connectivity, read sensor data from the DHT22, and control devices through the relay module. The purpose of this circuit is likely for environmental monitoring and control over a network.
Cirkit Designer LogoOpen Project in Cirkit Designer
Raspberry Pi 5 Ethernet Module Integration for Enhanced Connectivity
Image of w5500: A project utilizing W5500 in a practical application
This circuit connects a Raspberry Pi 5 to a W5500 Ethernet module, enabling Ethernet connectivity. The Raspberry Pi communicates with the W5500 via SPI interface, and a resistor is used to manage the reset signal for the Ethernet module.
Cirkit Designer LogoOpen Project in Cirkit Designer

Explore Projects Built with W5500

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Image of ESP32 38Pin 8 Channel Relay USB-C: A project utilizing W5500 in a practical application
ESP32 and W5500 Ethernet Module Controlled 8-Channel Relay
This circuit enables Ethernet connectivity and device control through an ESP32 microcontroller. It uses the W5500 Ethernet module for network communication and controls an 8-channel relay module for switching external devices or loads.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of ESP32 30Pin 3Phase AC Box W5500 Ethernet Standard: A project utilizing W5500 in a practical application
ESP32-Based Environmental Monitoring and Home Automation System with Ethernet Connectivity
This circuit features an ESP32 microcontroller interfaced with a W5500 Ethernet module for network connectivity, a DHT22 sensor for measuring temperature and humidity, a ZMPT101B module for AC voltage sensing, and an Adafruit SHTC3 sensor for additional temperature and humidity readings. The ESP32 also controls a 4-channel relay module for switching external devices. The sensors and Ethernet module communicate with the ESP32 via GPIO pins, with the W5500 using SPI and the SHTC3 using I2C. Common ground and power lines are shared among the components.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of ESP32 Single and Double AC with Temp 30Pin Micro and USBC: A project utilizing W5500 in a practical application
ESP32-Based Smart Ethernet Weather Station with DHT22 Sensor and Relay Control
This circuit features an ESP32 microcontroller interfaced with a W5500 Ethernet module, a DHT22 temperature and humidity sensor, and a 2-channel relay module. The ESP32 is configured to communicate with the W5500 module via SPI for network connectivity, read sensor data from the DHT22, and control devices through the relay module. The purpose of this circuit is likely for environmental monitoring and control over a network.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of w5500: A project utilizing W5500 in a practical application
Raspberry Pi 5 Ethernet Module Integration for Enhanced Connectivity
This circuit connects a Raspberry Pi 5 to a W5500 Ethernet module, enabling Ethernet connectivity. The Raspberry Pi communicates with the W5500 via SPI interface, and a resistor is used to manage the reset signal for the Ethernet module.
Cirkit Designer LogoOpen Project in Cirkit Designer

Common Applications and Use Cases

  • IoT (Internet of Things) devices requiring Ethernet connectivity
  • Industrial automation systems
  • Home automation and smart appliances
  • Network-enabled embedded systems
  • Data logging and remote monitoring systems

Technical Specifications

Key Technical Details

Parameter Value
Supply Voltage 3.3V (±5%)
Operating Current 132 mA (typical)
SPI Clock Speed Up to 80 MHz
Number of Sockets 8 simultaneous connections
Network Protocols TCP, UDP, ICMP, IPv4, ARP, IGMP, PPPoE
Ethernet Speed 10/100 Mbps
Package Type LQFP-48 or QFN-48
Operating Temperature -40°C to +85°C

Pin Configuration and Descriptions

The W5500 has 48 pins, but the most commonly used pins for interfacing are listed below:

Pin Name Pin Number Description
VDD 1 3.3V power supply input
GND 2, 13, 25 Ground
SCLK 10 SPI clock input
MOSI 11 SPI master-out, slave-in
MISO 12 SPI master-in, slave-out
CS 9 Chip select (active low)
RESET 8 Reset input (active low)
INT 7 Interrupt output (active low)
TX+ 43 Ethernet transmit positive
TX- 44 Ethernet transmit negative
RX+ 45 Ethernet receive positive
RX- 46 Ethernet receive negative

Usage Instructions

How to Use the W5500 in a Circuit

  1. Power Supply: Connect the VDD pin to a stable 3.3V power source and GND to ground.
  2. SPI Interface: Connect the SPI pins (SCLK, MOSI, MISO, and CS) to the corresponding SPI pins on your microcontroller.
  3. Ethernet Connection: Connect the TX+/TX- and RX+/RX- pins to an Ethernet transformer or RJ45 connector for network communication.
  4. Reset and Interrupt: Use the RESET pin to initialize the W5500 and the INT pin to handle interrupts.
  5. Crystal Oscillator: Connect a 25 MHz crystal oscillator to the XTAL1 and XTAL2 pins for clock generation.

Important Considerations and Best Practices

  • Use decoupling capacitors (e.g., 0.1 µF) near the VDD pin to stabilize the power supply.
  • Ensure proper impedance matching for Ethernet signals to minimize signal loss.
  • Use pull-up resistors on the CS and RESET pins to prevent floating states.
  • Keep SPI traces short and properly routed to avoid signal integrity issues.
  • Use a proper Ethernet transformer for isolation and signal conditioning.

Example Code for Arduino UNO

Below is an example of how to use the W5500 with an Arduino UNO to establish a basic Ethernet connection:

#include <SPI.h>
#include <Ethernet.h>

// MAC address and IP address for the W5500
byte mac[] = { 0xDE, 0xAD, 0xBE, 0xEF, 0xFE, 0xED };
IPAddress ip(192, 168, 1, 177);

// Initialize the Ethernet server on port 80
EthernetServer server(80);

void setup() {
  // Start the serial communication for debugging
  Serial.begin(9600);

  // Initialize the Ethernet shield with the MAC and IP address
  if (Ethernet.begin(mac) == 0) {
    Serial.println("Failed to configure Ethernet using DHCP");
    // Manually configure the IP address if DHCP fails
    Ethernet.begin(mac, ip);
  }

  // Start the server
  server.begin();
  Serial.print("Server is at ");
  Serial.println(Ethernet.localIP());
}

void loop() {
  // Listen for incoming clients
  EthernetClient client = server.available();
  if (client) {
    Serial.println("New client connected");
    while (client.connected()) {
      if (client.available()) {
        char c = client.read();
        Serial.write(c); // Echo the received data to the serial monitor

        // Respond to the client
        client.println("HTTP/1.1 200 OK");
        client.println("Content-Type: text/html");
        client.println();
        client.println("<h1>Hello from W5500!</h1>");
        break;
      }
    }
    // Close the connection
    client.stop();
    Serial.println("Client disconnected");
  }
}

Notes:

  • Replace the mac and ip values with your network's configuration.
  • Ensure the Ethernet cable is properly connected to the W5500 and your network.

Troubleshooting and FAQs

Common Issues and Solutions

  1. No Ethernet Connection:

    • Verify the Ethernet cable is securely connected.
    • Check the power supply voltage (3.3V) and ensure it is stable.
    • Confirm the SPI connections between the W5500 and the microcontroller.
  2. DHCP Fails to Assign an IP Address:

    • Ensure the W5500 is connected to a network with a DHCP server.
    • Use a static IP address if DHCP is unavailable.
  3. Interrupts Not Working:

    • Check the INT pin connection and ensure it is properly configured in the code.
    • Verify that the microcontroller's interrupt settings match the W5500's configuration.
  4. Data Transmission Errors:

    • Ensure proper impedance matching for Ethernet signals.
    • Check for noise or interference on the SPI lines.

FAQs

Q: Can the W5500 work with 5V microcontrollers?
A: Yes, but you need to use level shifters or voltage dividers on the SPI lines to ensure compatibility with the 3.3V logic of the W5500.

Q: How many devices can the W5500 communicate with simultaneously?
A: The W5500 supports up to 8 simultaneous socket connections.

Q: Does the W5500 support IPv6?
A: No, the W5500 only supports IPv4.

Q: Can I use the W5500 with other microcontrollers besides Arduino?
A: Yes, the W5500 can be used with any microcontroller that supports SPI communication.
