How to Use DC-DC Converter DDR-60L-12: Examples, Pinouts, and Specs

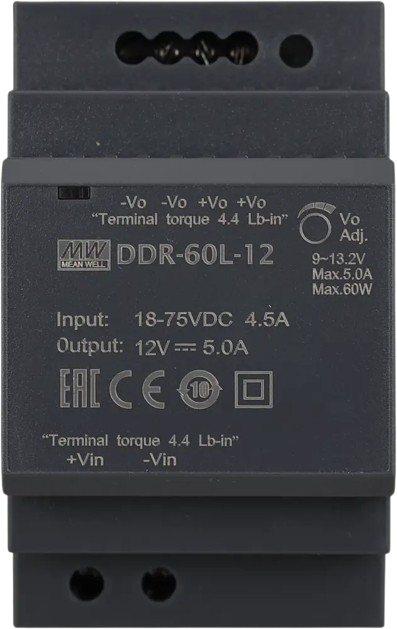

The Mean Well DDR-60L-12 is a compact, high-efficiency DC-DC converter designed to step down voltage levels while providing a stable 12V DC output. This component is ideal for applications requiring reliable power conversion in industrial control systems, telecommunications, and battery-powered devices. Its robust design ensures high performance and durability in demanding environments.

• Industrial automation and control systems
• Telecommunications equipment
• Battery-powered devices and systems
• Renewable energy systems
• Embedded systems requiring stable 12V DC power

The following table outlines the key technical specifications of the DDR-60L-12:

The DDR-60L-12 features a screw terminal block for input and output connections. Below is the pin configuration:

1. Input Voltage Connection: Connect the input voltage source (9 ~ 36V DC) to the +V Input and -V Input terminals. Ensure the input voltage is within the specified range to avoid damage.
2. Output Voltage Connection: Connect the load to the +V Output and -V Output terminals. The output will provide a stable 12V DC.
3. Mounting: Secure the converter to a DIN rail or a suitable mounting surface. Ensure proper ventilation to prevent overheating.
4. Power On: Once all connections are secure, power on the input source. The converter will regulate the input voltage and provide a stable 12V output.

• Input Voltage Range: Always ensure the input voltage is within the specified range (9 ~ 36V DC). Exceeding this range may damage the converter.
• Load Requirements: Do not exceed the maximum output current of 5A or the maximum output power of 60W.
• Ventilation: Ensure adequate airflow around the converter to maintain optimal operating temperatures.
• Polarity: Double-check the polarity of the input and output connections to avoid damage to the converter or connected devices.
• Protection Features: The DDR-60L-12 includes overload, overvoltage, and short-circuit protection. However, it is recommended to use external fuses for additional safety.

The DDR-60L-12 can be used to power an Arduino UNO by providing a stable 12V DC supply. Below is an example circuit and code:

1. Connect the +V Output of the DDR-60L-12 to the Arduino UNO's VIN pin.
2. Connect the -V Output of the DDR-60L-12 to the Arduino UNO's GND pin.
3. Ensure the input voltage to the DDR-60L-12 is within the range of 9 ~ 36V DC.

// Example code for Arduino UNO powered by DDR-60L-12
// This code blinks an LED connected to pin 13

void setup() {
  pinMode(13, OUTPUT); // Set pin 13 as an output
}

void loop() {
  digitalWrite(13, HIGH); // Turn the LED on
  delay(1000);            // Wait for 1 second
  digitalWrite(13, LOW);  // Turn the LED off
  delay(1000);            // Wait for 1 second
}

1. Can the DDR-60L-12 be used with a 24V battery system?
   Yes, the DDR-60L-12 supports input voltages up to 36V DC, making it compatible with 24V battery systems.

2. What happens if the input voltage exceeds 36V?
   The converter may be damaged. Always ensure the input voltage stays within the specified range.

3. Is the DDR-60L-12 suitable for outdoor use?
   The DDR-60L-12 is not weatherproof. If used outdoors, it must be housed in a weatherproof enclosure.

4. Can I use the DDR-60L-12 to power multiple devices?
   Yes, as long as the total load does not exceed 5A or 60W.

By following this documentation, users can effectively integrate the DDR-60L-12 into their projects and ensure reliable performance.
