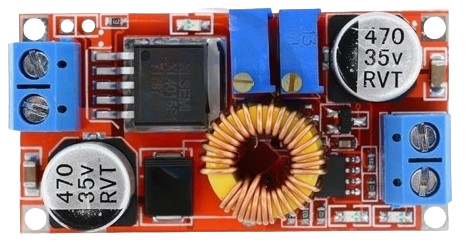

How to Use Buck : Examples, Pinouts, and Specs

A buck converter is a type of DC-DC converter that steps down voltage while stepping up current, efficiently converting a higher input voltage to a lower output voltage. It is widely used in power supply systems due to its high efficiency and compact design. Buck converters are commonly found in applications such as battery-powered devices, voltage regulation for microcontrollers, and power management in industrial and automotive systems.

• Powering microcontrollers and sensors in embedded systems
• Voltage regulation in battery-operated devices
• Power supply for LED drivers
• Industrial and automotive power management
• Renewable energy systems (e.g., solar charge controllers)

• Input Voltage Range: Typically 4.5V to 40V (varies by model)
• Output Voltage Range: Adjustable or fixed, typically 0.8V to 36V
• Output Current: Up to 10A or more, depending on the design
• Efficiency: Up to 95% or higher
• Switching Frequency: 100 kHz to 1 MHz (varies by model)
• Operating Temperature: -40°C to 125°C (varies by model)

Below is a typical pinout for a buck converter IC (e.g., LM2596). Note that the exact pin configuration may vary depending on the specific model.

1. Input Voltage Connection: Connect the input voltage source (e.g., a battery or DC power supply) to the VIN pin. Ensure the input voltage is within the specified range of the buck converter.
2. Output Voltage Adjustment: If the buck converter has an adjustable output, use a resistor divider network connected to the FB pin to set the desired output voltage. Refer to the datasheet for the formula to calculate resistor values.
3. Output Load Connection: Connect the load (e.g., microcontroller, LED, or motor) to the VOUT pin.
4. Enable Pin: If the converter has an EN pin, connect it to a logic HIGH signal to enable the converter. Leave it floating or connect it to GND to disable the converter.
5. Capacitors: Place input and output capacitors close to the VIN and VOUT pins to stabilize the voltage and reduce noise. Use values recommended in the datasheet.
6. Inductor Selection: Choose an inductor with the appropriate inductance and current rating as specified in the datasheet.

• Thermal Management: Buck converters can generate heat during operation. Use a heatsink or ensure proper ventilation if necessary.
• Input Voltage Ripple: Use a low-ESR capacitor at the input to minimize voltage ripple.
• Output Voltage Ripple: Use a low-ESR capacitor at the output to reduce ripple and noise.
• Switching Frequency: Ensure the switching frequency is appropriate for your application to balance efficiency and size.

Below is an example of how to use a buck converter to power an Arduino UNO with a 12V input source.

• Connect the 12V input source to the VIN pin of the buck converter.
• Adjust the output voltage of the buck converter to 5V using the feedback resistor network.
• Connect the VOUT pin of the buck converter to the 5V pin of the Arduino UNO.
• Connect the GND pin of the buck converter to the GND pin of the Arduino UNO.

// Example code to blink an LED connected to pin 13 of Arduino UNO
// Ensure the Arduino is powered via the buck converter (5V output)

void setup() {
  pinMode(13, OUTPUT); // Set pin 13 as an output
}

void loop() {
  digitalWrite(13, HIGH); // Turn the LED on
  delay(1000);            // Wait for 1 second
  digitalWrite(13, LOW);  // Turn the LED off
  delay(1000);            // Wait for 1 second
}

1. No Output Voltage:

   • Check if the input voltage is within the specified range.
   • Ensure the EN pin is connected to a logic HIGH signal.
   • Verify the connections and ensure the load is properly connected.

2. Excessive Heat:

   • Ensure the buck converter is not overloaded. Check the output current rating.
   • Use a heatsink or improve ventilation around the converter.

3. Output Voltage Instability:

   • Verify the values of the input and output capacitors. Use low-ESR capacitors as recommended.
   • Check the feedback resistor network for proper configuration.

4. High Output Voltage Ripple:

   • Increase the value of the output capacitor or use a capacitor with lower ESR.
   • Ensure the inductor value matches the design requirements.

• Q: Can I use a buck converter to power a 3.3V device?

  • A: Yes, as long as the buck converter supports an output voltage of 3.3V and the input voltage is higher than 3.3V.

• Q: What happens if the input voltage drops below the specified range?

  • A: The buck converter may stop regulating properly, and the output voltage may drop or become unstable.

• Q: Can I use a buck converter with an AC input?

  • A: No, buck converters are designed for DC input. Use a rectifier and filter circuit to convert AC to DC before using a buck converter.

• Q: How do I calculate the feedback resistor values for an adjustable buck converter?

  • A: Refer to the datasheet of the specific buck converter IC. It typically provides a formula for calculating the resistor values based on the desired output voltage.
