How to Use PH Meter: Examples, Pinouts, and Specs

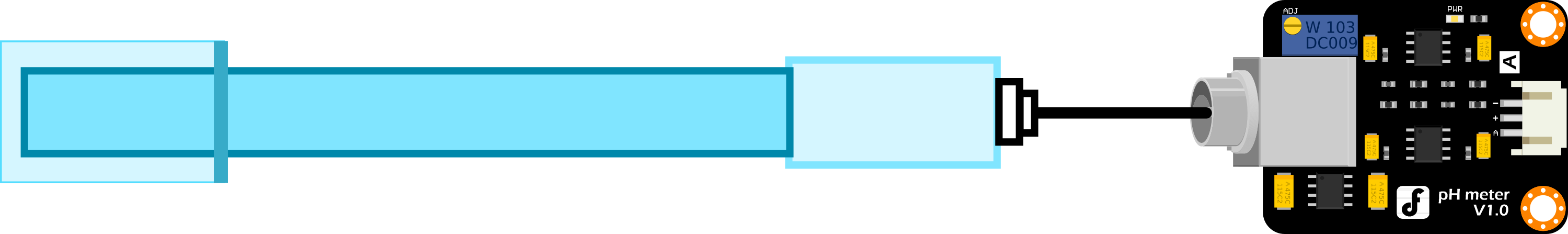

A pH meter is an electronic device used to measure the acidity or alkalinity of a solution, providing a pH reading on a scale from 0 to 14. It is widely used in various fields, including environmental monitoring, agriculture, food and beverage production, water treatment, and laboratory research. The pH meter typically consists of a probe (electrode) and a digital or analog display unit.

• Monitoring soil pH in agriculture to optimize crop growth.
• Measuring pH levels in aquariums and swimming pools.
• Ensuring proper pH levels in food and beverage production.
• Testing water quality in environmental studies.
• Conducting chemical experiments in laboratories.

Below are the general technical specifications for a typical pH meter:

For a pH meter module commonly used with microcontrollers like Arduino, the pin configuration is as follows:

1. Connect the pH Meter Module:

   • Connect the VCC pin to the 5V pin of your microcontroller (e.g., Arduino UNO).
   • Connect the GND pin to the ground (GND) of the microcontroller.
   • Connect the AO pin to an analog input pin (e.g., A0) on the microcontroller.

2. Calibrate the pH Meter:

   • Immerse the pH probe in a standard buffer solution (e.g., pH 7.0).
   • Adjust the calibration potentiometer on the module until the output matches the expected pH value.
   • Repeat the process with a second buffer solution (e.g., pH 4.0 or pH 10.0) for more accurate calibration.

3. Measure pH:

   • Immerse the probe in the solution to be tested.
   • Read the analog voltage output from the AO pin and convert it to a pH value using the formula provided in the code.

• Always rinse the pH probe with distilled water before and after use to prevent contamination.
• Store the probe in a pH storage solution when not in use to maintain its accuracy and lifespan.
• Avoid exposing the probe to extreme temperatures or harsh chemicals.
• Perform regular calibration to ensure accurate readings.

Below is an example code to interface a pH meter module with an Arduino UNO:

// Include necessary libraries (if any)

// Define the analog pin connected to the pH meter module
const int pH_Pin = A0;

// Define variables for voltage and pH value
float voltage = 0.0;
float pH_Value = 0.0;

void setup() {
  // Initialize serial communication for debugging
  Serial.begin(9600);
}

void loop() {
  // Read the analog value from the pH meter module
  int sensorValue = analogRead(pH_Pin);

  // Convert the analog value to voltage (assuming 5V reference)
  voltage = sensorValue * (5.0 / 1023.0);

  // Convert the voltage to pH value using a calibration formula
  // Note: Adjust the formula based on your calibration results
  pH_Value = 3.5 * voltage + 0.0; // Example formula, adjust as needed

  // Print the pH value to the Serial Monitor
  Serial.print("pH Value: ");
  Serial.println(pH_Value);

  // Add a delay for stability
  delay(1000);
}

1. Inaccurate Readings:

   • Cause: The pH probe is not calibrated.
   • Solution: Perform a two-point or three-point calibration using standard buffer solutions.

2. Fluctuating or Unstable Readings:

   • Cause: Electrical noise or improper grounding.
   • Solution: Ensure proper grounding and use shielded cables if necessary.

3. No Output or Constant Value:

   • Cause: Faulty connections or damaged probe.
   • Solution: Check all connections and replace the probe if necessary.

4. Probe Drying Out:

   • Cause: The probe was not stored in a storage solution.
   • Solution: Rehydrate the probe by soaking it in a pH storage solution for several hours.

Q: How often should I calibrate the pH meter?
A: It is recommended to calibrate the pH meter before each use or at least once a week for consistent accuracy.

Q: Can I use tap water to rinse the probe?
A: No, always use distilled or deionized water to rinse the probe to avoid contamination.

Q: What is the lifespan of a pH probe?
A: A typical pH probe lasts 1-2 years with proper care and maintenance.

Q: Can I use the pH meter for high-temperature solutions?
A: Most pH probes are designed for temperatures up to 50°C. Check the specifications of your probe before use.
