How to Use Servo : Examples, Pinouts, and Specs

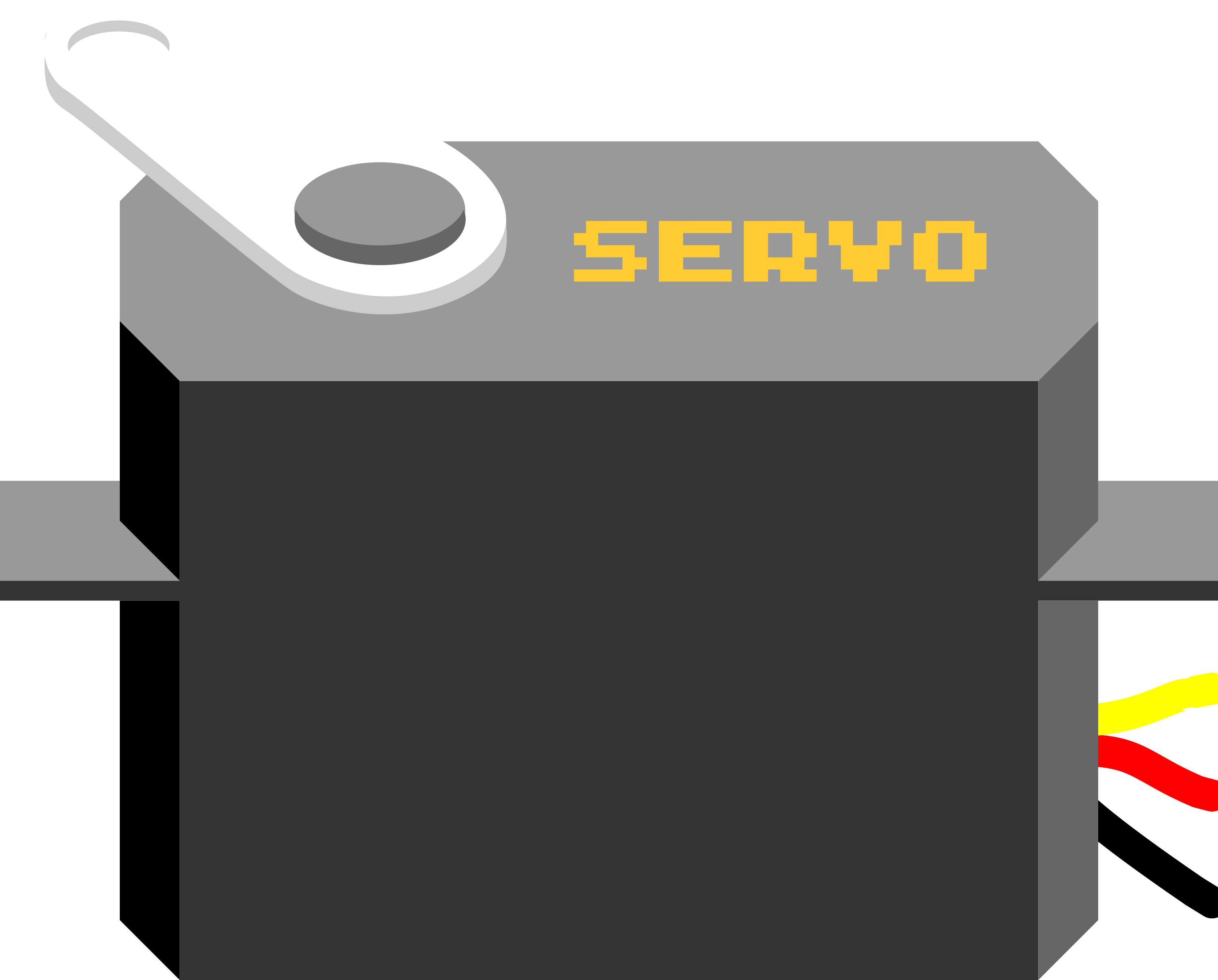

Image of Servo
Cirkit Designer LogoDesign with Servo in Cirkit Designer

Introduction

A servo is a rotary actuator that allows for precise control of angular position, velocity, and acceleration. It consists of a motor coupled to a sensor for position feedback, along with a control circuit. Servos are widely used in robotics, automation, remote-controlled vehicles, and industrial machinery due to their ability to provide accurate and repeatable motion.

Explore Projects Built with Servo

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Arduino Mega 2560 Controlled Multi-Servo Random Positioning System
Image of robotic: A project utilizing Servo  in a practical application
This circuit consists of an Arduino Mega 2560 microcontroller connected to twelve servo motors, each individually controlled by a distinct PWM pin on the Arduino. The servos are powered by a single Polymer Lithium Ion Battery, with all servos sharing a common power (VCC) and ground (GND) connection. The embedded code on the Arduino is designed to randomly position each servo within a 0 to 180-degree range, with a random delay between movements, demonstrating a multi-servo control system possibly for applications like robotics or animatronics.
Cirkit Designer LogoOpen Project in Cirkit Designer
Battery-Powered ESP32-S3 Controlled Servo System with gForceJoint UART
Image of Copy of Oymotion: A project utilizing Servo  in a practical application
This circuit is a servo control system powered by a 4 x AAA battery pack, regulated by a step-down DC regulator. An ESP32-S3 microcontroller controls five servos and communicates with a gForceJoint UART sensor, enabling precise servo movements based on sensor inputs.
Cirkit Designer LogoOpen Project in Cirkit Designer
Arduino UNO Controlled Servo Motor
Image of lblblblb: A project utilizing Servo  in a practical application
This circuit consists of an Arduino UNO microcontroller connected to a servo motor. The Arduino provides power (5V) and ground connections to the servo, as well as a control signal through one of its digital pins (D6). The embedded code on the Arduino is set up to control the servo's position, sending it to a fixed angle upon each loop iteration.
Cirkit Designer LogoOpen Project in Cirkit Designer
Arduino-Controlled Multi-Servo System
Image of Mind controlled robotic arm: A project utilizing Servo  in a practical application
This circuit consists of an Arduino UNO microcontroller connected to five servo motors. The servos are powered by the Arduino's 5V output and share a common ground. Each servo's PWM control pin is individually connected to a digital pin on the Arduino (D8, D9, D10, D11, D12), allowing for independent control of each servo's position. The Arduino is also connected to a laptop via USB for programming and power.
Cirkit Designer LogoOpen Project in Cirkit Designer

Explore Projects Built with Servo

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Image of robotic: A project utilizing Servo  in a practical application
Arduino Mega 2560 Controlled Multi-Servo Random Positioning System
This circuit consists of an Arduino Mega 2560 microcontroller connected to twelve servo motors, each individually controlled by a distinct PWM pin on the Arduino. The servos are powered by a single Polymer Lithium Ion Battery, with all servos sharing a common power (VCC) and ground (GND) connection. The embedded code on the Arduino is designed to randomly position each servo within a 0 to 180-degree range, with a random delay between movements, demonstrating a multi-servo control system possibly for applications like robotics or animatronics.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Copy of Oymotion: A project utilizing Servo  in a practical application
Battery-Powered ESP32-S3 Controlled Servo System with gForceJoint UART
This circuit is a servo control system powered by a 4 x AAA battery pack, regulated by a step-down DC regulator. An ESP32-S3 microcontroller controls five servos and communicates with a gForceJoint UART sensor, enabling precise servo movements based on sensor inputs.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of lblblblb: A project utilizing Servo  in a practical application
Arduino UNO Controlled Servo Motor
This circuit consists of an Arduino UNO microcontroller connected to a servo motor. The Arduino provides power (5V) and ground connections to the servo, as well as a control signal through one of its digital pins (D6). The embedded code on the Arduino is set up to control the servo's position, sending it to a fixed angle upon each loop iteration.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Mind controlled robotic arm: A project utilizing Servo  in a practical application
Arduino-Controlled Multi-Servo System
This circuit consists of an Arduino UNO microcontroller connected to five servo motors. The servos are powered by the Arduino's 5V output and share a common ground. Each servo's PWM control pin is individually connected to a digital pin on the Arduino (D8, D9, D10, D11, D12), allowing for independent control of each servo's position. The Arduino is also connected to a laptop via USB for programming and power.
Cirkit Designer LogoOpen Project in Cirkit Designer

Common Applications and Use Cases

  • Robotics: Controlling robotic arms, grippers, and joints.
  • Remote-controlled vehicles: Steering systems and throttle control.
  • Automation: Conveyor belt positioning and sorting mechanisms.
  • Model building: Aircraft flaps, rudders, and other moving parts.
  • Camera gimbals: Stabilizing and positioning cameras.

Technical Specifications

Below are the general technical specifications for a standard hobby servo. Note that specifications may vary depending on the specific model and manufacturer.

Key Technical Details

  • Operating Voltage: 4.8V to 6V (typical for standard servos)
  • Operating Current: 100mA to 1A (depending on load)
  • Torque: 1.5 kg·cm to 20 kg·cm (varies by model)
  • Rotation Range: Typically 0° to 180° (some models support 360° continuous rotation)
  • Control Signal: Pulse Width Modulation (PWM)
    • Pulse width: 1ms (0°), 1.5ms (90°), 2ms (180°)
    • Frequency: 50Hz (standard)

Pin Configuration and Descriptions

The servo typically has three wires for connection:

Pin Name Wire Color (Common) Description
VCC Red Power supply (4.8V to 6V)
GND Black/Brown Ground
Signal Yellow/White/Orange PWM control signal for position

Usage Instructions

How to Use the Servo in a Circuit

  1. Power the Servo: Connect the VCC pin to a 5V or 6V power source and the GND pin to the ground of your circuit.
  2. Control Signal: Connect the Signal pin to a PWM-capable pin on your microcontroller (e.g., Arduino).
  3. PWM Signal: Generate a PWM signal with a frequency of 50Hz. Adjust the pulse width to control the servo's position:
    • 1ms pulse: 0° position
    • 1.5ms pulse: 90° position
    • 2ms pulse: 180° position

Important Considerations and Best Practices

  • Power Supply: Use a separate power supply for the servo if it draws significant current, as this can prevent voltage drops in your circuit.
  • Avoid Overloading: Do not exceed the torque rating of the servo to avoid damage.
  • Signal Stability: Ensure the PWM signal is stable and within the specified frequency range.
  • Mechanical Stops: Avoid forcing the servo beyond its physical limits to prevent damage to the gears.

Example: Connecting a Servo to an Arduino UNO

Below is an example of how to control a servo using an Arduino UNO and the Servo library.

#include <Servo.h> // Include the Servo library

Servo myServo; // Create a Servo object to control the servo

void setup() {
  myServo.attach(9); // Attach the servo to pin 9 on the Arduino
}

void loop() {
  myServo.write(0); // Move the servo to 0 degrees
  delay(1000);      // Wait for 1 second

  myServo.write(90); // Move the servo to 90 degrees
  delay(1000);       // Wait for 1 second

  myServo.write(180); // Move the servo to 180 degrees
  delay(1000);        // Wait for 1 second
}

Notes on the Code

  • The Servo library simplifies the process of generating PWM signals.
  • The myServo.attach(9) function links the servo to pin 9.
  • The myServo.write(angle) function sets the servo to a specific angle (0° to 180°).

Troubleshooting and FAQs

Common Issues and Solutions

  1. Servo Not Moving

    • Cause: Incorrect wiring or insufficient power supply.
    • Solution: Double-check the connections and ensure the power supply meets the servo's requirements.
  2. Jittery or Erratic Movement

    • Cause: Unstable PWM signal or electrical noise.
    • Solution: Use a decoupling capacitor near the servo's power pins and ensure the PWM signal is stable.
  3. Overheating

    • Cause: Excessive load or continuous operation at high torque.
    • Solution: Reduce the load or allow the servo to rest periodically.
  4. Servo Stuck at One Position

    • Cause: Damaged gears or motor.
    • Solution: Inspect the servo for physical damage and replace it if necessary.

FAQs

Q: Can I use a servo with a 3.3V microcontroller?
A: Yes, but you may need a level shifter for the PWM signal, and the servo must still be powered with 4.8V to 6V.

Q: How do I control a continuous rotation servo?
A: For continuous rotation servos, the PWM signal controls speed and direction rather than position. A 1.5ms pulse stops the servo, while shorter or longer pulses control rotation direction and speed.

Q: Can I connect multiple servos to one Arduino?
A: Yes, but ensure the power supply can handle the combined current draw of all servos. Use external power if necessary.

Q: What happens if I exceed the servo's torque rating?
A: Exceeding the torque rating can damage the servo's motor or gears. Always operate within the specified limits.
