How to Use NPN: Examples, Pinouts, and Specs

The NPN transistor is a type of bipolar junction transistor (BJT) that utilizes both electron and hole charge carriers for its operation. It is one of the most commonly used transistors in electronic circuits due to its versatility and efficiency. The NPN transistor is primarily used for amplification and switching applications, making it a fundamental component in analog and digital electronics.

• Signal amplification in audio and RF circuits
• Switching applications in digital logic circuits
• Motor control and driver circuits
• Voltage regulation and power management
• Oscillator and timer circuits

Below are the general technical specifications for a standard NPN transistor (e.g., 2N2222 or BC547). Specific values may vary depending on the exact model.

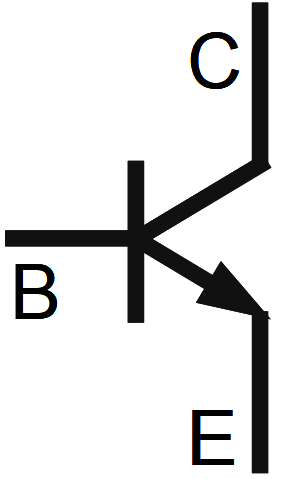

The NPN transistor typically has three pins: Collector (C), Base (B), and Emitter (E). The pinout may vary depending on the package type (e.g., TO-92, TO-220). Below is the pin configuration for a common TO-92 package.

1. Identify the Pins: Refer to the datasheet or pinout diagram to correctly identify the Collector, Base, and Emitter pins.
2. Biasing the Transistor: Apply a small current to the Base pin to control a larger current flowing between the Collector and Emitter.
   • Use a resistor in series with the Base to limit the current and prevent damage.
3. Switching Applications:
   • Connect the load (e.g., LED, motor) to the Collector pin.
   • Apply a control signal to the Base pin to turn the transistor ON or OFF.
4. Amplification Applications:
   • Use the transistor in a common-emitter configuration for signal amplification.
   • Ensure proper biasing to operate the transistor in the active region.

• Base Resistor: Always use a resistor in series with the Base to limit the current and protect the transistor.
• Heat Dissipation: For high-power applications, use a heatsink to prevent overheating.
• Voltage Ratings: Ensure the applied voltages do not exceed the maximum V_CE and V_BE ratings.
• Polarity: Double-check the polarity of the connections to avoid damage.

Below is an example of using an NPN transistor (e.g., 2N2222) to control an LED with an Arduino UNO.

// Example: Controlling an LED with an NPN transistor and Arduino UNO
// Transistor: 2N2222
// Pin connections:
// - Emitter to GND
// - Collector to one end of the LED (with a current-limiting resistor)
// - Base to Arduino digital pin via a 1kΩ resistor

const int transistorBasePin = 9; // Arduino pin connected to the transistor base
const int ledState = HIGH;       // Set HIGH to turn on the LED, LOW to turn it off

void setup() {
  pinMode(transistorBasePin, OUTPUT); // Set the base pin as an output
}

void loop() {
  digitalWrite(transistorBasePin, ledState); // Turn the LED ON
  delay(1000);                              // Wait for 1 second
  digitalWrite(transistorBasePin, LOW);     // Turn the LED OFF
  delay(1000);                              // Wait for 1 second
}

1. Transistor Not Switching Properly:

   • Cause: Insufficient Base current.
   • Solution: Check the Base resistor value and ensure the control signal provides enough current.

2. Overheating:

   • Cause: Exceeding the maximum Collector current or power dissipation.
   • Solution: Use a heatsink or select a transistor with higher current and power ratings.

3. No Output Signal:

   • Cause: Incorrect pin connections or damaged transistor.
   • Solution: Verify the pinout and check for continuity using a multimeter.

4. LED Not Lighting Up in Example Circuit:

   • Cause: Incorrect resistor value or insufficient Base current.
   • Solution: Use a 1kΩ resistor for the Base and ensure the LED has a proper current-limiting resistor.

Q1: Can I use an NPN transistor to control high-power devices?
A1: Yes, but ensure the transistor's current and power ratings are sufficient. For very high-power devices, consider using a power transistor or a relay.

Q2: How do I test if an NPN transistor is working?
A2: Use a multimeter in diode mode to check the Base-Emitter and Base-Collector junctions. A working transistor will show a forward voltage drop (~0.6V to 0.7V) in one direction and no conduction in the reverse direction.

Q3: What is the difference between NPN and PNP transistors?
A3: In an NPN transistor, current flows from the Collector to the Emitter when the Base is supplied with a positive voltage. In a PNP transistor, current flows from the Emitter to the Collector when the Base is supplied with a negative voltage.

Q4: Can I use an NPN transistor without a Base resistor?
A4: No, omitting the Base resistor can result in excessive current flow, potentially damaging the transistor and the control circuit. Always use a resistor to limit the Base current.
