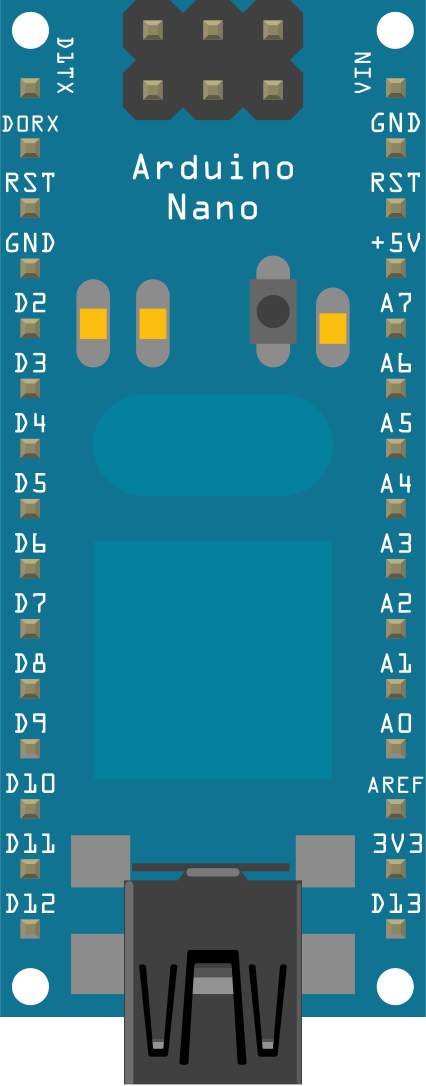

Image of Arduino Nano Atmega 328P Nano
Cirkit Designer LogoDesign with Arduino Nano Atmega 328P Nano in Cirkit Designer

Introduction

The Arduino Nano ATmega328P is a compact and versatile microcontroller board designed for a wide range of electronics projects. It is based on the ATmega328P microcontroller and features 14 digital input/output pins (6 of which can be used as PWM outputs), 6 analog inputs, and a mini-USB port for programming and power supply. Its small form factor makes it ideal for projects where space is limited, while its compatibility with the Arduino IDE ensures ease of use for both beginners and experienced developers.

Explore Projects Built with Arduino Nano Atmega 328P Nano

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Arduino Nano Controlled LCD Interface with Pushbutton Inputs
Image of MacroDisplay: A project utilizing Arduino Nano Atmega 328P Nano in a practical application
This circuit features a Nano 3.0 ATmega328P microcontroller connected to a 16x2 I2C LCD display for output. Two pushbuttons, each with a 10k Ohm pull-down resistor, are connected to digital pins D2 and D3 of the microcontroller for input. The LCD and pushbuttons are powered by the 5V output from the microcontroller, and all components share a common ground.
Cirkit Designer LogoOpen Project in Cirkit Designer
Arduino Nano Smart Display with RGB LED and Buzzer
Image of my project: A project utilizing Arduino Nano Atmega 328P Nano in a practical application
This circuit features a Nano 3.0 ATmega328P microcontroller that controls a buzzer, an RGB LED, and an OLED display. The microcontroller drives the buzzer and RGB LED through its digital pins, while the OLED display is interfaced via I2C. The circuit is designed for applications requiring visual and auditory feedback.
Cirkit Designer LogoOpen Project in Cirkit Designer
Battery-Powered Voltage Monitoring System with OLED Display using ATmega328P
Image of Voltage Meter: A project utilizing Arduino Nano Atmega 328P Nano in a practical application
This circuit is a voltage monitoring and display system powered by a 3.7V LiPo battery. It uses an ATmega328P microcontroller to read voltage levels from a DC voltage sensor and displays the readings on a 1.3" OLED screen. The system includes a battery charger and a step-up boost converter to ensure stable operation and power management.
Cirkit Designer LogoOpen Project in Cirkit Designer
Arduino Nano-Based OLED Clock with RTC and LiPo Battery Charging
Image of RTC for Keyboard: A project utilizing Arduino Nano Atmega 328P Nano in a practical application
This circuit features an Arduino Nano connected to an OLED display and a DS3231 real-time clock (RTC) module for displaying the current time. The Arduino Nano is powered through a toggle switch connected to its VIN pin, with power supplied by a TP4056 charging module that charges and manages two 3.7V LiPo batteries connected in parallel. The OLED and RTC module communicate with the Arduino via I2C, with shared SDA and SCL lines connected to the A4 and A5 pins of the Arduino, respectively.
Cirkit Designer LogoOpen Project in Cirkit Designer

Explore Projects Built with Arduino Nano Atmega 328P Nano

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Image of MacroDisplay: A project utilizing Arduino Nano Atmega 328P Nano in a practical application
Arduino Nano Controlled LCD Interface with Pushbutton Inputs
This circuit features a Nano 3.0 ATmega328P microcontroller connected to a 16x2 I2C LCD display for output. Two pushbuttons, each with a 10k Ohm pull-down resistor, are connected to digital pins D2 and D3 of the microcontroller for input. The LCD and pushbuttons are powered by the 5V output from the microcontroller, and all components share a common ground.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of my project: A project utilizing Arduino Nano Atmega 328P Nano in a practical application
Arduino Nano Smart Display with RGB LED and Buzzer
This circuit features a Nano 3.0 ATmega328P microcontroller that controls a buzzer, an RGB LED, and an OLED display. The microcontroller drives the buzzer and RGB LED through its digital pins, while the OLED display is interfaced via I2C. The circuit is designed for applications requiring visual and auditory feedback.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Voltage Meter: A project utilizing Arduino Nano Atmega 328P Nano in a practical application
Battery-Powered Voltage Monitoring System with OLED Display using ATmega328P
This circuit is a voltage monitoring and display system powered by a 3.7V LiPo battery. It uses an ATmega328P microcontroller to read voltage levels from a DC voltage sensor and displays the readings on a 1.3" OLED screen. The system includes a battery charger and a step-up boost converter to ensure stable operation and power management.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of RTC for Keyboard: A project utilizing Arduino Nano Atmega 328P Nano in a practical application
Arduino Nano-Based OLED Clock with RTC and LiPo Battery Charging
This circuit features an Arduino Nano connected to an OLED display and a DS3231 real-time clock (RTC) module for displaying the current time. The Arduino Nano is powered through a toggle switch connected to its VIN pin, with power supplied by a TP4056 charging module that charges and manages two 3.7V LiPo batteries connected in parallel. The OLED and RTC module communicate with the Arduino via I2C, with shared SDA and SCL lines connected to the A4 and A5 pins of the Arduino, respectively.
Cirkit Designer LogoOpen Project in Cirkit Designer

Common Applications and Use Cases

  • Prototyping and development of embedded systems
  • Robotics and automation projects
  • IoT (Internet of Things) devices
  • Wearable electronics
  • Sensor interfacing and data logging
  • Educational purposes for learning microcontroller programming

Technical Specifications

Key Technical Details

Specification Value
Microcontroller ATmega328P
Operating Voltage 5V
Input Voltage (recommended) 7-12V
Input Voltage (limit) 6-20V
Digital I/O Pins 14 (6 PWM outputs)
Analog Input Pins 6
DC Current per I/O Pin 40 mA
Flash Memory 32 KB (2 KB used by bootloader)
SRAM 2 KB
EEPROM 1 KB
Clock Speed 16 MHz
Dimensions 18 x 45 mm
Weight 7 g

Pin Configuration and Descriptions

Pin Name Description
VIN Input voltage to the board when using an external power source (7-12V).
5V Regulated 5V output from the board. Can power external components.
3.3V Regulated 3.3V output for low-voltage components.
GND Ground pins.
Digital Pins 0-13 General-purpose digital I/O pins. Pins 3, 5, 6, 9, 10, and 11 support PWM.
Analog Pins A0-A5 Analog input pins (10-bit resolution).
Reset Resets the microcontroller.
TX (D1) Transmit pin for serial communication.
RX (D0) Receive pin for serial communication.
USB Mini-USB port for programming and power supply.

Usage Instructions

How to Use the Arduino Nano in a Circuit

  1. Powering the Board:

    • Use the mini-USB port to power the board via a computer or USB adapter (5V).
    • Alternatively, connect an external power source (7-12V) to the VIN pin.
  2. Programming the Board:

    • Install the Arduino IDE on your computer.
    • Connect the Arduino Nano to your computer using a mini-USB cable.
    • Select "Arduino Nano" as the board type and "ATmega328P" as the processor in the Arduino IDE.
    • Choose the correct COM port and upload your code.
  3. Connecting Components:

    • Use the digital pins for digital input/output operations (e.g., LEDs, buttons).
    • Use the analog pins for reading sensor data (e.g., temperature sensors, potentiometers).
    • Connect external modules (e.g., motors, displays) to the appropriate pins, ensuring current and voltage limits are not exceeded.

Important Considerations and Best Practices

  • Avoid exceeding the maximum current rating (40 mA) for each I/O pin to prevent damage.
  • Use pull-up or pull-down resistors for stable input readings on digital pins.
  • Ensure proper grounding when connecting external components to avoid noise or erratic behavior.
  • Use a decoupling capacitor (e.g., 0.1 µF) near the power pins for stable operation.

Example Code for Arduino Nano

The following example demonstrates how to blink an LED connected to digital pin 13:

// Blink an LED connected to pin 13
// The LED will turn on for 1 second, then off for 1 second repeatedly.

void setup() {
  pinMode(13, OUTPUT); // Set pin 13 as an output pin
}

void loop() {
  digitalWrite(13, HIGH); // Turn the LED on
  delay(1000);            // Wait for 1 second
  digitalWrite(13, LOW);  // Turn the LED off
  delay(1000);            // Wait for 1 second
}

Troubleshooting and FAQs

Common Issues and Solutions

  1. The board is not detected by the computer:

    • Ensure the USB cable is functional and supports data transfer.
    • Install the correct USB driver for the Arduino Nano.
  2. Code upload fails:

    • Verify that the correct board type and processor are selected in the Arduino IDE.
    • Check the COM port settings in the IDE.
    • Press the reset button on the board before uploading the code.
  3. Components not working as expected:

    • Double-check wiring connections and ensure proper grounding.
    • Verify that the power supply voltage and current are sufficient.
  4. Board overheating:

    • Ensure the input voltage does not exceed the recommended range (7-12V).
    • Avoid drawing excessive current from the I/O pins.

FAQs

Q: Can I power the Arduino Nano with a battery?
A: Yes, you can use a battery with a voltage between 7-12V connected to the VIN pin.

Q: How do I reset the board?
A: Press the reset button on the board or connect the RESET pin to GND momentarily.

Q: Can I use the Arduino Nano for wireless communication?
A: Yes, you can connect wireless modules like Bluetooth (HC-05) or Wi-Fi (ESP8266) to the Nano.

Q: Is the Arduino Nano compatible with shields?
A: The Nano does not directly support standard Arduino shields, but you can use a Nano breakout board or connect components manually.
