Introduction

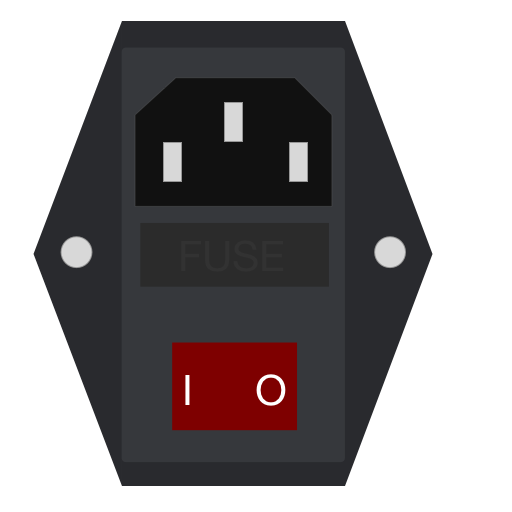

The C14 Plug - Female is a standardized electrical connector commonly used for power supply connections in electronic devices. It is designed to accept a male C13 connector, which is typically found on power cords for computers, monitors, printers, and other electronic equipment. This component is widely used due to its robust design, ease of use, and compliance with international standards (IEC 60320).
Common Applications and Use Cases
- Power input for desktop computers, monitors, and servers.
- Connection interface for uninterruptible power supplies (UPS).
- Powering laboratory equipment and industrial devices.
- Used in audio-visual equipment such as amplifiers and projectors.
Technical Specifications
The C14 Plug - Female adheres to the IEC 60320 standard and is designed for safe and reliable power connections. Below are the key technical details:
General Specifications
Pin Configuration and Descriptions
The C14 Female plug has three pins for power connections. The table below describes each pin:
Usage Instructions
How to Use the C14 Plug - Female in a Circuit
Wiring the Connector:
- Strip the insulation from the wires of your power cable (Line, Neutral, and Earth).
- Connect the wires to the corresponding terminals on the C14 Female plug:
- Line (L) to Pin 1.
- Neutral (N) to Pin 2.
- Earth (E) to Pin 3.
- Ensure all connections are secure and insulated to prevent short circuits.
Mounting:
- The C14 Female plug is typically panel-mounted. Use screws or clips to secure it to the device's chassis.
- Ensure the plug is properly aligned and firmly attached to avoid loose connections.
Testing:
- After installation, test the connection with a multimeter to verify continuity and proper wiring.
- Plug in a compatible C13 connector to ensure a snug and secure fit.
Important Considerations and Best Practices
- Always ensure the power supply voltage and current ratings do not exceed the plug's specifications.
- Use proper insulation and strain relief to prevent damage to the wires.
- Avoid exposing the connector to moisture or extreme temperatures.
- For safety, disconnect the power supply before wiring or handling the connector.
Example: Using the C14 Plug with an Arduino UNO
While the C14 Female plug is not directly connected to an Arduino UNO, it can be used to supply power to a 5V DC adapter, which in turn powers the Arduino. Below is an example of how to use the C14 plug in such a setup:
- Connect the C14 Female plug to an AC power source.
- Wire the output of the C14 plug to a 5V DC adapter.
- Use the adapter's output to power the Arduino UNO via its barrel jack or VIN pin.
// Example Arduino Code: Blink an LED
// This code assumes the Arduino is powered via a 5V adapter connected to the C14 plug.
void setup() {
pinMode(13, OUTPUT); // Set pin 13 as an output for the onboard LED
}
void loop() {
digitalWrite(13, HIGH); // Turn the LED on
delay(1000); // Wait for 1 second
digitalWrite(13, LOW); // Turn the LED off
delay(1000); // Wait for 1 second
}
Troubleshooting and FAQs
Common Issues and Solutions
Loose Connection:
- Issue: The C13 connector does not fit securely into the C14 Female plug.
- Solution: Check for debris or damage in the connector. Ensure the plug is properly mounted.
No Power Output:
- Issue: The connected device does not receive power.
- Solution: Verify the wiring of the Line, Neutral, and Earth connections. Test the power source with a multimeter.
Overheating:
- Issue: The plug becomes excessively hot during operation.
- Solution: Ensure the current does not exceed the rated capacity (10A or 15A). Check for loose or corroded connections.
Sparking or Short Circuit:
- Issue: Sparks occur when connecting or disconnecting the plug.
- Solution: Disconnect power before handling the plug. Inspect for damaged insulation or exposed wires.
FAQs
Q1: Can the C14 Female plug be used with a 110V power supply?
A1: Yes, the C14 plug is compatible with both 110V and 250V AC power supplies, as long as the current does not exceed the rated capacity.
Q2: Is the C14 Female plug waterproof?
A2: No, the standard C14 plug is not waterproof. For outdoor or wet environments, use a weatherproof enclosure.
Q3: Can I use the C14 plug for DC power?
A3: While the C14 plug is designed for AC power, it can be used for DC applications if the voltage and current ratings are within specifications.
Q4: How do I ensure safety when using the C14 plug?
A4: Always follow proper wiring practices, use insulated tools, and disconnect power before handling the plug.
