Design with SD Card Module in Cirkit DesignerThe SD Card Module is a compact and versatile component designed to interface SD cards with microcontrollers. It enables data storage, retrieval, and management, making it an essential tool for projects requiring large amounts of data handling. This module is widely used in applications such as data logging, multimedia storage, and file management systems. Its ease of use and compatibility with popular microcontrollers like Arduino make it a favorite among hobbyists and professionals alike.
This circuit consists of an Arduino UNO connected to an SD card module. The Arduino provides power and ground to the SD module and interfaces with it using SPI communication through digital pins D10 (CS), D11 (MOSI), D12 (MISO), and D13 (SCK). The setup is intended for reading from or writing to an SD card using the Arduino.
Open Project in Cirkit Designer
This circuit is designed to interface an Arduino UNO with a Micro SD Card Module for data storage, powered by two 18650 Li-ion batteries through a USB plug and controlled by a rocker switch. The Arduino communicates with the SD card module via SPI protocol and is also connected to the USB plug for potential data transfer or power supply.
Open Project in Cirkit Designer
This circuit features an ESP32-C3 microcontroller interfaced with a Micro SD Card Module. The ESP32-C3 handles SPI communication with the SD card for data storage and retrieval, with specific GPIO pins assigned for MOSI, MISO, SCK, and CS signals.
Open Project in Cirkit Designer
This circuit connects an SD card module to a Heltec LoRa V2 microcontroller for data storage and retrieval. The SD module is interfaced with the microcontroller via SPI communication, utilizing the CS, SCK, MOSI, and MISO pins. Power is supplied to the SD module from the microcontroller's 5V output, and both modules share a common ground.

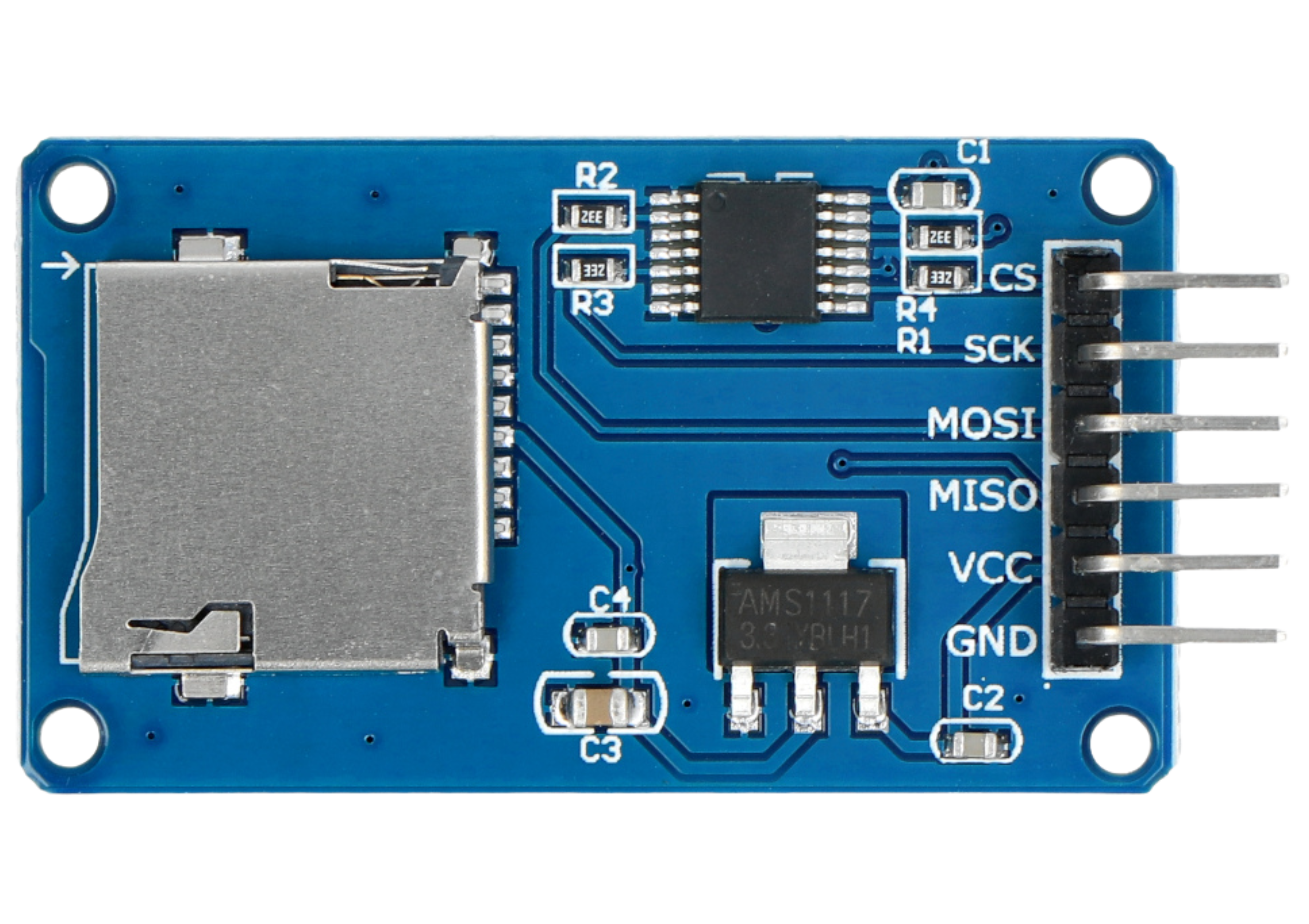

Open Project in Cirkit DesignerThe SD Card Module typically operates with microSD cards and includes onboard circuitry for voltage regulation and level shifting, ensuring compatibility with 3.3V and 5V systems.
| Pin | Name | Description |
|---|---|---|
| 1 | GND | Ground connection |
| 2 | VCC | Power supply input (3.3V or 5V, depending on the module) |
| 3 | MISO | Master In Slave Out - SPI data output from the SD card to the microcontroller |
| 4 | MOSI | Master Out Slave In - SPI data input from the microcontroller to the SD card |
| 5 | SCK | Serial Clock - SPI clock signal |
| 6 | CS | Chip Select - Used to select the SD card module during SPI communication |
Connect the Module to a Microcontroller:
GND pin to the ground of the microcontroller.VCC pin to the 3.3V or 5V power supply (check your module's specifications).MISO, MOSI, SCK, and CS pins to the corresponding SPI pins on the microcontroller.Insert the SD Card:
Load the Required Libraries:
SD library, which simplifies communication with the SD card.Write and Test Code:
#include <SPI.h>
#include <SD.h>
// Define the chip select pin for the SD card module
const int chipSelect = 10;
void setup() {
// Initialize serial communication for debugging
Serial.begin(9600);
while (!Serial) {
; // Wait for the serial port to connect (for native USB boards)
}
Serial.println("Initializing SD card...");
// Check if the SD card is present and can be initialized
if (!SD.begin(chipSelect)) {
Serial.println("Card failed, or not present.");
// Stop further execution if the card is not detected
while (1);
}
Serial.println("Card initialized successfully.");
// Create or open a file on the SD card
File dataFile = SD.open("example.txt", FILE_WRITE);
// Check if the file opened successfully
if (dataFile) {
dataFile.println("Hello, SD card!"); // Write data to the file
dataFile.close(); // Close the file to save changes
Serial.println("Data written to file.");
} else {
Serial.println("Error opening file.");
}
}
void loop() {
// Nothing to do here
}
chipSelect pin may vary depending on your microcontroller. For Arduino UNO, it is typically pin 10.SD library is installed in your Arduino IDE.SD Card Initialization Fails:
File Not Opening or Writing:
FILE_WRITE or FILE_READ) and reformat the SD card if necessary.Data Corruption:
Module Not Detected:
Q: Can I use a 64GB SD card with this module?
A: Most modules support up to 32GB SD cards. Check your module's specifications for compatibility.
Q: Is the module compatible with 3.3V microcontrollers?
A: Yes, the module typically supports both 3.3V and 5V systems.
Q: How do I format the SD card?
A: Use a computer to format the SD card as FAT16 or FAT32. Avoid using exFAT, as it is not supported by most modules.
By following this documentation, you can effectively integrate the SD Card Module into your projects for reliable data storage and retrieval.
