How to Use Raspberry Pi 4B: Examples, Pinouts, and Specs

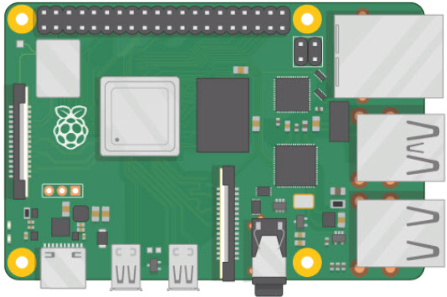

Image of Raspberry Pi 4B
Cirkit Designer LogoDesign with Raspberry Pi 4B in Cirkit Designer

Introduction

The Raspberry Pi 4B, manufactured by Raspberry Pi, is a compact and affordable single-board computer designed for a wide range of applications. It features a powerful quad-core processor, up to 8GB of RAM, multiple USB ports, dual micro-HDMI outputs, and built-in Wi-Fi and Bluetooth connectivity. This versatile device is ideal for projects such as programming, robotics, IoT systems, media centers, and more. Its small form factor and robust capabilities make it a popular choice for both hobbyists and professionals.

Explore Projects Built with Raspberry Pi 4B

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Raspberry Pi 4B-Controlled Relay System with Environmental Sensing and Power Monitoring
Image of smart_power_meter: A project utilizing Raspberry Pi 4B in a practical application
This circuit is designed to interface a Raspberry Pi 4B with various sensors and output devices. It includes a 4-channel relay for controlling external loads, an ADS1115 for analog-to-digital conversion of signals from a current sensor and a ZMPT101B voltage sensor, a DHT11 for temperature and humidity readings, and a 0.96" OLED display for data output. The Raspberry Pi 4B serves as the central controller, managing data acquisition from the sensors, processing the information, and driving the relay and display based on the sensor inputs and programmed logic.
Cirkit Designer LogoOpen Project in Cirkit Designer
Raspberry Pi 4B-Based Smart Surveillance System with GPS and Ultrasonic Sensing
Image of VisionTool: A project utilizing Raspberry Pi 4B in a practical application
This circuit features a Raspberry Pi 4B as the central processing unit, interfacing with an Arducam camera module, an HC-SR04 ultrasonic sensor, a GPS NEO 6M module, and a speaker. The Raspberry Pi manages image capture, distance measurement, GPS data reception, and audio output. Power is supplied to the components from a 2000mAh battery, and the Raspberry Pi facilitates communication and control over the I2C, GPIO, and serial interfaces.
Cirkit Designer LogoOpen Project in Cirkit Designer
Raspberry Pi 4B-based Payment Kiosk with Coin and Bill Acceptors
Image of Scheme thesis: A project utilizing Raspberry Pi 4B in a practical application
This circuit features a Raspberry Pi 4B as the central controller, interfaced with a variety of peripherals for a payment and display system. It includes a bill acceptor and multi coin acceptor for monetary input, a thermal printer for receipts, and a touch display for user interaction. The circuit also incorporates a 12V to 5V step-down converter to power the 5V components and a membrane matrix keypad for additional input options.
Cirkit Designer LogoOpen Project in Cirkit Designer
Raspberry Pi 4B Controlled RFID and Keypad Security System with I2C LCD Feedback and Motorized Lock Mechanism
Image of CVM: A project utilizing Raspberry Pi 4B in a practical application
This circuit features a Raspberry Pi 4B as the central controller, interfaced with an I2C LCD screen for display, an RFID-RC522 module for RFID reading, a 4x4 membrane matrix keypad for user input, and an L298N motor driver to control a DC motor. The Raspberry Pi manages data communication with the LCD via I2C, reads RFID tags, processes keypad inputs, and controls the motor's operation. Power is supplied to the motor driver and the Raspberry Pi through a 9V battery and regulated 5V connections.
Cirkit Designer LogoOpen Project in Cirkit Designer

Explore Projects Built with Raspberry Pi 4B

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Image of smart_power_meter: A project utilizing Raspberry Pi 4B in a practical application
Raspberry Pi 4B-Controlled Relay System with Environmental Sensing and Power Monitoring
This circuit is designed to interface a Raspberry Pi 4B with various sensors and output devices. It includes a 4-channel relay for controlling external loads, an ADS1115 for analog-to-digital conversion of signals from a current sensor and a ZMPT101B voltage sensor, a DHT11 for temperature and humidity readings, and a 0.96" OLED display for data output. The Raspberry Pi 4B serves as the central controller, managing data acquisition from the sensors, processing the information, and driving the relay and display based on the sensor inputs and programmed logic.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of VisionTool: A project utilizing Raspberry Pi 4B in a practical application
Raspberry Pi 4B-Based Smart Surveillance System with GPS and Ultrasonic Sensing
This circuit features a Raspberry Pi 4B as the central processing unit, interfacing with an Arducam camera module, an HC-SR04 ultrasonic sensor, a GPS NEO 6M module, and a speaker. The Raspberry Pi manages image capture, distance measurement, GPS data reception, and audio output. Power is supplied to the components from a 2000mAh battery, and the Raspberry Pi facilitates communication and control over the I2C, GPIO, and serial interfaces.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Scheme thesis: A project utilizing Raspberry Pi 4B in a practical application
Raspberry Pi 4B-based Payment Kiosk with Coin and Bill Acceptors
This circuit features a Raspberry Pi 4B as the central controller, interfaced with a variety of peripherals for a payment and display system. It includes a bill acceptor and multi coin acceptor for monetary input, a thermal printer for receipts, and a touch display for user interaction. The circuit also incorporates a 12V to 5V step-down converter to power the 5V components and a membrane matrix keypad for additional input options.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of CVM: A project utilizing Raspberry Pi 4B in a practical application
Raspberry Pi 4B Controlled RFID and Keypad Security System with I2C LCD Feedback and Motorized Lock Mechanism
This circuit features a Raspberry Pi 4B as the central controller, interfaced with an I2C LCD screen for display, an RFID-RC522 module for RFID reading, a 4x4 membrane matrix keypad for user input, and an L298N motor driver to control a DC motor. The Raspberry Pi manages data communication with the LCD via I2C, reads RFID tags, processes keypad inputs, and controls the motor's operation. Power is supplied to the motor driver and the Raspberry Pi through a 9V battery and regulated 5V connections.
Cirkit Designer LogoOpen Project in Cirkit Designer

Common Applications and Use Cases

  • Programming and Education: Ideal for learning programming languages like Python, Java, and C++.
  • Media Centers: Can be used to build a home theater system with software like Kodi.
  • IoT and Robotics: Serves as the brain for IoT devices and robotic systems.
  • Web Servers: Suitable for hosting lightweight web servers and applications.
  • Retro Gaming: Can emulate classic gaming consoles using software like RetroPie.

Technical Specifications

Key Technical Details

Specification Details
Processor Broadcom BCM2711, Quad-core Cortex-A72 (ARM v8) 64-bit SoC @ 1.5GHz
RAM Options 2GB, 4GB, or 8GB LPDDR4-3200 SDRAM
Storage MicroSD card slot for storage and operating system
USB Ports 2 × USB 3.0, 2 × USB 2.0
HDMI Output 2 × micro-HDMI ports (supports up to 4K resolution)
Networking Gigabit Ethernet, 802.11ac Wi-Fi, Bluetooth 5.0
GPIO Pins 40-pin GPIO header
Power Supply 5V/3A via USB-C or GPIO header
Dimensions 85.6mm × 56.5mm × 17mm

Pin Configuration and Descriptions

The Raspberry Pi 4B features a 40-pin GPIO (General Purpose Input/Output) header. Below is the pinout:

Pin Number Pin Name Description
1 3.3V Power 3.3V power supply
2 5V Power 5V power supply
3 GPIO2 (SDA1) I2C Data
4 5V Power 5V power supply
5 GPIO3 (SCL1) I2C Clock
6 Ground Ground
7 GPIO4 General-purpose I/O
8 GPIO14 (TXD0) UART Transmit
9 Ground Ground
10 GPIO15 (RXD0) UART Receive
... ... ...
39 Ground Ground
40 GPIO21 General-purpose I/O

For the full GPIO pinout, refer to the official Raspberry Pi documentation.

Usage Instructions

How to Use the Raspberry Pi 4B in a Circuit

  1. Powering the Raspberry Pi: Use a 5V/3A USB-C power adapter to power the device. Alternatively, you can power it via the GPIO header.
  2. Connecting Peripherals: Attach a monitor via the micro-HDMI ports, a keyboard and mouse via USB ports, and a microSD card with the operating system installed.
  3. Accessing GPIO Pins: Use jumper wires to connect the GPIO pins to external components like LEDs, sensors, or motors. Be cautious about voltage levels to avoid damage.
  4. Networking: Connect to the internet via Ethernet or Wi-Fi for software updates and remote access.

Important Considerations and Best Practices

  • Cooling: The Raspberry Pi 4B can get hot under heavy loads. Use a heatsink or fan for better thermal management.
  • Power Supply: Ensure the power supply provides sufficient current (5V/3A) to avoid instability.
  • Static Precautions: Handle the board carefully to avoid static discharge, which can damage components.
  • Software Updates: Regularly update the operating system and software to ensure security and performance.

Example: Blinking an LED with GPIO and Python

The following example demonstrates how to blink an LED connected to GPIO pin 17 using Python.

Circuit Setup

  • Connect the positive leg of the LED to GPIO pin 17.
  • Connect the negative leg of the LED to a 330-ohm resistor, and then to a ground pin.

Code


Import the necessary libraries

import RPi.GPIO as GPIO import time

Set up GPIO mode and pin

GPIO.setmode(GPIO.BCM) # Use Broadcom pin numbering GPIO.setup(17, GPIO.OUT) # Set GPIO 17 as an output pin

try: while True: GPIO.output(17, GPIO.HIGH) # Turn on the LED time.sleep(1) # Wait for 1 second GPIO.output(17, GPIO.LOW) # Turn off the LED time.sleep(1) # Wait for 1 second except KeyboardInterrupt: # Clean up GPIO settings on exit GPIO.cleanup()


Troubleshooting and FAQs

Common Issues and Solutions

  1. The Raspberry Pi does not boot:

    • Ensure the microSD card is properly inserted and contains a valid operating system.
    • Check the power supply for sufficient voltage and current.
    • Verify that the HDMI cable is securely connected to the monitor.
  2. Overheating:

    • Use a heatsink or fan to improve cooling.
    • Avoid placing the Raspberry Pi in an enclosed space without ventilation.
  3. GPIO pins not working:

    • Double-check the pin connections and ensure the correct pin numbering is used in the code.
    • Verify that the GPIO pins are not damaged or shorted.
  4. Wi-Fi connectivity issues:

    • Ensure the correct Wi-Fi credentials are entered.
    • Check for interference from other devices or networks.

FAQs

  • Q: Can I power the Raspberry Pi 4B via the GPIO header?
    A: Yes, you can supply 5V directly to the 5V and GND pins on the GPIO header, but ensure the power source is stable.

  • Q: What operating systems are compatible with the Raspberry Pi 4B?
    A: The Raspberry Pi 4B supports Raspberry Pi OS, Ubuntu, and other Linux-based distributions. It can also run lightweight versions of Windows 10 IoT Core.

  • Q: Can I connect two monitors to the Raspberry Pi 4B?
    A: Yes, the dual micro-HDMI ports support two monitors with resolutions up to 4K.

  • Q: How do I reset the Raspberry Pi 4B?
    A: Disconnect and reconnect the power supply to perform a hard reset. Alternatively, use a software reboot command (sudo reboot).

This documentation provides a comprehensive guide to using the Raspberry Pi 4B effectively. For further details, refer to the official Raspberry Pi website.
