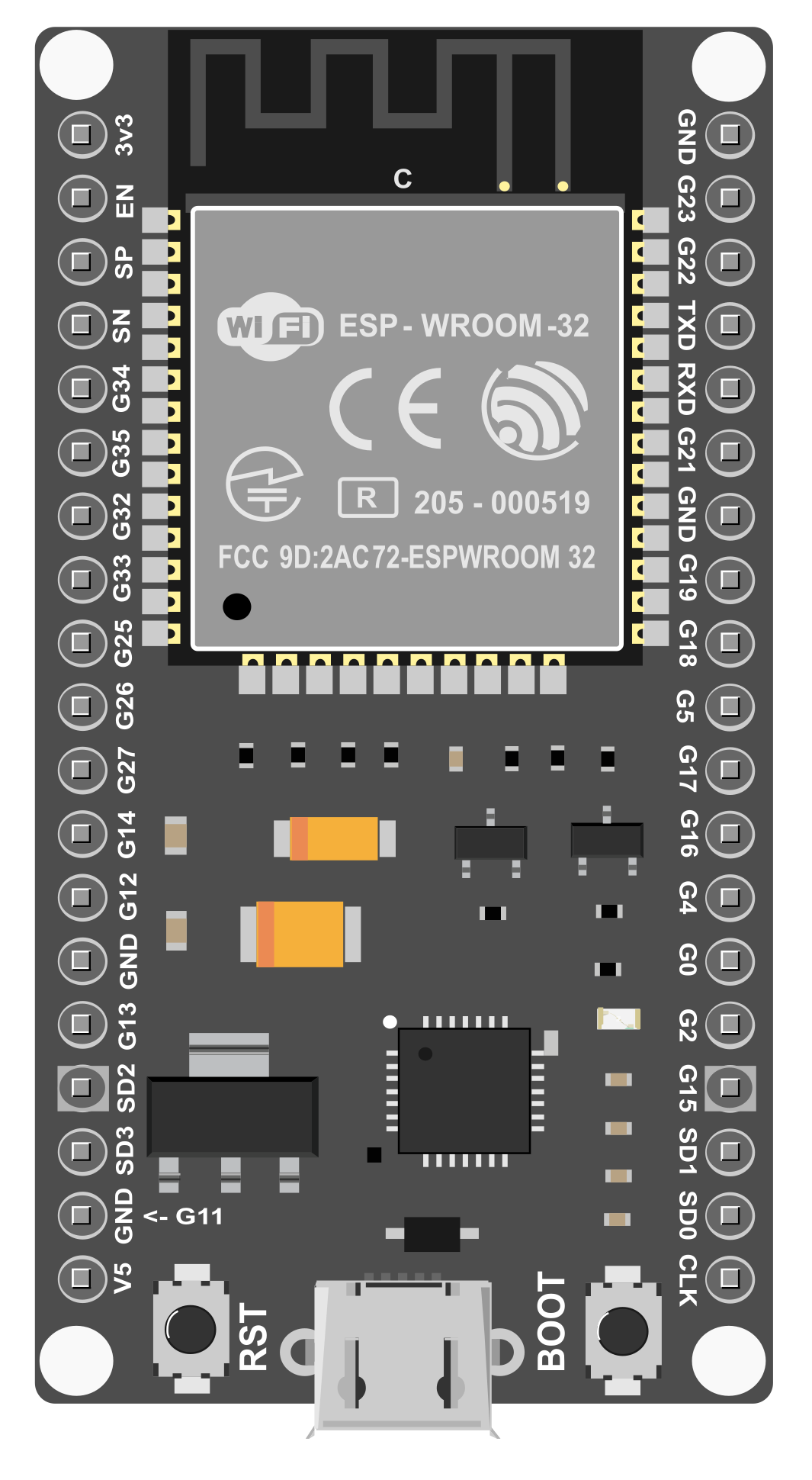

Image of ESP32 38 PINS
Cirkit Designer LogoDesign with ESP32 38 PINS in Cirkit Designer

Introduction

The ESP32 38 Pins is a versatile microcontroller designed for a wide range of applications, particularly in the Internet of Things (IoT) and embedded systems. It features integrated Wi-Fi and Bluetooth capabilities, making it a powerful choice for wireless communication projects. With 38 GPIO pins, the ESP32 provides extensive input/output functionality, enabling developers to connect various sensors, actuators, and peripherals.

Explore Projects Built with ESP32 38 PINS

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
ESP32-Based OLED Display Interface
Image of d: A project utilizing ESP32 38 PINS in a practical application
This circuit features an ESP32 microcontroller connected to an OLED 1.3" display. The ESP32's GPIO pins 21 and 22 are used for I2C communication (SDA and SCL respectively) with the OLED display. The display is powered by the 5V output from the ESP32, and both devices share a common ground.
Cirkit Designer LogoOpen Project in Cirkit Designer
ESP32-Based Wi-Fi Controlled LED System
Image of PIR Tester: A project utilizing ESP32 38 PINS in a practical application
This circuit features two ESP32 microcontrollers communicating via UART, with one controlling an LED through a resistor. The primary ESP32 (ESP32 38 PINS) handles I2C communication and processes serial input to control the LED, while the secondary ESP32 (pocket esp32-c3) sends periodic data over UART.
Cirkit Designer LogoOpen Project in Cirkit Designer
ESP32-Controlled Multi-Display Interface with Pushbutton Interaction
Image of Info-Orbs: A project utilizing ESP32 38 PINS in a practical application
This circuit features an ESP32 microcontroller interfaced with multiple round TFT displays, controlled via shared serial communication lines, and several pushbuttons connected to individual GPIOs for input. The ESP32 coordinates the display of information and responds to user inputs from the pushbuttons.
Cirkit Designer LogoOpen Project in Cirkit Designer
ESP32-Based Smart Display with Camera and Audio Alert System
Image of cam_circuit_design: A project utilizing ESP32 38 PINS in a practical application
This circuit features two ESP32 microcontrollers, one standard 30-pin version and one ESP32-CAM module, both sharing a common ground and power supply. The 30-pin ESP32 is interfaced with an I2C LCD 16x2 Screen for display purposes, using its I2C pins (D21 for SDA and D22 for SCL), and controls a buzzer connected to pin D23. Additionally, the ESP32-CAM is connected to the 30-pin ESP32 via serial communication through pins TX2 and RX2 for potential image data transfer.
Cirkit Designer LogoOpen Project in Cirkit Designer

Explore Projects Built with ESP32 38 PINS

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Image of d: A project utilizing ESP32 38 PINS in a practical application
ESP32-Based OLED Display Interface
This circuit features an ESP32 microcontroller connected to an OLED 1.3" display. The ESP32's GPIO pins 21 and 22 are used for I2C communication (SDA and SCL respectively) with the OLED display. The display is powered by the 5V output from the ESP32, and both devices share a common ground.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of PIR Tester: A project utilizing ESP32 38 PINS in a practical application
ESP32-Based Wi-Fi Controlled LED System
This circuit features two ESP32 microcontrollers communicating via UART, with one controlling an LED through a resistor. The primary ESP32 (ESP32 38 PINS) handles I2C communication and processes serial input to control the LED, while the secondary ESP32 (pocket esp32-c3) sends periodic data over UART.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Info-Orbs: A project utilizing ESP32 38 PINS in a practical application
ESP32-Controlled Multi-Display Interface with Pushbutton Interaction
This circuit features an ESP32 microcontroller interfaced with multiple round TFT displays, controlled via shared serial communication lines, and several pushbuttons connected to individual GPIOs for input. The ESP32 coordinates the display of information and responds to user inputs from the pushbuttons.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of cam_circuit_design: A project utilizing ESP32 38 PINS in a practical application
ESP32-Based Smart Display with Camera and Audio Alert System
This circuit features two ESP32 microcontrollers, one standard 30-pin version and one ESP32-CAM module, both sharing a common ground and power supply. The 30-pin ESP32 is interfaced with an I2C LCD 16x2 Screen for display purposes, using its I2C pins (D21 for SDA and D22 for SCL), and controls a buzzer connected to pin D23. Additionally, the ESP32-CAM is connected to the 30-pin ESP32 via serial communication through pins TX2 and RX2 for potential image data transfer.
Cirkit Designer LogoOpen Project in Cirkit Designer

Common Applications and Use Cases

  • IoT devices and smart home automation
  • Wireless sensor networks
  • Robotics and motor control
  • Wearable devices
  • Data logging and monitoring systems
  • Prototyping and educational projects

Technical Specifications

Key Technical Details

Specification Value
Microcontroller Tensilica Xtensa LX6 dual-core processor
Clock Speed Up to 240 MHz
Flash Memory 4 MB (varies by model)
SRAM 520 KB
GPIO Pins 38
Wi-Fi Standard 802.11 b/g/n
Bluetooth Version Bluetooth 4.2 + BLE
Operating Voltage 3.3V
Input Voltage Range 5V (via USB) or 7-12V (via VIN pin)
Power Consumption Ultra-low power (varies by mode)
ADC Channels 18 (12-bit resolution)
DAC Channels 2
Communication Interfaces UART, SPI, I2C, I2S, CAN, PWM
Operating Temperature Range -40°C to 125°C

Pin Configuration and Descriptions

The ESP32 38 Pins module has 38 GPIO pins, each with multiple functions. Below is a summary of the pin configuration:

Pin Number Pin Name Functionality
1 EN Enable pin (active high, used to reset the chip)
2 IO0 GPIO0, used for boot mode selection or general-purpose I/O
3 IO1 (TX0) GPIO1, UART0 TX (serial communication)
4 IO3 (RX0) GPIO3, UART0 RX (serial communication)
5-22 IO4-IO21 General-purpose I/O pins with ADC, PWM, I2C, SPI, or UART functionality
23 IO34 GPIO34, input-only pin with ADC functionality
24 IO35 GPIO35, input-only pin with ADC functionality
25 IO36 (VP) GPIO36, input-only pin with ADC functionality
26 IO39 (VN) GPIO39, input-only pin with ADC functionality
27 GND Ground
28 3V3 3.3V power output
29 VIN Power input (7-12V)
30-38 Reserved Reserved pins for internal use or specific configurations

Note: Some GPIO pins have specific restrictions or are input-only. Refer to the ESP32 datasheet for detailed pin multiplexing information.

Usage Instructions

How to Use the ESP32 38 Pins in a Circuit

  1. Powering the ESP32:

    • Use a USB cable to power the ESP32 via the micro-USB port (5V input).
    • Alternatively, supply 7-12V to the VIN pin or 3.3V directly to the 3V3 pin.
  2. Connecting Peripherals:

    • Use the GPIO pins to connect sensors, actuators, or other devices.
    • Ensure that the voltage levels of connected devices are compatible with the ESP32's 3.3V logic.
  3. Programming the ESP32:

    • Install the Arduino IDE or ESP-IDF (Espressif IoT Development Framework).
    • Add the ESP32 board package to the Arduino IDE via the Board Manager.
    • Connect the ESP32 to your computer using a USB cable and select the appropriate COM port.
  4. Uploading Code:

    • Write your code in the Arduino IDE or ESP-IDF.
    • Click the upload button to flash the code to the ESP32.

Important Considerations and Best Practices

  • Boot Mode Selection: GPIO0 must be pulled low during boot to enter programming mode.
  • Power Supply: Ensure a stable power supply to avoid unexpected resets or malfunctions.
  • Pin Limitations: Avoid using input-only pins (e.g., GPIO34-39) for output operations.
  • Wi-Fi and Bluetooth: Using both wireless features simultaneously may increase power consumption.

Example Code for Arduino UNO Integration

Below is an example of using the ESP32 to read a temperature sensor and send data via Wi-Fi:

#include <WiFi.h> // Include the Wi-Fi library

// Replace with your network credentials
const char* ssid = "Your_SSID";
const char* password = "Your_PASSWORD";

void setup() {
  Serial.begin(115200); // Initialize serial communication at 115200 baud
  WiFi.begin(ssid, password); // Connect to Wi-Fi network

  // Wait for connection
  while (WiFi.status() != WL_CONNECTED) {
    delay(1000);
    Serial.println("Connecting to Wi-Fi...");
  }
  Serial.println("Connected to Wi-Fi");
}

void loop() {
  // Example: Read a sensor value (replace with actual sensor code)
  int sensorValue = analogRead(34); // Read from GPIO34 (ADC pin)
  Serial.print("Sensor Value: ");
  Serial.println(sensorValue);

  delay(1000); // Wait for 1 second before reading again
}

Note: Replace Your_SSID and Your_PASSWORD with your Wi-Fi network credentials.

Troubleshooting and FAQs

Common Issues and Solutions

  1. ESP32 Not Connecting to Wi-Fi:

    • Double-check the SSID and password in your code.
    • Ensure the Wi-Fi network is within range and not using unsupported security protocols.
  2. Upload Fails or Timeout Errors:

    • Ensure the correct COM port and board are selected in the Arduino IDE.
    • Press and hold the BOOT button on the ESP32 while uploading the code.
  3. Random Resets or Instability:

    • Verify that the power supply is stable and sufficient for the ESP32.
    • Avoid using GPIO pins that are reserved or have specific restrictions.
  4. GPIO Pin Not Working:

    • Check if the pin is input-only or has specific functionality (e.g., ADC, DAC).
    • Ensure no conflicting peripherals are using the same pin.

FAQs

  • Can the ESP32 operate on 5V logic?
    No, the ESP32 operates on 3.3V logic. Use level shifters if interfacing with 5V devices.

  • How do I reset the ESP32?
    Press the EN (enable) button to reset the ESP32.

  • Can I use the ESP32 with batteries?
    Yes, you can power the ESP32 using a LiPo battery or other sources via the VIN pin.

  • What is the maximum current draw of the ESP32?
    The ESP32 can draw up to 500 mA during peak operation. Ensure your power source can handle this.

This concludes the documentation for the ESP32 38 Pins. For further details, refer to the official datasheet or Espressif's documentation.
