How to Use Arduino Leonardo r3: Examples, Pinouts, and Specs

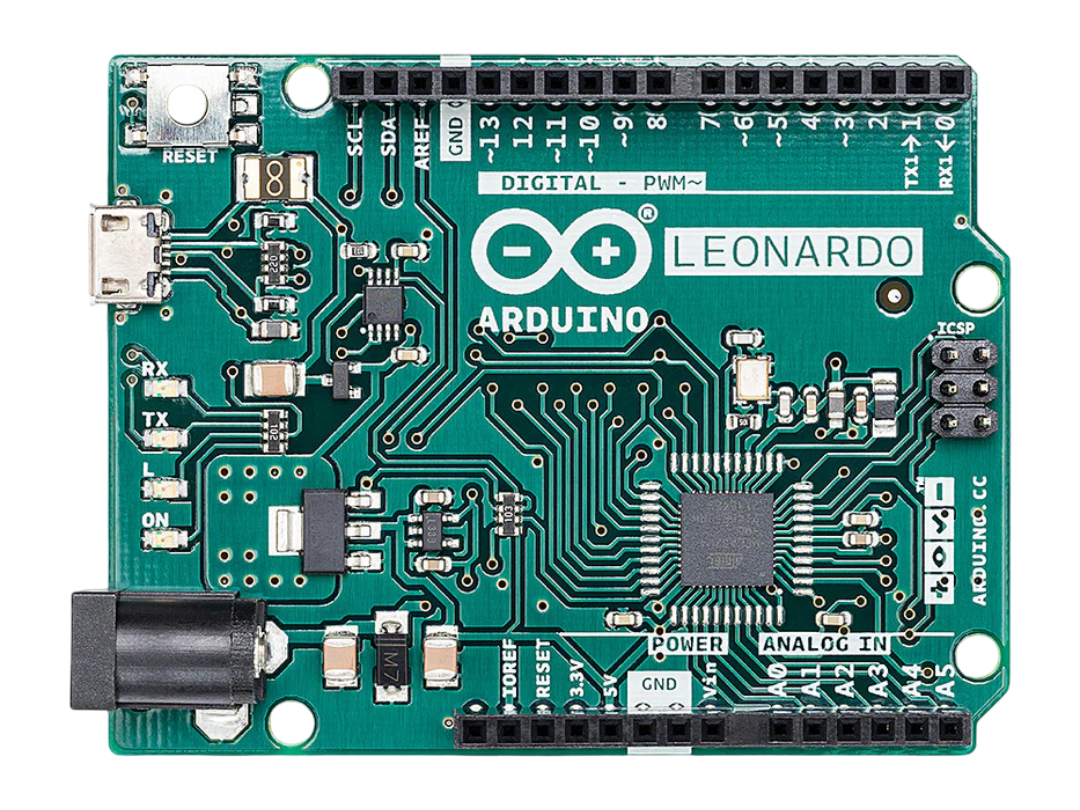

Image of Arduino Leonardo r3
Cirkit Designer LogoDesign with Arduino Leonardo r3 in Cirkit Designer

Introduction

The Arduino Leonardo R3 is a microcontroller board developed by Arduino, based on the ATmega32u4 microcontroller. Unlike other Arduino boards, the Leonardo features built-in USB communication, enabling it to emulate a keyboard, mouse, or other USB devices directly. This unique capability makes it ideal for projects requiring direct interaction with a computer or other USB host devices.

Explore Projects Built with Arduino Leonardo r3

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Arduino Leonardo Environmental Monitoring System with Ultrasonic Sensing and Air Quality Detection
Image of close-open: A project utilizing Arduino Leonardo r3 in a practical application
This circuit features an Arduino Leonardo controlling an ultrasonic sensor for distance measurement, a servo motor for actuation, a buzzer for audio alerts, an I2C LCD for data display, and an MQ-135 sensor for air quality monitoring. It is designed to interact with the environment, provide feedback, and display information to the user.
Cirkit Designer LogoOpen Project in Cirkit Designer
Arduino and ESP-8266 Based Flame Detection and Climate Monitoring System
Image of WI-FI based Homeautomation: A project utilizing Arduino Leonardo r3 in a practical application
This circuit features an Arduino Leonardo as the central controller, interfaced with an ESP-8266 for wireless communication capabilities. The Arduino controls a 4-channel relay module to switch various loads, including a bulb, an LED, a water pump, and an exhaust fan. It also reads data from a flame sensor and a DHT11 humidity and temperature sensor, drives a buzzer, and displays information on a 16x2 LCD. The system is powered by a 9V battery, and the LCD's backlight is controlled through a resistor.
Cirkit Designer LogoOpen Project in Cirkit Designer
Arduino Leonardo-Based Smart Security System with Ultrasonic Sensors and GSM Module
Image of rsbvp new: A project utilizing Arduino Leonardo r3 in a practical application
This circuit is a sensor-based monitoring and control system using an Arduino Leonardo. It integrates multiple sensors (ultrasonic, vibration), a relay module to control a 12V motor, an I2C LCD for display, and a SIM800L module for communication. The system is powered by a 12V battery with step-down converters providing appropriate voltages to different components.
Cirkit Designer LogoOpen Project in Cirkit Designer
Arduino Leonardo and L293D Motor Driver Shield Controlled Robotic System
Image of arduino: A project utilizing Arduino Leonardo r3 in a practical application
This circuit integrates an Arduino Leonardo with a DRIVER SHIELD L293D to control multiple motors and servos. The Arduino Leonardo provides the processing and control signals, while the DRIVER SHIELD L293D interfaces with the motors and servos, allowing for motor control and power management.
Cirkit Designer LogoOpen Project in Cirkit Designer

Explore Projects Built with Arduino Leonardo r3

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Image of close-open: A project utilizing Arduino Leonardo r3 in a practical application
Arduino Leonardo Environmental Monitoring System with Ultrasonic Sensing and Air Quality Detection
This circuit features an Arduino Leonardo controlling an ultrasonic sensor for distance measurement, a servo motor for actuation, a buzzer for audio alerts, an I2C LCD for data display, and an MQ-135 sensor for air quality monitoring. It is designed to interact with the environment, provide feedback, and display information to the user.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of WI-FI based Homeautomation: A project utilizing Arduino Leonardo r3 in a practical application
Arduino and ESP-8266 Based Flame Detection and Climate Monitoring System
This circuit features an Arduino Leonardo as the central controller, interfaced with an ESP-8266 for wireless communication capabilities. The Arduino controls a 4-channel relay module to switch various loads, including a bulb, an LED, a water pump, and an exhaust fan. It also reads data from a flame sensor and a DHT11 humidity and temperature sensor, drives a buzzer, and displays information on a 16x2 LCD. The system is powered by a 9V battery, and the LCD's backlight is controlled through a resistor.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of rsbvp new: A project utilizing Arduino Leonardo r3 in a practical application
Arduino Leonardo-Based Smart Security System with Ultrasonic Sensors and GSM Module
This circuit is a sensor-based monitoring and control system using an Arduino Leonardo. It integrates multiple sensors (ultrasonic, vibration), a relay module to control a 12V motor, an I2C LCD for display, and a SIM800L module for communication. The system is powered by a 12V battery with step-down converters providing appropriate voltages to different components.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of arduino: A project utilizing Arduino Leonardo r3 in a practical application
Arduino Leonardo and L293D Motor Driver Shield Controlled Robotic System
This circuit integrates an Arduino Leonardo with a DRIVER SHIELD L293D to control multiple motors and servos. The Arduino Leonardo provides the processing and control signals, while the DRIVER SHIELD L293D interfaces with the motors and servos, allowing for motor control and power management.
Cirkit Designer LogoOpen Project in Cirkit Designer

Common Applications and Use Cases

  • Custom USB keyboards and mice
  • Game controllers
  • Data logging and USB communication projects
  • Prototyping human interface devices (HID)
  • Educational tools for learning microcontroller programming

Technical Specifications

The Arduino Leonardo R3 is equipped with a range of features that make it versatile and powerful for various applications.

Key Technical Details

Specification Value
Microcontroller ATmega32u4
Operating Voltage 5V
Input Voltage (recommended) 7-12V
Input Voltage (limit) 6-20V
Digital I/O Pins 20 (7 PWM outputs)
Analog Input Pins 12
DC Current per I/O Pin 40 mA
Flash Memory 32 KB (4 KB used by bootloader)
SRAM 2.5 KB
EEPROM 1 KB
Clock Speed 16 MHz
USB Communication Native USB (no external chip)

Pin Configuration and Descriptions

The Arduino Leonardo R3 has 20 digital I/O pins, 12 of which can also be used as analog inputs. Below is a detailed description of the pin layout:

Digital Pins

Pin Number Functionality Description
0-1 RX/TX Serial communication (UART)
2-13 Digital I/O General-purpose digital input/output
3, 5, 6, 9, 10, 11 PWM Output Pulse-width modulation (PWM) capability
13 Built-in LED Onboard LED connected to pin 13

Analog Pins

Pin Number Functionality Description
A0-A11 Analog Input Read analog signals (0-5V)

Power Pins

Pin Name Functionality Description
VIN Input Voltage External power input (7-12V recommended)
5V Regulated 5V Output Powers external components
3.3V Regulated 3.3V Output Powers low-voltage components
GND Ground Common ground for the circuit
IOREF I/O Reference Voltage Voltage reference for I/O pins

Usage Instructions

The Arduino Leonardo R3 is easy to use and program via the Arduino IDE. Below are the steps and best practices for using the board effectively.

How to Use the Component in a Circuit

  1. Powering the Board:

    • Connect the board to your computer using a USB cable for both power and programming.
    • Alternatively, use an external power supply (7-12V) via the VIN pin or the DC power jack.
  2. Programming the Board:

    • Open the Arduino IDE on your computer.
    • Select "Arduino Leonardo" from the Tools > Board menu.
    • Choose the correct COM port under Tools > Port.
    • Write or load your sketch and click the Upload button.
  3. Connecting Components:

    • Use the digital and analog pins to connect sensors, actuators, and other peripherals.
    • Ensure proper voltage levels and current limits to avoid damaging the board.

Important Considerations and Best Practices

  • USB Communication: The Leonardo can act as a USB device (e.g., keyboard or mouse). Be cautious when uploading sketches that use USB functionality, as it may interfere with programming the board.
  • Power Supply: Avoid exceeding the recommended voltage range (7-12V) to prevent damage to the board.
  • Pin Current Limits: Do not exceed 40 mA per I/O pin to avoid damaging the microcontroller.
  • Reset Button: If the board becomes unresponsive, press the reset button to restart it.

Example Code: Emulating a Keyboard

The following example demonstrates how to use the Arduino Leonardo R3 to emulate a keyboard and send a keystroke to a connected computer.

#include <Keyboard.h> // Include the Keyboard library

void setup() {
  // Start the Keyboard library
  Keyboard.begin();
  delay(1000); // Wait for the computer to recognize the device
}

void loop() {
  // Send the letter 'A' to the computer
  Keyboard.print('A');
  delay(1000); // Wait 1 second before sending the next keystroke
}

Note: Ensure the sketch does not continuously send keystrokes, as it may make the computer unresponsive.

Troubleshooting and FAQs

Common Issues and Solutions

  1. The board is not recognized by the computer:

    • Ensure the USB cable is properly connected and functional.
    • Check that the correct COM port is selected in the Arduino IDE.
    • Press the reset button and try uploading the sketch again.
  2. Sketch upload fails:

    • Verify that "Arduino Leonardo" is selected as the board in the Arduino IDE.
    • Disconnect any components connected to pins 0 and 1, as they are used for serial communication.
  3. USB functionality is not working:

    • Ensure the Keyboard.h or Mouse.h library is included in your sketch.
    • Test with a simple sketch to verify the board's USB communication.
  4. The board overheats:

    • Check for short circuits or excessive current draw from connected components.
    • Ensure the input voltage does not exceed 12V.

FAQs

Q: Can the Leonardo R3 be powered via USB only?
A: Yes, the board can be powered and programmed via USB without the need for an external power supply.

Q: How is the Leonardo different from the Arduino Uno?
A: The Leonardo uses the ATmega32u4 microcontroller, which has built-in USB communication, allowing it to act as a USB device. The Uno requires an external USB-to-serial chip for communication.

Q: Can I use the Leonardo for wireless communication?
A: Yes, you can connect wireless modules (e.g., Bluetooth, Wi-Fi) to the Leonardo via its digital or analog pins.

Q: What is the maximum current the board can supply?
A: The 5V pin can supply up to 500 mA when powered via USB, or up to 1A when powered via an external power supply.

By following this documentation, users can effectively utilize the Arduino Leonardo R3 for a wide range of projects and applications.
