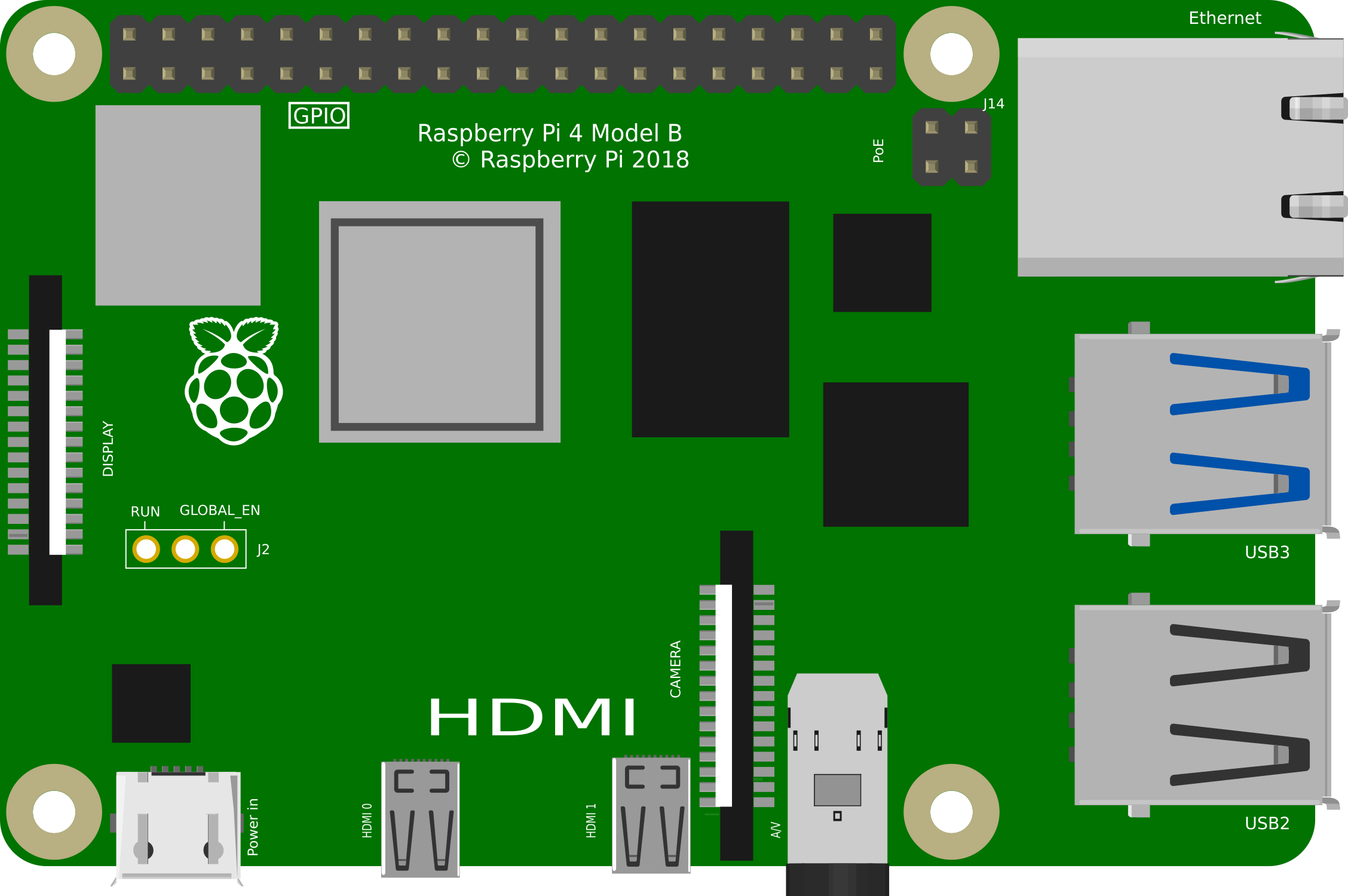

The Raspberry Pi 4B is a compact, affordable single-board computer designed for a wide range of applications. It features a powerful quad-core processor, up to 8GB of RAM, multiple USB ports, dual micro-HDMI outputs, and built-in Wi-Fi and Bluetooth connectivity. This versatile device is ideal for projects such as learning programming, building IoT devices, creating media centers, and more. Its small form factor and robust capabilities make it a popular choice for hobbyists, educators, and professionals alike.
Explore Projects Built with Raspberry Pi 4B
Open Project in Cirkit Designer
Open Project in Cirkit Designer
Open Project in Cirkit Designer
Open Project in Cirkit DesignerExplore Projects Built with Raspberry Pi 4B
Open Project in Cirkit DesignerOpen Project in Cirkit DesignerOpen Project in Cirkit DesignerOpen Project in Cirkit DesignerCommon Applications and Use Cases
- Learning Programming: Ideal for beginners to learn Python, Java, and other languages.
- IoT Projects: Acts as a hub for smart home devices or other IoT systems.
- Media Centers: Can be used to build a home theater system with software like Kodi.
- Retro Gaming: Supports emulators for classic gaming consoles.
- Robotics: Powers robots and other automated systems.
- Edge Computing: Handles lightweight AI and machine learning tasks at the edge.
Technical Specifications
The Raspberry Pi 4B offers a range of technical features that make it suitable for various applications. Below are the key specifications:
General Specifications
| Feature | Specification |
|---|---|
| Processor | Quad-core Cortex-A72 (ARM v8) 64-bit @ 1.5GHz |
| RAM Options | 2GB, 4GB, or 8GB LPDDR4 |
| Storage | MicroSD card slot (supports up to 1TB) |
| Connectivity | Wi-Fi 802.11ac, Bluetooth 5.0, Gigabit Ethernet |
| USB Ports | 2x USB 3.0, 2x USB 2.0 |
| Video Output | 2x micro-HDMI (supports up to 4K resolution) |
| GPIO Pins | 40-pin header (2.54mm pitch) |
| Power Supply | 5V/3A via USB-C |
| Dimensions | 85.6mm x 56.5mm x 17mm |
GPIO Pin Configuration
The Raspberry Pi 4B features a 40-pin GPIO header for interfacing with external components. Below is the pinout:
| Pin Number | Function | Description |
|---|---|---|
| 1 | 3.3V Power | Provides 3.3V power output |
| 2 | 5V Power | Provides 5V power output |
| 3 | GPIO2 (SDA1) | I2C Data Line |
| 4 | 5V Power | Provides 5V power output |
| 5 | GPIO3 (SCL1) | I2C Clock Line |
| 6 | Ground | Ground connection |
| ... | ... | ... |
| 39 | Ground | Ground connection |
| 40 | GPIO21 | General-purpose I/O |
For a complete GPIO pinout diagram, refer to the official Raspberry Pi documentation.
Usage Instructions
Setting Up the Raspberry Pi 4B
- Prepare the MicroSD Card:
- Download the Raspberry Pi OS from the official website.
- Use software like Balena Etcher to flash the OS onto the microSD card.
- Connect Peripherals:
- Attach a keyboard, mouse, and monitor via USB and HDMI ports.
- Insert the microSD card into the slot on the Raspberry Pi.
- Power On:
- Connect a 5V/3A USB-C power supply to the Raspberry Pi.
- The device will boot into the Raspberry Pi OS setup screen.
- Configure Settings:
- Follow the on-screen instructions to set up Wi-Fi, language, and other preferences.
Using GPIO Pins
The GPIO pins can be used to interface with sensors, LEDs, and other components. Below is an example of controlling an LED using Python:
Import the GPIO library
import RPi.GPIO as GPIO import time
Set the GPIO mode to BCM (Broadcom pin numbering)
GPIO.setmode(GPIO.BCM)
Define the GPIO pin connected to the LED
LED_PIN = 18
Set the LED pin as an output
GPIO.setup(LED_PIN, GPIO.OUT)
try: while True: GPIO.output(LED_PIN, GPIO.HIGH) # Turn the LED on time.sleep(1) # Wait for 1 second GPIO.output(LED_PIN, GPIO.LOW) # Turn the LED off time.sleep(1) # Wait for 1 second except KeyboardInterrupt: # Clean up GPIO settings on exit GPIO.cleanup()
Best Practices
- Use a high-quality power supply to ensure stable operation.
- Avoid shorting GPIO pins to prevent damage to the board.
- Use a heatsink or fan for cooling during intensive tasks.
- Regularly update the Raspberry Pi OS for security and performance improvements.
Troubleshooting and FAQs
Common Issues
No Display on Monitor:
- Ensure the micro-HDMI cable is securely connected.
- Verify that the monitor is set to the correct input source.
- Check if the Raspberry Pi OS is properly installed on the microSD card.
Wi-Fi Not Connecting:
- Double-check the Wi-Fi credentials entered during setup.
- Ensure the router is within range and functioning properly.
- Update the Raspberry Pi OS to fix potential driver issues.
Overheating:
- Use a heatsink or fan to improve cooling.
- Avoid placing the Raspberry Pi in an enclosed space without ventilation.
GPIO Pins Not Working:
- Verify the pin configuration in your code.
- Check for loose connections or damaged components.
- Ensure the GPIO library is installed and up to date.
FAQs
Q: Can I power the Raspberry Pi 4B via GPIO pins?
A: Yes, you can power the Raspberry Pi using the 5V and GND GPIO pins, but this bypasses the onboard power management and is not recommended for beginners.
Q: What is the maximum resolution supported by the Raspberry Pi 4B?
A: The Raspberry Pi 4B supports dual 4K displays at 60Hz via its micro-HDMI ports.
Q: Can I use the Raspberry Pi 4B for AI and machine learning?
A: Yes, the Raspberry Pi 4B is capable of running lightweight AI and machine learning models, especially when paired with tools like TensorFlow Lite or Coral USB accelerators.
Q: How do I update the Raspberry Pi OS?
A: Run the following commands in the terminal:
sudo apt update
sudo apt full-upgrade
By following this documentation, users can effectively set up and utilize the Raspberry Pi 4B for a variety of projects.
