How to Use Adafruit MPR121 Gator: Examples, Pinouts, and Specs

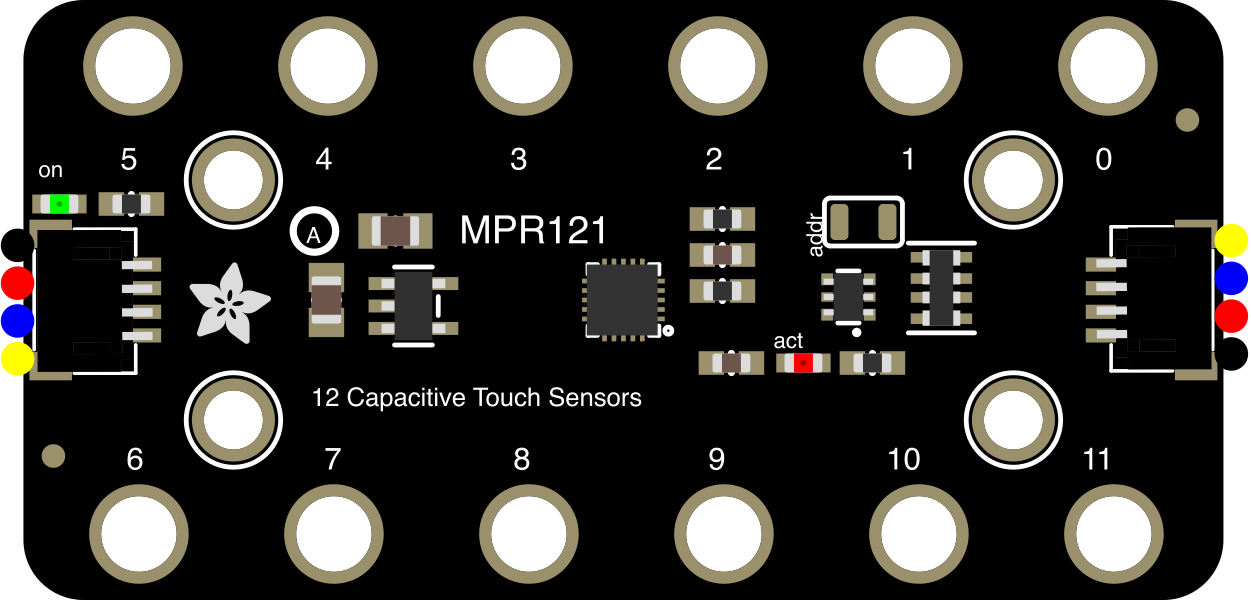

The Adafruit MPR121 Gator (Manufacturer Part ID: 4830) is a capacitive touch sensor breakout board designed for detecting touch inputs on up to 12 individual pads. This versatile component is ideal for creating interactive projects, touch-sensitive interfaces, and other applications requiring touch detection. Its compact design and I2C communication make it easy to integrate into a variety of microcontroller-based systems, including Arduino and Raspberry Pi.

• Interactive art installations
• Touch-sensitive musical instruments
• DIY touchpads and keyboards
• Proximity sensing for robotics
• Educational STEM projects

The Adafruit MPR121 Gator is based on the MPR121 capacitive touch sensor IC. Below are its key technical details:

The Adafruit MPR121 Gator breakout board has the following pin layout:

1. Power the Board: Connect the VIN pin to a 3.3V or 5V power source and the GND pin to ground.
2. Connect I2C Lines: Connect the SDA and SCL pins to the corresponding I2C pins on your microcontroller.
3. Optional Connections:
   • Use the IRQ pin to detect touch events via interrupts.
   • Use the ADDR pin to change the I2C address if multiple MPR121 boards are used.
4. Attach Touch Pads: Connect conductive materials (e.g., copper tape, wires) to the 12 touch input pads on the breakout board.

• Pull-Up Resistors: Ensure that your I2C lines (SDA and SCL) have pull-up resistors (typically 4.7kΩ). Many microcontroller boards, like Arduino, include these by default.
• Avoid Noise: Keep the touch input wires short to minimize noise and interference.
• Grounding: Ensure proper grounding for reliable touch detection.
• I2C Address Conflicts: If using multiple MPR121 boards, configure unique I2C addresses using the ADDR pin.

Below is an example of how to use the Adafruit MPR121 Gator with an Arduino UNO. This code uses the Adafruit_MPR121 library, which can be installed via the Arduino Library Manager.

#include <Wire.h>
#include <Adafruit_MPR121.h>

// Create an MPR121 object
Adafruit_MPR121 cap = Adafruit_MPR121();

void setup() {
  Serial.begin(9600);
  while (!Serial) {
    // Wait for the serial connection to initialize
    delay(10);
  }

  Serial.println("Adafruit MPR121 Capacitive Touch Sensor Test");

  // Initialize the MPR121 sensor
  if (!cap.begin(0x5A)) {
    Serial.println("MPR121 not found. Check wiring or I2C address!");
    while (1);
  }
  Serial.println("MPR121 found!");
}

void loop() {
  // Read touch status
  uint16_t touched = cap.touched();

  // Iterate through all 12 touch inputs
  for (uint8_t i = 0; i < 12; i++) {
    if (touched & (1 << i)) {
      // If a touch is detected on pad i, print a message
      Serial.print("Pad ");
      Serial.print(i);
      Serial.println(" is touched.");
    }
  }

  delay(100); // Small delay to avoid flooding the serial monitor
}

• The cap.begin(0x5A) function initializes the MPR121 sensor with the default I2C address (0x5A). Change this address if needed.
• The cap.touched() function returns a 12-bit value where each bit corresponds to the touch status of a pad.

1. MPR121 Not Detected

   • Cause: Incorrect wiring or I2C address mismatch.
   • Solution: Double-check the connections and ensure the I2C address matches the one configured in the code.

2. Touch Inputs Not Responding

   • Cause: Poor grounding or excessive noise.
   • Solution: Ensure proper grounding and minimize the length of touch input wires.

3. Erratic or False Touch Events

   • Cause: Electrical noise or interference.
   • Solution: Use shielded cables for touch inputs and avoid running wires near high-frequency signals.

4. Multiple Boards Not Working

   • Cause: I2C address conflict.
   • Solution: Configure unique I2C addresses for each board using the ADDR pin.

Q: Can I use the MPR121 with a 3.3V microcontroller?
A: Yes, the MPR121 is compatible with both 3.3V and 5V systems.

Q: How do I change the I2C address?
A: Connect the ADDR pin to GND, VIN, SDA, or SCL to set the address to 0x5A, 0x5B, 0x5C, or 0x5D, respectively.

Q: What materials can I use for touch pads?
A: You can use any conductive material, such as copper tape, aluminum foil, or conductive paint.

Q: Can the MPR121 detect proximity?
A: Yes, the MPR121 can detect proximity by adjusting its sensitivity settings in the library.

This concludes the documentation for the Adafruit MPR121 Gator. For further assistance, refer to the Adafruit website or community forums.
