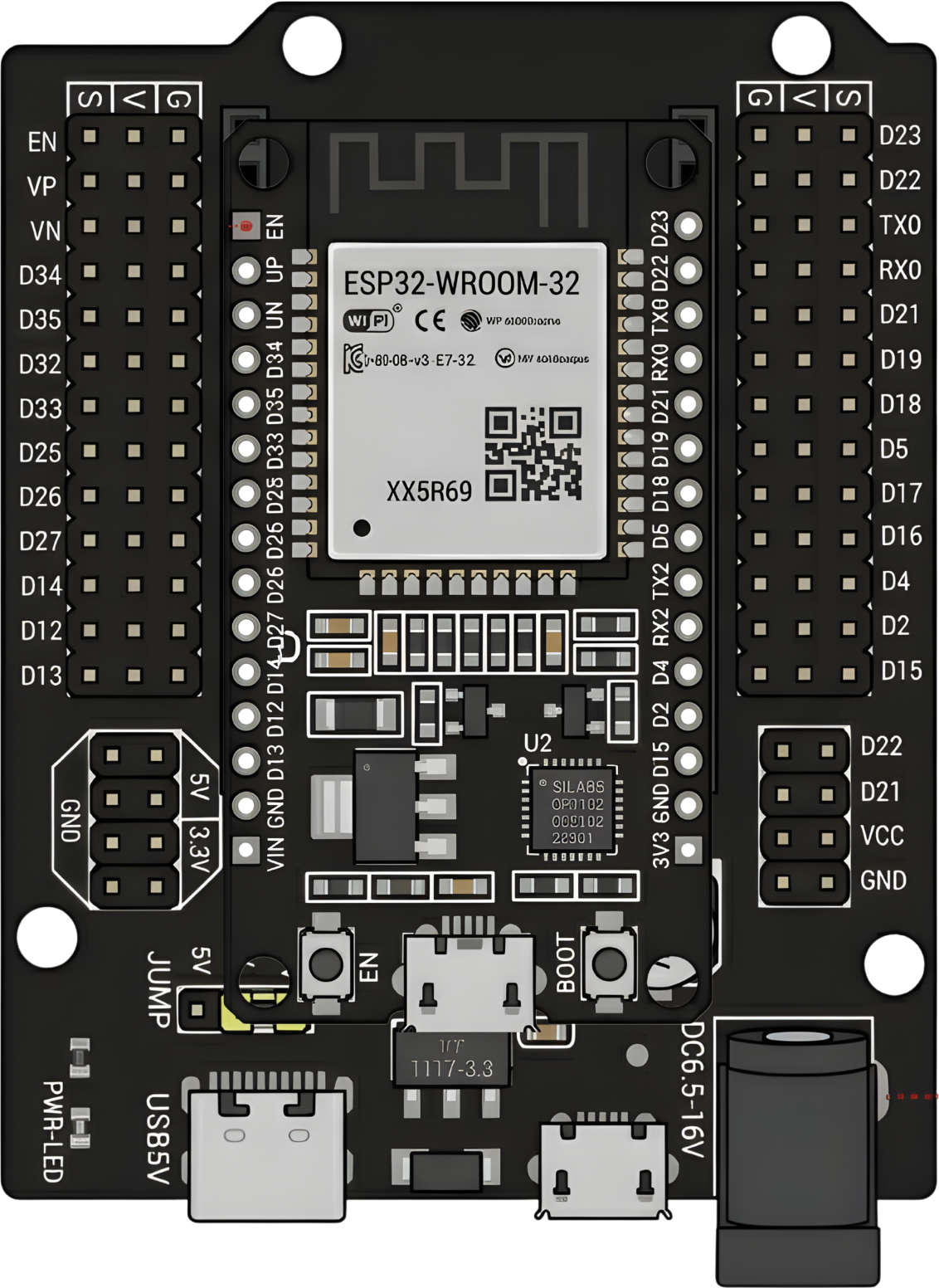

How to Use ESP32 with Expansion Board: Examples, Pinouts, and Specs

The ESP32 is a powerful microcontroller with integrated Wi-Fi and Bluetooth capabilities, making it an ideal choice for Internet of Things (IoT) applications. It features a dual-core processor, low-power operation, and a wide range of peripherals. When paired with an expansion board, the ESP32 becomes even more versatile, offering additional GPIO pins, power management features, and improved connectivity options. This combination simplifies prototyping and development for both beginners and experienced users.

• IoT devices and smart home automation
• Wireless sensor networks
• Robotics and automation systems
• Wearable devices
• Data logging and remote monitoring

The pin configuration of the ESP32 with an expansion board may vary slightly depending on the specific board model. Below is a general pinout description:

1. Powering the Board:

   • Connect the ESP32 expansion board to your computer via a USB cable. This provides both power and a communication interface for programming.
   • Alternatively, supply 5V to the VIN pin or 3.3V to the 3V3 pin.

2. Programming the ESP32:

   • Install the Arduino IDE and add the ESP32 board package via the Board Manager.
   • Select the appropriate ESP32 board model from the Tools menu.
   • Connect the board to your computer and select the correct COM port.

3. Connecting Peripherals:

   • Use the GPIO pins to connect sensors, actuators, or other peripherals.
   • Ensure that the voltage levels of connected devices are compatible with the ESP32 (3.3V logic).

4. Uploading Code:

   • Write your code in the Arduino IDE or another compatible environment.
   • Click the upload button to flash the code to the ESP32.

The following example demonstrates how to blink an LED connected to GPIO2 of the ESP32.

// Define the GPIO pin where the LED is connected
const int ledPin = 2;

void setup() {
  // Set the LED pin as an output
  pinMode(ledPin, OUTPUT);
}

void loop() {
  // Turn the LED on
  digitalWrite(ledPin, HIGH);
  delay(1000); // Wait for 1 second

  // Turn the LED off
  digitalWrite(ledPin, LOW);
  delay(1000); // Wait for 1 second
}

• Voltage Levels: The ESP32 operates at 3.3V logic. Avoid connecting 5V devices directly to its GPIO pins without level shifters.
• Power Supply: Ensure a stable power supply, especially when using Wi-Fi or Bluetooth, as these features can cause power spikes.
• Boot Mode: If the ESP32 does not boot properly, check the BOOT and EN pins. Pressing the BOOT button while resetting the board can help enter programming mode.

1. ESP32 Not Detected by Computer:

   • Ensure the USB cable is functional and supports data transfer.
   • Install the correct USB-to-serial driver for your operating system.

2. Code Upload Fails:

   • Check that the correct board and COM port are selected in the Arduino IDE.
   • Press and hold the BOOT button while uploading the code.

3. Wi-Fi Connection Issues:

   • Verify the SSID and password in your code.
   • Ensure the router is within range and supports 2.4 GHz Wi-Fi (ESP32 does not support 5 GHz).

4. Random Resets or Instability:

   • Use a stable power source with sufficient current (at least 500 mA).
   • Add capacitors to the power supply lines to reduce noise.

Q: Can I use the ESP32 with a 5V sensor?
A: Yes, but you will need a level shifter to convert the 5V signal to 3.3V for the ESP32 GPIO pins.

Q: How do I put the ESP32 into deep sleep mode?
A: Use the esp_deep_sleep_start() function in your code. Refer to the ESP32 documentation for configuring wake-up sources.

Q: Can I use the ESP32 with an external antenna?
A: Some ESP32 modules support external antennas. Check if your module has an IPEX connector and configure the antenna selection accordingly.

Q: What is the maximum range of the ESP32's Wi-Fi?
A: The range depends on environmental factors but typically extends up to 100 meters in open spaces.

By following this documentation, you can effectively utilize the ESP32 with an expansion board for a wide range of applications.
