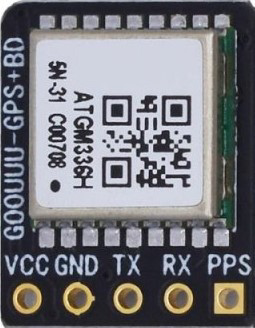

How to Use ATGM336H: Examples, Pinouts, and Specs

The ATGM336H is a high-performance GPS module designed to deliver precise positioning and navigation capabilities. It integrates a built-in antenna, ensuring ease of use and compact design. With its low power consumption and support for multiple communication interfaces, the ATGM336H is ideal for a wide range of applications, including robotics, drones, automotive systems, and IoT devices. Its robust performance and reliability make it a popular choice for developers and engineers working on location-based solutions.

• Robotics and autonomous systems
• Drones and UAVs (Unmanned Aerial Vehicles)
• Automotive navigation systems
• IoT devices requiring GPS functionality
• Outdoor tracking and geolocation systems

The ATGM336H GPS module is designed to meet the needs of modern positioning systems. Below are its key technical details:

The ATGM336H module has a total of 10 pins. Below is the pinout and description:

The ATGM336H GPS module is straightforward to integrate into your project. Below are the steps and best practices for using the module effectively.

1. Power Supply: Connect the VCC pin to a 3.3V power source and the GND pin to ground.
2. Communication Interface:
   • For UART communication, connect the TXD pin to the RX pin of your microcontroller and the RXD pin to the TX pin of your microcontroller.
   • For I2C communication, connect the SDA and SCL pins to the corresponding I2C pins on your microcontroller.
3. Optional Connections:
   • Use the PPS pin for precise timing synchronization if required.
   • Connect an external antenna to the ANT pin for improved signal reception in challenging environments.
4. Reset: The RESET pin can be used to restart the module. Pull it low momentarily to reset the module.

• Ensure the power supply is stable and within the specified voltage range (3.0V to 3.6V).
• Place the module in an open area for optimal GPS signal reception. Avoid placing it near metal objects or inside enclosures that block signals.
• If using an external antenna, ensure it is compatible with the L1 frequency band (1575.42 MHz).
• Configure the update rate and communication interface settings as per your application requirements.

Below is an example of how to connect and use the ATGM336H module with an Arduino UNO via UART:

#include <SoftwareSerial.h>

// Define RX and TX pins for SoftwareSerial
SoftwareSerial gpsSerial(10, 11); // RX = Pin 10, TX = Pin 11

void setup() {
  Serial.begin(9600); // Initialize Serial Monitor at 9600 baud
  gpsSerial.begin(9600); // Initialize GPS module at 9600 baud

  Serial.println("ATGM336H GPS Module Test");
}

void loop() {
  // Check if data is available from the GPS module
  while (gpsSerial.available()) {
    char c = gpsSerial.read(); // Read a character from the GPS module
    Serial.print(c); // Print the character to the Serial Monitor
  }
}

• The default baud rate of the ATGM336H is 9600. If you change it, ensure the Arduino code matches the new baud rate.
• Use the PPS pin for applications requiring precise timing, such as time synchronization in distributed systems.

1. No GPS Fix (No Position Data)

   • Cause: Poor signal reception due to obstructions or indoor placement.
   • Solution: Place the module in an open area with a clear view of the sky. Use an external antenna if necessary.

2. Module Not Responding

   • Cause: Incorrect wiring or power supply issues.
   • Solution: Double-check all connections and ensure the power supply is within the specified range (3.0V to 3.6V).

3. Garbage Data on Serial Monitor

   • Cause: Mismatched baud rate between the module and the microcontroller.
   • Solution: Verify and set the correct baud rate in your code.

4. Intermittent Signal Loss

   • Cause: Electromagnetic interference or poor antenna placement.
   • Solution: Move the module away from sources of interference and ensure proper antenna placement.

1. Can the ATGM336H work indoors?

   • The module may work indoors near windows, but signal reception is significantly better outdoors.

2. What is the purpose of the PPS pin?

   • The PPS pin provides a precise timing pulse, which is useful for time synchronization in applications like network time servers.

3. Can I use a 5V power supply for the module?

   • No, the module operates within a voltage range of 3.0V to 3.6V. Using a 5V supply may damage the module.

4. How do I increase the update rate?

   • The update rate can be configured via specific commands sent to the module. Refer to the ATGM336H datasheet for details on command syntax.

By following this documentation, you can effectively integrate and use the ATGM336H GPS module in your projects.
