How to Use SSOP24: Examples, Pinouts, and Specs

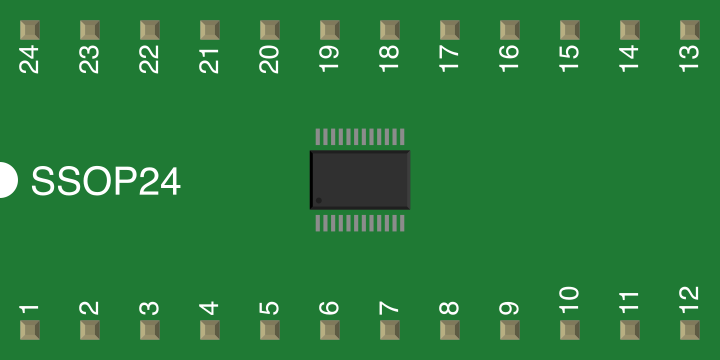

The SSOP24 (Shrink Small Outline Package with 24 pins) is a type of surface-mount integrated circuit (IC) package. It is characterized by its compact size, low profile, and high pin density, making it ideal for applications where space is a critical factor. The SSOP24 package is commonly used in consumer electronics, automotive systems, communication devices, and industrial equipment. Its small footprint and reliable performance make it a popular choice for high-density circuit designs.

• Microcontrollers and digital signal processors (DSPs)
• Memory modules (e.g., EEPROM, Flash)
• Analog-to-digital converters (ADCs) and digital-to-analog converters (DACs)
• Power management ICs
• Communication interfaces (e.g., UART, I2C, SPI)

• Package Type: SSOP (Shrink Small Outline Package)
• Number of Pins: 24
• Pin Pitch: 0.635 mm (distance between adjacent pins)
• Body Width: 5.3 mm (typical)
• Body Length: 7.8 mm (typical)
• Height: 1.75 mm (maximum)
• Mounting Type: Surface-mount technology (SMT)
• Thermal Resistance: Varies by IC, typically 50–100 °C/W
• Operating Temperature Range: -40 °C to +125 °C (depending on the IC inside the package)

The pin configuration of an SSOP24 package depends on the specific IC housed within the package. Below is a generic example of a pinout for an SSOP24 microcontroller:

Note: The actual pinout may vary depending on the IC inside the SSOP24 package. Always refer to the datasheet of the specific IC for accurate pin descriptions.

1. PCB Design: Ensure your PCB layout matches the SSOP24 footprint. The pin pitch is 0.635 mm, so precise solder pad alignment is critical.
2. Soldering: Use surface-mount soldering techniques such as reflow soldering. A stencil and solder paste are recommended for accurate solder application.
3. Power Supply: Verify the voltage and current requirements of the IC inside the SSOP24 package. Connect the VCC and GND pins to the appropriate power source.
4. Signal Connections: Connect the signal pins (e.g., GPIO, UART, I2C, SPI) to the corresponding components in your circuit.
5. Bypass Capacitors: Place decoupling capacitors (e.g., 0.1 µF) close to the VCC pin to reduce noise and stabilize the power supply.

• Thermal Management: Ensure adequate heat dissipation, especially for high-power ICs. Use thermal vias or a heat sink if necessary.
• ESD Protection: Handle the SSOP24 package with care to avoid electrostatic discharge (ESD) damage. Use an ESD-safe workstation.
• Programming and Debugging: If the IC is programmable, ensure that the programming/debugging interface (e.g., JTAG, SWD) is accessible.

If the SSOP24 package contains a microcontroller, you can interface it with an Arduino UNO. Below is an example of Arduino code to communicate with an SSOP24 microcontroller via I2C:

#include <Wire.h> // Include the Wire library for I2C communication

#define SSOP24_I2C_ADDRESS 0x40 // Replace with the actual I2C address of the SSOP24 IC

void setup() {
  Wire.begin(); // Initialize I2C communication
  Serial.begin(9600); // Initialize serial communication for debugging
  Serial.println("Initializing SSOP24 communication...");
}

void loop() {
  Wire.beginTransmission(SSOP24_I2C_ADDRESS); // Start communication with SSOP24
  Wire.write(0x01); // Send a command or register address (example: 0x01)
  Wire.endTransmission(); // End the transmission

  delay(100); // Wait for the SSOP24 to process the command

  Wire.requestFrom(SSOP24_I2C_ADDRESS, 1); // Request 1 byte of data from SSOP24
  if (Wire.available()) {
    int data = Wire.read(); // Read the received data
    Serial.print("Received data: ");
    Serial.println(data);
  }

  delay(1000); // Wait before sending the next command
}

Note: Replace SSOP24_I2C_ADDRESS and the command (0x01) with the actual values specified in the datasheet of the IC inside the SSOP24 package.

1. Incorrect Soldering: Misaligned pins or insufficient solder can cause poor connections.
   • Solution: Use a magnifying glass or microscope to inspect solder joints. Reflow solder if necessary.
2. Overheating: Excessive heat during soldering can damage the IC.
   • Solution: Use a temperature-controlled soldering station and follow the recommended reflow profile.
3. No Communication: The SSOP24 IC does not respond to commands.
   • Solution: Verify the power supply, check the I2C/SPI connections, and ensure the correct address or configuration is used.
4. Signal Noise: Unstable signals or data corruption.
   • Solution: Add decoupling capacitors and ensure proper grounding.

• Q: Can I hand-solder an SSOP24 package?
  A: Yes, but it requires precision. Use a fine-tipped soldering iron and flux to avoid bridging pins.

• Q: How do I identify pin 1 on the SSOP24 package?
  A: Pin 1 is typically marked with a dot or a chamfered edge on the package.

• Q: What is the maximum current the SSOP24 package can handle?
  A: This depends on the IC inside the package. Refer to the IC's datasheet for current ratings.

• Q: Can I use the SSOP24 package in high-frequency circuits?
  A: Yes, but ensure proper PCB design with controlled impedance and minimal trace lengths to reduce signal loss.

By following this documentation, you can effectively integrate and troubleshoot the SSOP24 package in your electronic designs. Always consult the specific IC datasheet for detailed information.
