How to Use DHT11 Temperature & Humidity Sensor: Examples, Pinouts, and Specs

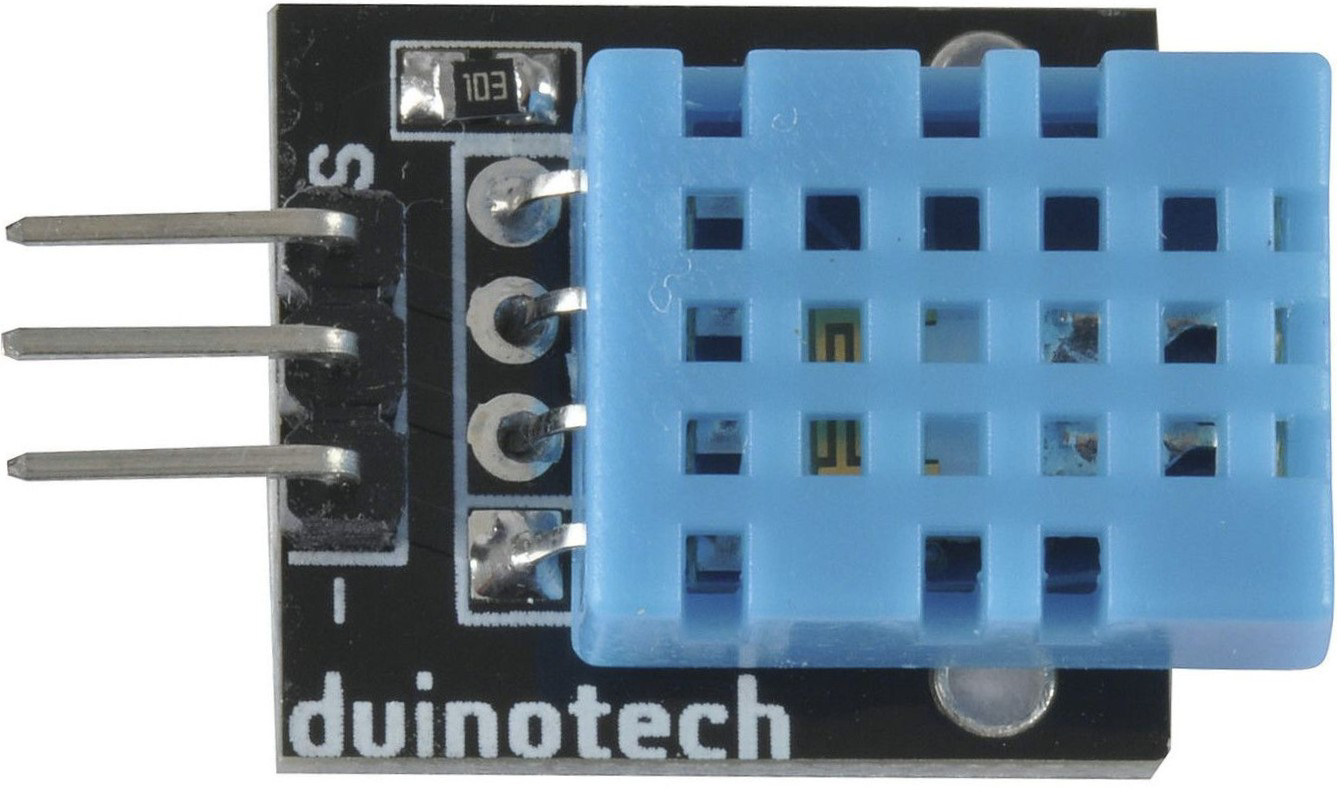

The DHT11 Temperature & Humidity Sensor (Manufacturer: Duinotech, Part ID: XC4520) is a low-cost, digital sensor designed to measure temperature and humidity. It provides reliable and accurate readings, making it ideal for a variety of applications. The DHT11 is widely used in weather monitoring systems, HVAC (Heating, Ventilation, and Air Conditioning) systems, and home automation projects. Its compact size and ease of use make it a popular choice for both hobbyists and professionals.

The following table outlines the key technical details of the DHT11 sensor:

The DHT11 sensor has four pins, as described in the table below:

1. Power the Sensor: Connect the VCC pin to a 3.3V or 5V power source and the GND pin to ground.
2. Data Communication: Connect the DATA pin to a digital input pin on your microcontroller (e.g., Arduino UNO). Use a 10kΩ pull-up resistor between the DATA pin and the VCC pin to ensure stable communication.
3. Read Data: Use a compatible library or write custom code to read temperature and humidity data from the sensor.

• Sampling Rate: The DHT11 has a sampling rate of 1 Hz, meaning it can provide one reading per second. Avoid polling the sensor faster than this rate to ensure accurate readings.
• Environmental Conditions: The sensor is designed for indoor use. Avoid exposing it to extreme temperatures, high humidity, or direct sunlight.
• Wiring Length: Keep the wiring between the sensor and the microcontroller as short as possible to minimize signal degradation.
• Pull-Up Resistor: Always use a pull-up resistor (typically 10kΩ) on the DATA pin to ensure reliable communication.

Below is an example of how to use the DHT11 sensor with an Arduino UNO. This code uses the popular DHT library.

#include <DHT.h>

// Define the pin connected to the DHT11 sensor
#define DHTPIN 2

// Define the type of DHT sensor (DHT11 in this case)
#define DHTTYPE DHT11

// Initialize the DHT sensor
DHT dht(DHTPIN, DHTTYPE);

void setup() {
  Serial.begin(9600); // Start the serial communication at 9600 baud
  dht.begin();        // Initialize the DHT sensor
  Serial.println("DHT11 Sensor Initialized");
}

void loop() {
  delay(2000); // Wait 2 seconds between readings

  // Read temperature and humidity values
  float humidity = dht.readHumidity();
  float temperature = dht.readTemperature();

  // Check if the readings are valid
  if (isnan(humidity) || isnan(temperature)) {
    Serial.println("Failed to read from DHT sensor!");
    return;
  }

  // Print the readings to the Serial Monitor
  Serial.print("Humidity: ");
  Serial.print(humidity);
  Serial.print("%  Temperature: ");
  Serial.print(temperature);
  Serial.println("°C");
}

1. No Data or Incorrect Readings:

   • Ensure the sensor is powered correctly (3.3V to 5.5V).
   • Verify that the pull-up resistor (10kΩ) is connected between the DATA pin and VCC.
   • Check the wiring for loose connections or incorrect pin assignments.

2. Sensor Not Responding:

   • Ensure the sampling rate is not faster than 1 Hz (1 reading per second).
   • Confirm that the correct pin is defined in the code (DHTPIN in the example above).

3. Inconsistent Readings:

   • Avoid placing the sensor near heat sources, fans, or areas with rapid temperature changes.
   • Ensure the sensor is not exposed to condensation or high humidity levels beyond its rated range.

Q: Can the DHT11 measure negative temperatures?
A: No, the DHT11 can only measure temperatures in the range of 0°C to 50°C.

Q: Can I use the DHT11 outdoors?
A: The DHT11 is not designed for outdoor use. Prolonged exposure to extreme conditions may damage the sensor.

Q: What is the difference between the DHT11 and DHT22?
A: The DHT22 offers a wider temperature and humidity range with higher accuracy but is more expensive than the DHT11.

Q: Do I need an external library to use the DHT11 with Arduino?
A: While you can write custom code, it is recommended to use the DHT library for simplicity and reliability.

By following this documentation, you can effectively integrate the DHT11 sensor into your projects and troubleshoot common issues with ease.
