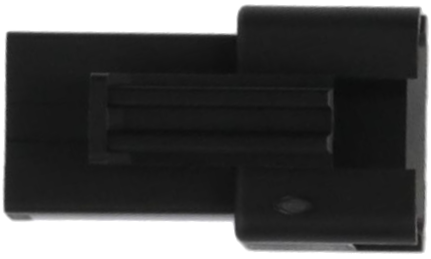

Image of JST SM Female Connector 3 pin
Cirkit Designer LogoDesign with JST SM Female Connector 3 pin in Cirkit Designer

Introduction

The JST SM Female Connector 3 Pin is a compact and reliable connector designed for secure electrical connections in a variety of electronic applications. It features a durable plastic housing with a locking mechanism that ensures a stable connection, making it ideal for projects requiring robust and vibration-resistant wiring. This connector is commonly used in LED lighting systems, RC vehicles, drones, and other low-voltage electronic devices.

Explore Projects Built with JST SM Female Connector 3 pin

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
FTDI to UART Adapter with J26 Connector
Image of J26 CLOSEUP: A project utilizing JST SM Female Connector 3 pin in a practical application
This circuit connects an FTDI USB-to-serial converter to a standard serial interface via a J26 connector. It facilitates serial communication by linking the ground, transmit, receive, data terminal ready, and request to send signals between the FTDI chip and the J26 connector.
Cirkit Designer LogoOpen Project in Cirkit Designer
5-Pin Connector Synchronization Circuit
Image of UMB_Cable: A project utilizing JST SM Female Connector 3 pin in a practical application
This circuit consists of four 5-pin connectors, where two of the connectors are fully interconnected pin-to-pin. The purpose of this setup could be to create a parallel connection between the two 5-pin connectors, possibly for signal distribution or redundancy.
Cirkit Designer LogoOpen Project in Cirkit Designer
Arduino UNO Controlled Relay Switching Circuit
Image of StimDemo: A project utilizing JST SM Female Connector 3 pin in a practical application
This circuit uses an Arduino UNO to control a 1-Channel Relay. The relay is powered by the Arduino's 5V output and is triggered by a digital signal from pin D7 of the Arduino. A JST PH 2.0 connector is connected to the common (C) and normally open (NO) contacts of the relay, allowing an external device to be switched on and off by the relay.
Cirkit Designer LogoOpen Project in Cirkit Designer
ESP32-Controlled Sensor Interface with Rotary Encoders and Proximity Sensing
Image of Advisory: A project utilizing JST SM Female Connector 3 pin in a practical application
This circuit is designed for control and data acquisition, featuring an ESP32 microcontroller that processes signals from rotary encoders and various sensors including inductive proximity sensors and a water flow sensor. It includes power management components and multiple power input options, suggesting versatility in deployment for automation or monitoring tasks.
Cirkit Designer LogoOpen Project in Cirkit Designer

Explore Projects Built with JST SM Female Connector 3 pin

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Image of J26 CLOSEUP: A project utilizing JST SM Female Connector 3 pin in a practical application
FTDI to UART Adapter with J26 Connector
This circuit connects an FTDI USB-to-serial converter to a standard serial interface via a J26 connector. It facilitates serial communication by linking the ground, transmit, receive, data terminal ready, and request to send signals between the FTDI chip and the J26 connector.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of UMB_Cable: A project utilizing JST SM Female Connector 3 pin in a practical application
5-Pin Connector Synchronization Circuit
This circuit consists of four 5-pin connectors, where two of the connectors are fully interconnected pin-to-pin. The purpose of this setup could be to create a parallel connection between the two 5-pin connectors, possibly for signal distribution or redundancy.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of StimDemo: A project utilizing JST SM Female Connector 3 pin in a practical application
Arduino UNO Controlled Relay Switching Circuit
This circuit uses an Arduino UNO to control a 1-Channel Relay. The relay is powered by the Arduino's 5V output and is triggered by a digital signal from pin D7 of the Arduino. A JST PH 2.0 connector is connected to the common (C) and normally open (NO) contacts of the relay, allowing an external device to be switched on and off by the relay.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Advisory: A project utilizing JST SM Female Connector 3 pin in a practical application
ESP32-Controlled Sensor Interface with Rotary Encoders and Proximity Sensing
This circuit is designed for control and data acquisition, featuring an ESP32 microcontroller that processes signals from rotary encoders and various sensors including inductive proximity sensors and a water flow sensor. It includes power management components and multiple power input options, suggesting versatility in deployment for automation or monitoring tasks.
Cirkit Designer LogoOpen Project in Cirkit Designer

Common Applications:

  • LED strip connections
  • RC vehicles and drones
  • Power supply connections for small electronic devices
  • Signal transmission in low-voltage circuits

Technical Specifications

Below are the key technical details of the JST SM Female Connector 3 Pin:

Parameter Specification
Connector Type JST SM Female
Number of Pins 3
Rated Voltage 250V AC/DC
Rated Current 3A
Wire Gauge Compatibility 22-28 AWG
Material (Housing) Nylon 66 (UL94V-0 flame retardant)
Contact Material Copper alloy with tin plating
Operating Temperature -25°C to +85°C
Locking Mechanism Snap-lock design for secure mating

Pin Configuration and Descriptions

The JST SM Female Connector 3 Pin has three pins, typically used for power, ground, and signal connections. The pinout is as follows:

Pin Number Typical Function Description
1 VCC (Power) Supplies power to the connected device.
2 GND (Ground) Common ground for the circuit.
3 Signal Transmits data or control signals.

Note: The actual pin configuration may vary depending on the application. Always verify the pinout with your circuit design.

Usage Instructions

How to Use the JST SM Female Connector 3 Pin in a Circuit:

  1. Prepare the Wires:

    • Strip the insulation from the ends of the wires you intend to connect (approximately 5-7 mm).
    • Ensure the wires are compatible with the connector's wire gauge (22-28 AWG).
  2. Crimp the Contacts:

    • Use a crimping tool to attach the metal contacts to the stripped wire ends.
    • Ensure the crimp is secure to avoid loose connections.
  3. Insert the Contacts:

    • Insert the crimped contacts into the connector housing until they click into place.
    • Verify that the contacts are fully seated and aligned with the connector's pins.
  4. Connect to the Male Connector:

    • Align the JST SM Female Connector with the corresponding male connector.
    • Push the connectors together until the locking mechanism clicks, ensuring a secure connection.
  5. Test the Connection:

    • Power on your circuit and verify that the connection is functioning as expected.

Important Considerations:

  • Polarity: Double-check the polarity of the connections to avoid damage to your components.
  • Wire Gauge: Use wires within the specified gauge range to ensure proper crimping and electrical conductivity.
  • Locking Mechanism: Ensure the locking mechanism is engaged to prevent accidental disconnections.
  • Environmental Conditions: Avoid exposing the connector to extreme temperatures or moisture beyond its rated specifications.

Example: Connecting to an Arduino UNO

The JST SM Female Connector 3 Pin can be used to connect an LED strip to an Arduino UNO. Below is an example code snippet for controlling an LED strip:

// Example code for controlling an LED strip using Arduino UNO
// Ensure the JST SM Female Connector is properly wired to the LED strip

#define LED_PIN 6  // Pin connected to the signal wire of the LED strip

void setup() {
  pinMode(LED_PIN, OUTPUT);  // Set the LED pin as an output
}

void loop() {
  digitalWrite(LED_PIN, HIGH);  // Turn the LED strip ON
  delay(1000);                 // Wait for 1 second
  digitalWrite(LED_PIN, LOW);   // Turn the LED strip OFF
  delay(1000);                 // Wait for 1 second
}

Note: Ensure the power and ground wires of the JST SM Female Connector are connected to the Arduino's 5V and GND pins, respectively.

Troubleshooting and FAQs

Common Issues:

  1. Loose Connections:

    • Cause: Improper crimping or incomplete insertion of contacts.
    • Solution: Re-crimp the contacts and ensure they are fully seated in the housing.
  2. Connector Not Locking:

    • Cause: Misalignment of the male and female connectors.
    • Solution: Align the connectors carefully and push until the locking mechanism clicks.
  3. No Power or Signal Transmission:

    • Cause: Incorrect wiring or reversed polarity.
    • Solution: Verify the wiring and ensure the pinout matches your circuit design.
  4. Overheating:

    • Cause: Exceeding the rated current or using incompatible wire gauge.
    • Solution: Use wires within the specified gauge range and ensure the current does not exceed 3A.

FAQs:

  • Q: Can I use this connector for high-current applications?
    A: No, the JST SM Female Connector 3 Pin is rated for a maximum current of 3A. For higher currents, consider using a connector with a higher current rating.

  • Q: Is this connector waterproof?
    A: No, the standard JST SM Female Connector is not waterproof. For outdoor or moisture-prone environments, use a waterproof connector.

  • Q: Can I reuse the connector after crimping?
    A: Yes, but you may need to replace the crimped contacts if they are damaged during removal.

  • Q: What tools do I need for crimping?
    A: A dedicated crimping tool designed for JST connectors is recommended for secure and reliable crimps.

By following this documentation, you can effectively use the JST SM Female Connector 3 Pin in your electronic projects.
