How to Use Camdenboss CTB0158-10: Examples, Pinouts, and Specs

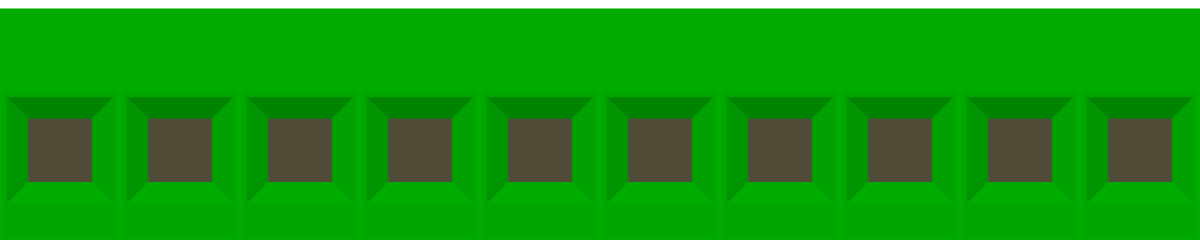

Image of Camdenboss CTB0158-10
Cirkit Designer LogoDesign with Camdenboss CTB0158-10 in Cirkit Designer

Introduction

The Camdenboss CTB0158-10 is a compact terminal block designed for easy wiring and connection of electrical circuits. It features multiple terminals that allow for secure and organized connections, making it an essential component for various electrical and electronic applications. Its robust design ensures reliable performance in both industrial and hobbyist projects.

Explore Projects Built with Camdenboss CTB0158-10

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Satellite-Based Timing and Navigation System with SDR and Atomic Clock Synchronization
Image of GPS 시스템 측정 구성도_Confirm: A project utilizing Camdenboss CTB0158-10 in a practical application
This circuit appears to be a complex system involving power supply management, GPS and timing synchronization, and data communication. It includes a SI-TEX G1 Satellite Compass for GPS data, an XHTF1021 Atomic Rubidium Clock for precise timing, and Ettus USRP B200 units for software-defined radio communication. Power is supplied through various SMPS units and distributed via terminal blocks and DC jacks. Data communication is facilitated by Beelink MINI S12 N95 computers, RS232 splitters, and a 1000BASE-T Media Converter for network connectivity. RF Directional Couplers are used to interface antennas with the USRP units, and the entire system is likely contained within cases for protection and organization.
Cirkit Designer LogoOpen Project in Cirkit Designer
Battery-Powered Adjustable Voltage Regulator with Li-ion 18650 Batteries and BMS
Image of mini ups: A project utilizing Camdenboss CTB0158-10 in a practical application
This circuit is a power management system that uses four Li-ion 18650 batteries connected to a 2S 30A BMS for battery management and protection. The system includes step-up and step-down voltage regulators to provide adjustable output voltages, controlled by a rocker switch, and multiple DC jacks for power input and output.
Cirkit Designer LogoOpen Project in Cirkit Designer
Multi-Stage Voltage Regulation and Indicator LED Circuit
Image of Subramanyak_Power_Circuit: A project utilizing Camdenboss CTB0158-10 in a practical application
This circuit is designed for power management, featuring buck and boost converters for voltage adjustment, and linear regulators for stable voltage output. It includes LEDs for status indication, and terminal blocks for external connections.
Cirkit Designer LogoOpen Project in Cirkit Designer
Bluetooth-Enabled Audio Amplifier System with Subwoofer and Cooling Fan
Image of 2.1 120w amplifier: A project utilizing Camdenboss CTB0158-10 in a practical application
This circuit is a Bluetooth-enabled audio amplifier system with a subwoofer pre-amp and dual 8-ohm speakers. It includes a 12V power supply, a 7805 voltage regulator, and a cooling fan, with a toggle switch to control power. The Bluetooth module provides audio input to the amplifiers, which drive the speakers and subwoofer.
Cirkit Designer LogoOpen Project in Cirkit Designer

Explore Projects Built with Camdenboss CTB0158-10

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Image of GPS 시스템 측정 구성도_Confirm: A project utilizing Camdenboss CTB0158-10 in a practical application
Satellite-Based Timing and Navigation System with SDR and Atomic Clock Synchronization
This circuit appears to be a complex system involving power supply management, GPS and timing synchronization, and data communication. It includes a SI-TEX G1 Satellite Compass for GPS data, an XHTF1021 Atomic Rubidium Clock for precise timing, and Ettus USRP B200 units for software-defined radio communication. Power is supplied through various SMPS units and distributed via terminal blocks and DC jacks. Data communication is facilitated by Beelink MINI S12 N95 computers, RS232 splitters, and a 1000BASE-T Media Converter for network connectivity. RF Directional Couplers are used to interface antennas with the USRP units, and the entire system is likely contained within cases for protection and organization.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of mini ups: A project utilizing Camdenboss CTB0158-10 in a practical application
Battery-Powered Adjustable Voltage Regulator with Li-ion 18650 Batteries and BMS
This circuit is a power management system that uses four Li-ion 18650 batteries connected to a 2S 30A BMS for battery management and protection. The system includes step-up and step-down voltage regulators to provide adjustable output voltages, controlled by a rocker switch, and multiple DC jacks for power input and output.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Subramanyak_Power_Circuit: A project utilizing Camdenboss CTB0158-10 in a practical application
Multi-Stage Voltage Regulation and Indicator LED Circuit
This circuit is designed for power management, featuring buck and boost converters for voltage adjustment, and linear regulators for stable voltage output. It includes LEDs for status indication, and terminal blocks for external connections.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of 2.1 120w amplifier: A project utilizing Camdenboss CTB0158-10 in a practical application
Bluetooth-Enabled Audio Amplifier System with Subwoofer and Cooling Fan
This circuit is a Bluetooth-enabled audio amplifier system with a subwoofer pre-amp and dual 8-ohm speakers. It includes a 12V power supply, a 7805 voltage regulator, and a cooling fan, with a toggle switch to control power. The Bluetooth module provides audio input to the amplifiers, which drive the speakers and subwoofer.
Cirkit Designer LogoOpen Project in Cirkit Designer

Common Applications and Use Cases

  • Electrical wiring in control panels and enclosures
  • Prototyping and testing circuits
  • Industrial automation systems
  • Home automation and DIY electronics projects
  • Securely connecting multiple wires in a compact space

Technical Specifications

The Camdenboss CTB0158-10 is designed to provide reliable and efficient connections. Below are its key technical details:

Parameter Specification
Number of Terminals 10
Terminal Pitch 5.08 mm
Rated Voltage 300 V
Rated Current 16 A
Wire Size Range 24–12 AWG
Operating Temperature -40°C to +105°C
Material (Housing) Polyamide (UL94-V0 flame retardant)
Connection Type Screw terminal
Mounting Style PCB mount

Pin Configuration and Descriptions

The CTB0158-10 terminal block has 10 terminals, each designed for secure wire connections. Below is a description of the pin configuration:

Pin Number Description
1–10 Individual screw terminals for wire connections. Each terminal is isolated from the others to prevent short circuits.

Usage Instructions

The Camdenboss CTB0158-10 is straightforward to use and can be integrated into a variety of circuits. Follow the steps below for proper usage:

How to Use the Component in a Circuit

  1. Prepare the Wires: Strip the insulation from the ends of the wires you intend to connect. Ensure the exposed wire length matches the terminal block's specifications (approximately 5–7 mm).
  2. Insert the Wires: Loosen the screw on the desired terminal using a screwdriver. Insert the stripped wire into the terminal opening.
  3. Secure the Connection: Tighten the screw to clamp the wire securely in place. Avoid overtightening, as this may damage the wire or the terminal.
  4. Mount the Terminal Block: If using the CTB0158-10 on a PCB, solder the pins to the PCB pads. Ensure proper alignment and soldering for a reliable connection.
  5. Test the Circuit: Once all connections are made, test the circuit to ensure proper functionality.

Important Considerations and Best Practices

  • Wire Compatibility: Ensure the wire gauge (24–12 AWG) is compatible with the terminal block.
  • Tightening Torque: Use the appropriate torque when tightening screws to avoid damaging the terminal or wire.
  • Avoid Overloading: Do not exceed the rated voltage (300 V) or current (16 A) to prevent overheating or failure.
  • Environmental Conditions: Ensure the terminal block is used within its operating temperature range (-40°C to +105°C).
  • PCB Design: When mounting on a PCB, ensure the terminal block's pin pitch (5.08 mm) matches the PCB layout.

Example: Connecting to an Arduino UNO

The CTB0158-10 can be used to connect external components (e.g., sensors, motors) to an Arduino UNO. Below is an example of wiring a simple LED circuit:

  1. Connect one terminal of the CTB0158-10 to the Arduino's digital pin (e.g., D13).
  2. Connect another terminal to the LED's anode (+).
  3. Connect the LED's cathode (-) to a resistor, and then connect the resistor to the Arduino's GND pin.

Here is an example Arduino code to blink the LED:

// Define the pin connected to the LED via the terminal block
const int ledPin = 13;

void setup() {
  pinMode(ledPin, OUTPUT); // Set the LED pin as an output
}

void loop() {
  digitalWrite(ledPin, HIGH); // Turn the LED on
  delay(1000);               // Wait for 1 second
  digitalWrite(ledPin, LOW);  // Turn the LED off
  delay(1000);               // Wait for 1 second
}

Troubleshooting and FAQs

Common Issues Users Might Face

  1. Loose Connections: If the wires are not securely clamped, the circuit may not function properly.
    • Solution: Ensure the screws are tightened adequately without damaging the wires.
  2. Overheating: Exceeding the rated current or voltage can cause the terminal block to overheat.
    • Solution: Verify that the circuit's voltage and current are within the terminal block's specifications.
  3. Misaligned Pins on PCB: If the terminal block is not properly aligned during soldering, it may cause connectivity issues.
    • Solution: Double-check the alignment before soldering and ensure the pin pitch matches the PCB layout.
  4. Wire Slippage: Stripped wires may slip out of the terminal if not properly inserted.
    • Solution: Ensure the stripped wire length is correct and fully inserted before tightening the screw.

FAQs

Q: Can the CTB0158-10 be used for high-power applications?
A: The terminal block is rated for a maximum current of 16 A and voltage of 300 V. Ensure your application does not exceed these limits.

Q: Is the CTB0158-10 suitable for outdoor use?
A: The terminal block is not specifically designed for outdoor use. If used outdoors, ensure it is housed in a weatherproof enclosure.

Q: Can stranded wires be used with this terminal block?
A: Yes, stranded wires can be used. However, it is recommended to use ferrules for a more secure and reliable connection.

Q: How do I clean the terminal block?
A: Use a dry cloth or compressed air to remove dust. Avoid using liquids or abrasive materials that may damage the housing.

By following this documentation, you can effectively use the Camdenboss CTB0158-10 terminal block in your projects for secure and organized wiring.
