How to Use I2C DISPLAY: Examples, Pinouts, and Specs

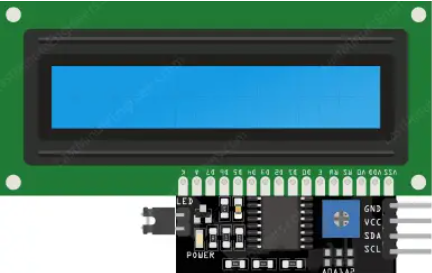

Image of I2C DISPLAY
Cirkit Designer LogoDesign with I2C DISPLAY in Cirkit Designer

Introduction

An I2C display is a type of electronic display that uses the I2C (Inter-Integrated Circuit) communication protocol to interface with microcontrollers. It allows for easy connection and control of the display with minimal wiring, typically requiring only two communication lines (SDA and SCL) in addition to power (VCC and GND). I2C displays are commonly used for showing text, numbers, and simple graphics in embedded systems and DIY electronics projects.

Explore Projects Built with I2C DISPLAY

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
I2C LCD Display Module with Power Supply Interface
Image of J8 +j22 lcd closeup: A project utilizing I2C DISPLAY in a practical application
This circuit interfaces a 20x4 I2C LCD display with a power source and an I2C communication bus. The LCD is powered by a 4.2V supply from a connector and communicates via I2C through another connector, which provides the SCL and SDA lines as well as ground.
Cirkit Designer LogoOpen Project in Cirkit Designer
ESP32 and I2C LCD Display for Data Visualization
Image of layar20x4I2C: A project utilizing I2C DISPLAY in a practical application
This circuit consists of an ESP32 Devkit V1 microcontroller connected to a 20x4 I2C LCD display. The ESP32 controls the LCD via I2C communication, with the SCL and SDA lines connected to GPIO pins D22 and D21, respectively, and provides power and ground connections to the display.
Cirkit Designer LogoOpen Project in Cirkit Designer
Arduino UNO Controlled I2C LCD Display Message Center
Image of LCD I2C: A project utilizing I2C DISPLAY in a practical application
This circuit connects an Arduino UNO to a 16x4 I2C LCD display for the purpose of displaying text. The Arduino is programmed to initialize the display, turn on its backlight, and print 'Hello, World!' on the screen. The I2C communication protocol is used, with the Arduino's A4 and A5 pins serving as SDA and SCL lines, respectively, and power is supplied to the display via the Arduino's 5V output.
Cirkit Designer LogoOpen Project in Cirkit Designer
Arduino Leonardo Controlled LCD Display with I2C Interface
Image of ert: A project utilizing I2C DISPLAY in a practical application
This circuit connects an Arduino Leonardo microcontroller to a 16x2 LCD display via an LCM1602 IIC interface module, enabling the display of text on the LCD. The Arduino is programmed to display the messages 'TEST LCD i2C' and 'KelasRobot.com' on the LCD. The IIC module facilitates communication between the Arduino and the LCD using the I2C protocol, simplifying the wiring and pin usage.
Cirkit Designer LogoOpen Project in Cirkit Designer

Explore Projects Built with I2C DISPLAY

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Image of J8 +j22 lcd closeup: A project utilizing I2C DISPLAY in a practical application
I2C LCD Display Module with Power Supply Interface
This circuit interfaces a 20x4 I2C LCD display with a power source and an I2C communication bus. The LCD is powered by a 4.2V supply from a connector and communicates via I2C through another connector, which provides the SCL and SDA lines as well as ground.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of layar20x4I2C: A project utilizing I2C DISPLAY in a practical application
ESP32 and I2C LCD Display for Data Visualization
This circuit consists of an ESP32 Devkit V1 microcontroller connected to a 20x4 I2C LCD display. The ESP32 controls the LCD via I2C communication, with the SCL and SDA lines connected to GPIO pins D22 and D21, respectively, and provides power and ground connections to the display.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of LCD I2C: A project utilizing I2C DISPLAY in a practical application
Arduino UNO Controlled I2C LCD Display Message Center
This circuit connects an Arduino UNO to a 16x4 I2C LCD display for the purpose of displaying text. The Arduino is programmed to initialize the display, turn on its backlight, and print 'Hello, World!' on the screen. The I2C communication protocol is used, with the Arduino's A4 and A5 pins serving as SDA and SCL lines, respectively, and power is supplied to the display via the Arduino's 5V output.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of ert: A project utilizing I2C DISPLAY in a practical application
Arduino Leonardo Controlled LCD Display with I2C Interface
This circuit connects an Arduino Leonardo microcontroller to a 16x2 LCD display via an LCM1602 IIC interface module, enabling the display of text on the LCD. The Arduino is programmed to display the messages 'TEST LCD i2C' and 'KelasRobot.com' on the LCD. The IIC module facilitates communication between the Arduino and the LCD using the I2C protocol, simplifying the wiring and pin usage.
Cirkit Designer LogoOpen Project in Cirkit Designer

Common Applications and Use Cases

  • Displaying sensor data in real-time
  • User interfaces for embedded systems
  • Debugging and monitoring microcontroller outputs
  • Educational and prototyping projects
  • IoT devices and smart home applications

Technical Specifications

Below are the general technical specifications for a typical I2C display. Note that specific values may vary depending on the manufacturer and model.

Key Technical Details

  • Operating Voltage: 3.3V or 5V (depending on the model)
  • Communication Protocol: I2C (Inter-Integrated Circuit)
  • I2C Address: Typically 0x27 or 0x3F (configurable on some models)
  • Display Type: LCD (Liquid Crystal Display) or OLED (Organic Light Emitting Diode)
  • Character Size: Commonly 16x2 or 20x4 (characters per row x number of rows)
  • Backlight: LED backlight (adjustable on some models)
  • Power Consumption: Typically 20-50mA (with backlight on)

Pin Configuration and Descriptions

The I2C display typically has a 4-pin interface. Below is the pinout:

Pin Name Description
1 GND Ground connection
2 VCC Power supply (3.3V or 5V)
3 SDA Serial Data Line for I2C communication
4 SCL Serial Clock Line for I2C communication

Usage Instructions

How to Use the Component in a Circuit

  1. Connect the Pins:

    • Connect the GND pin of the display to the ground (GND) of your microcontroller.
    • Connect the VCC pin to the 3.3V or 5V power supply, depending on your display model.
    • Connect the SDA pin to the I2C data line of your microcontroller (e.g., A4 on Arduino UNO).
    • Connect the SCL pin to the I2C clock line of your microcontroller (e.g., A5 on Arduino UNO).
  2. Install Required Libraries:

    • For Arduino, install the LiquidCrystal_I2C library or Adafruit_SSD1306 library (for OLED displays) via the Arduino Library Manager.
  3. Write and Upload Code:

    • Use the example code below to initialize and display text on the I2C display.

Example Code for Arduino UNO

#include <Wire.h>                // Include the Wire library for I2C communication
#include <LiquidCrystal_I2C.h>   // Include the library for I2C LCD displays

// Initialize the I2C LCD with address 0x27 and a 16x2 display size
LiquidCrystal_I2C lcd(0x27, 16, 2);

void setup() {
  lcd.begin();                   // Initialize the LCD
  lcd.backlight();               // Turn on the backlight
  lcd.setCursor(0, 0);           // Set the cursor to the first row, first column
  lcd.print("Hello, World!");    // Print a message to the LCD
  lcd.setCursor(0, 1);           // Set the cursor to the second row, first column
  lcd.print("I2C Display!");     // Print another message
}

void loop() {
  // No actions in the loop for this example
}

Important Considerations and Best Practices

  • Check the I2C Address: Use an I2C scanner sketch to determine the correct address of your display if it is not working with the default address (0x27 or 0x3F).
  • Power Supply: Ensure the display is powered with the correct voltage (3.3V or 5V) to avoid damage.
  • Pull-Up Resistors: Some I2C displays include built-in pull-up resistors on the SDA and SCL lines. If your display does not, you may need to add external pull-up resistors (typically 4.7kΩ) to ensure proper communication.
  • Cable Length: Keep the I2C communication lines short to avoid signal degradation.

Troubleshooting and FAQs

Common Issues and Solutions

  1. Display Not Turning On:

    • Verify the power connections (GND and VCC).
    • Check if the backlight is enabled (if applicable).
  2. No Text or Incorrect Characters:

    • Ensure the correct I2C address is used in the code.
    • Verify the SDA and SCL connections to the microcontroller.
  3. Flickering or Unstable Display:

    • Check for loose connections or poor soldering.
    • Add pull-up resistors to the SDA and SCL lines if not already present.
  4. I2C Address Not Detected:

    • Run an I2C scanner sketch to detect the display's address.
    • Ensure no other devices on the I2C bus are causing address conflicts.

FAQs

Q: Can I use multiple I2C displays on the same microcontroller?
A: Yes, you can connect multiple I2C displays as long as each has a unique address. Some displays allow you to change the address using solder jumpers.

Q: What is the maximum cable length for I2C communication?
A: The maximum length depends on the speed of communication and the pull-up resistor values. For standard speeds (100kHz), keep the length under 1 meter for reliable operation.

Q: Can I use an I2C display with a 3.3V microcontroller?
A: Yes, as long as the display supports 3.3V operation. If the display is designed for 5V, use a level shifter to avoid damaging the microcontroller.

Q: How do I adjust the contrast of the display?
A: Many I2C LCD displays have a small potentiometer on the back for contrast adjustment. Turn it with a screwdriver to set the desired contrast level.
