Introduction

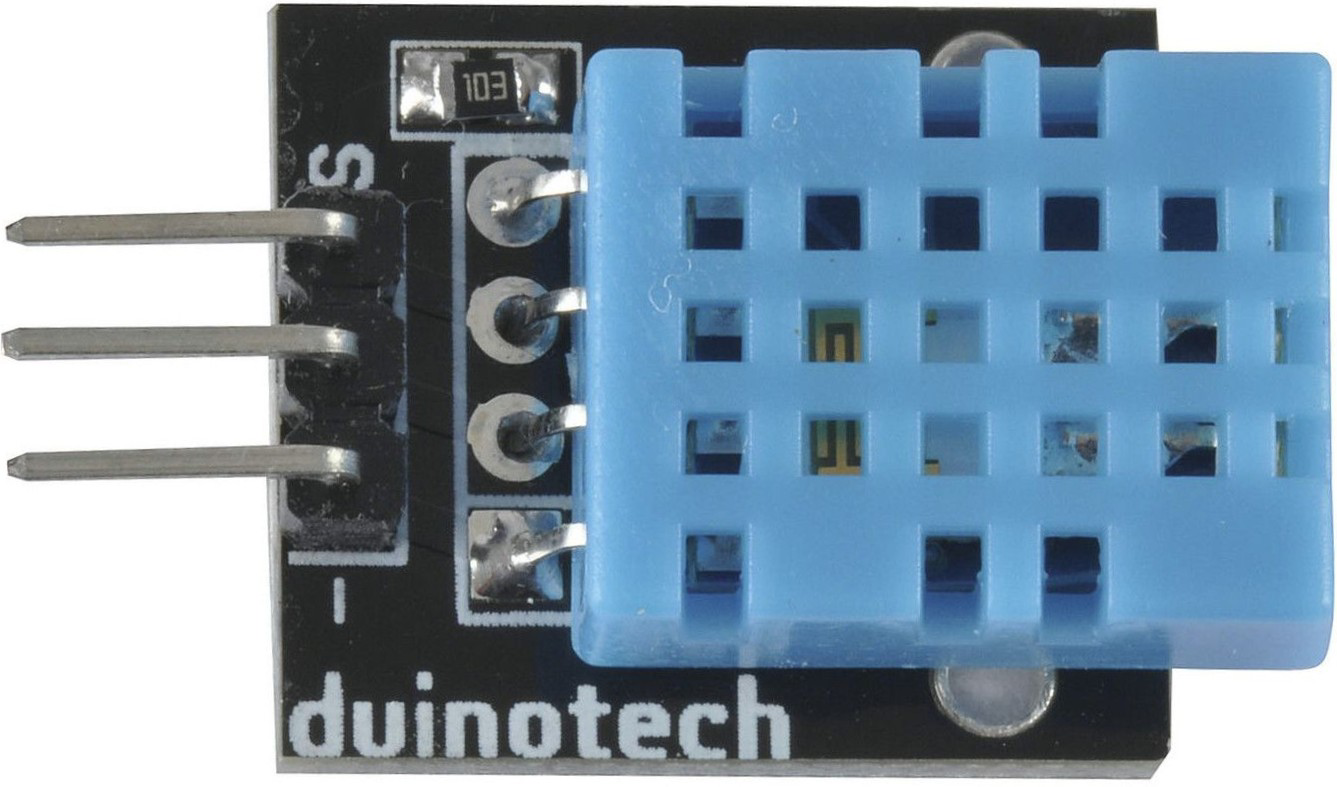

The DHT11 Temperature & Humidity Sensor (Manufacturer: Duinotech, Part ID: XC4520) is a digital sensor designed to measure temperature and humidity with reliable accuracy. It outputs data in a digital format, making it easy to interface with microcontrollers and other digital systems. The DHT11 is widely used in applications such as weather monitoring, HVAC systems, and home automation projects due to its simplicity and cost-effectiveness.
Common Applications:
- Weather stations and environmental monitoring
- HVAC (Heating, Ventilation, and Air Conditioning) systems
- IoT (Internet of Things) devices
- Home automation and smart home projects
- Agricultural monitoring systems
Technical Specifications
The DHT11 sensor is designed for low-cost and low-power applications. Below are its key technical details:
Pin Configuration
The DHT11 sensor has four pins, but only three are typically used in most applications. Below is the pinout description:
Usage Instructions
How to Use the DHT11 in a Circuit
- Power the Sensor: Connect the VCC pin to a 3.3V or 5V power source and the GND pin to ground.
- Data Communication: Connect the DATA pin to a digital input pin on your microcontroller. Use a pull-up resistor (typically 10kΩ) between the DATA pin and VCC to ensure reliable communication.
- Timing Requirements: The DHT11 uses a single-wire communication protocol. Ensure your microcontroller can handle the timing requirements for sending and receiving data.
Example Circuit
Below is a typical connection diagram for interfacing the DHT11 with an Arduino UNO:
- VCC → 5V on Arduino
- DATA → Digital Pin 2 on Arduino (with a 10kΩ pull-up resistor to 5V)
- GND → GND on Arduino
Arduino Code Example
Here is an example Arduino sketch to read temperature and humidity data from the DHT11 sensor:
#include <DHT.h>
// Define the DHT11 pin and type
#define DHTPIN 2 // Pin connected to the DATA pin of DHT11
#define DHTTYPE DHT11 // Specify the sensor type (DHT11)
// Initialize the DHT sensor
DHT dht(DHTPIN, DHTTYPE);
void setup() {
Serial.begin(9600); // Start serial communication at 9600 baud
dht.begin(); // Initialize the DHT sensor
Serial.println("DHT11 Sensor Initialized");
}
void loop() {
delay(2000); // Wait 2 seconds between readings
// Read temperature and humidity
float humidity = dht.readHumidity();
float temperature = dht.readTemperature();
// Check if readings are valid
if (isnan(humidity) || isnan(temperature)) {
Serial.println("Failed to read from DHT11 sensor!");
return;
}
// Print the results to the Serial Monitor
Serial.print("Humidity: ");
Serial.print(humidity);
Serial.print("% Temperature: ");
Serial.print(temperature);
Serial.println("°C");
}
Important Considerations:
- Sampling Rate: The DHT11 can only provide one reading per second. Avoid polling the sensor more frequently.
- Environmental Conditions: Ensure the sensor is not exposed to condensation or extreme temperatures outside its operating range.
- Pull-up Resistor: Always use a pull-up resistor on the DATA line to ensure proper communication.
Troubleshooting and FAQs
Common Issues and Solutions
No Data Output:
- Ensure the sensor is powered correctly (3.3V to 5.5V).
- Verify the pull-up resistor is connected between the DATA pin and VCC.
- Check the wiring and ensure the DATA pin is connected to the correct microcontroller pin.
Incorrect or NaN Readings:
- Ensure the sensor is not exposed to conditions outside its operating range (e.g., high humidity or extreme temperatures).
- Verify the timing in your code matches the DHT11's communication protocol.
- Use a stable power supply to avoid noise or voltage fluctuations.
Slow Response:
- The DHT11 has a sampling rate of 1Hz. Ensure your code does not request data more frequently than once per second.
FAQs
Q: Can I use the DHT11 with a 3.3V microcontroller?
A: Yes, the DHT11 operates within a voltage range of 3.3V to 5.5V, making it compatible with both 3.3V and 5V systems.
Q: What is the maximum cable length for the DHT11?
A: The maximum cable length depends on the pull-up resistor value and environmental noise. Typically, a cable length of up to 20 meters is achievable with a 5V power supply and a 10kΩ pull-up resistor.
Q: How does the DHT11 compare to the DHT22?
A: The DHT22 offers a wider temperature and humidity range with higher accuracy but is more expensive. The DHT11 is suitable for basic applications where cost is a priority.
Q: Can I use multiple DHT11 sensors in one project?
A: Yes, you can use multiple sensors by connecting each DATA pin to a separate digital pin on your microcontroller.
By following this documentation, you can effectively integrate the DHT11 sensor into your projects for reliable temperature and humidity measurements.
