How to Use IR Obstacle Sensor Module: Examples, Pinouts, and Specs

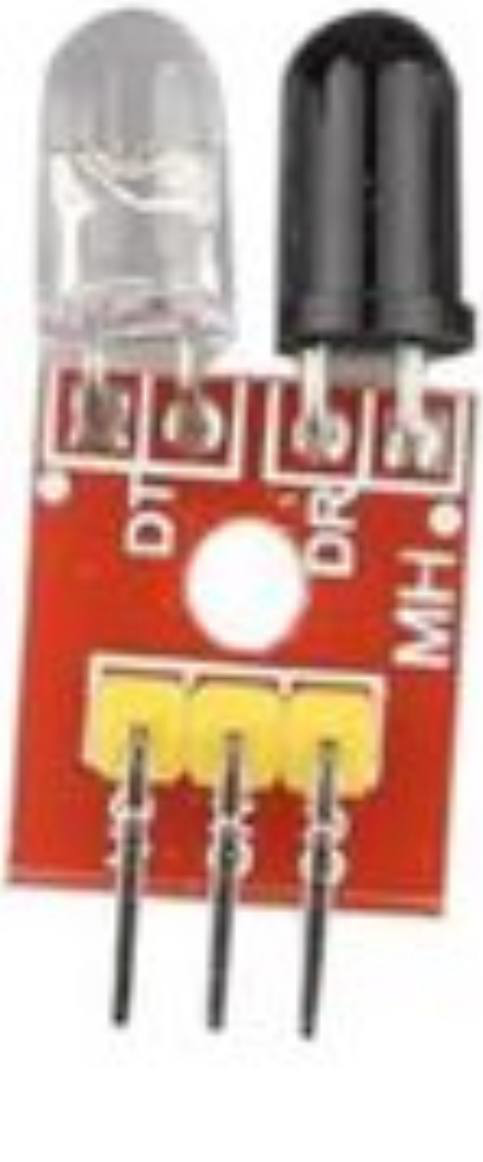

The IR Obstacle Sensor Module is a compact and versatile electronic component designed to detect obstacles using infrared (IR) light. It works by emitting infrared rays and measuring the reflection from nearby objects. When an object is detected within its range, the module outputs a signal, making it ideal for proximity detection and obstacle avoidance.

• Robotics: Obstacle avoidance in autonomous robots
• Security systems: Intrusion detection
• Industrial automation: Object detection on conveyor belts
• Consumer electronics: Touchless switches and counters

The following table outlines the key technical details of the IR Obstacle Sensor Module:

The IR Obstacle Sensor Module typically has three pins. Their configuration and descriptions are as follows:

1. Power the Module: Connect the VCC pin to a 3.3V or 5V power source and the GND pin to the ground of your circuit.
2. Connect the Output: Attach the OUT pin to a digital input pin of your microcontroller or directly to an LED/buzzer for simple obstacle detection.
3. Adjust the Sensitivity: Use the onboard potentiometer to adjust the detection range. Turning it clockwise increases the range, while turning it counterclockwise decreases it.
4. Test the Module: Place an object within the detection range and observe the output signal. The OUT pin will go LOW when an obstacle is detected.

• Ambient Light Interference: The module may be affected by strong ambient light. Use it in controlled lighting conditions for optimal performance.
• Reflective Surfaces: Highly reflective surfaces may cause false readings. Test the module with the intended objects to ensure reliability.
• Power Supply: Ensure a stable power supply to avoid erratic behavior.
• Mounting: Position the module so that the IR transmitter and receiver are unobstructed.

Below is an example of how to use the IR Obstacle Sensor Module with an Arduino UNO:

• Connect the VCC pin of the module to the 5V pin on the Arduino.
• Connect the GND pin of the module to the GND pin on the Arduino.
• Connect the OUT pin of the module to digital pin 2 on the Arduino.

// IR Obstacle Sensor Module Example Code
// This code reads the output of the IR sensor and turns on an LED when
// an obstacle is detected.

#define IR_SENSOR_PIN 2  // Digital pin connected to the OUT pin of the sensor
#define LED_PIN 13       // Built-in LED on Arduino UNO

void setup() {
  pinMode(IR_SENSOR_PIN, INPUT);  // Set the sensor pin as input
  pinMode(LED_PIN, OUTPUT);       // Set the LED pin as output
  Serial.begin(9600);             // Initialize serial communication
}

void loop() {
  int sensorValue = digitalRead(IR_SENSOR_PIN);  // Read the sensor output

  if (sensorValue == LOW) {
    // Obstacle detected
    digitalWrite(LED_PIN, HIGH);  // Turn on the LED
    Serial.println("Obstacle detected!");
  } else {
    // No obstacle
    digitalWrite(LED_PIN, LOW);   // Turn off the LED
    Serial.println("No obstacle.");
  }

  delay(100);  // Small delay for stability
}

1. The module is not detecting obstacles:

   • Ensure the VCC and GND pins are connected properly.
   • Check the sensitivity adjustment potentiometer and increase the detection range if needed.
   • Verify that the object is within the detection range (2cm to 30cm).

2. False detections or erratic behavior:

   • Reduce ambient light interference by shielding the module from direct sunlight or strong light sources.
   • Ensure the power supply is stable and free from noise.

3. Output signal is always HIGH:

   • Confirm that the IR transmitter and receiver are unobstructed.
   • Test the module with a reflective object to ensure the IR beam is functioning.

4. Output signal is always LOW:

   • Check for any physical damage to the module.
   • Verify that the object is not too close or too far from the sensor.

Q: Can the module detect transparent objects?
A: The module may struggle to detect transparent objects like glass due to low IR reflection. Use alternative sensors for such applications.

Q: Can I use this module with a 3.3V microcontroller?
A: Yes, the module operates at 3.3V to 5V, making it compatible with 3.3V microcontrollers like ESP32 or Raspberry Pi Pico.

Q: How do I increase the detection range?
A: Adjust the onboard potentiometer clockwise to increase the detection range. Ensure the object is within the new range.

Q: Is the module suitable for outdoor use?
A: The module is not designed for outdoor use as it may be affected by sunlight and weather conditions. Use it in indoor or controlled environments.
