How to Use 18650 in case: Examples, Pinouts, and Specs

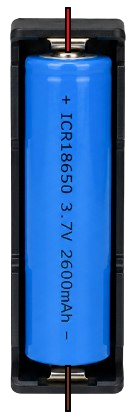

The 18650 in case is a cylindrical lithium-ion rechargeable battery housed in a protective casing. This component is widely used in portable electronics, electric vehicles, and DIY projects due to its high energy density, long cycle life, and robust design. The protective case enhances safety by preventing physical damage and short circuits, making it ideal for applications requiring reliable and portable power sources.

• Power banks and portable chargers
• Flashlights and LED lighting systems
• Electric vehicles and e-bikes
• DIY electronics and robotics projects
• Backup power supplies

The 18650 in case typically has two terminals:

1. Identify the Terminals: Locate the positive (+) and negative (-) terminals on the case.
2. Connect to the Circuit:
   • Use appropriate wires or connectors to attach the battery to your circuit.
   • Ensure correct polarity to avoid damage to the battery or connected components.
3. Charging the Battery:
   • Use a compatible lithium-ion battery charger with a constant current/constant voltage (CC/CV) charging profile.
   • Ensure the charger supports the battery's voltage and capacity specifications.
4. Discharging the Battery:
   • Avoid discharging below 2.5V to prevent damage to the battery.
   • Use a load that matches the battery's discharge current rating.

• Safety First: Never short-circuit the terminals, puncture the case, or expose the battery to fire or water.
• Temperature Monitoring: Avoid using the battery in extreme temperatures to maintain performance and safety.
• Storage: Store the battery in a cool, dry place at ~50% charge for long-term storage.
• Series/Parallel Connections: When connecting multiple 18650 batteries, ensure they are of the same capacity and charge level to prevent imbalances.

The 18650 in case can power an Arduino UNO via its VIN pin. Below is an example of connecting the battery to the Arduino:

// Example: Blinking an LED using Arduino UNO powered by 18650 in case

// Define the LED pin
const int ledPin = 13;

void setup() {
  pinMode(ledPin, OUTPUT); // Set the LED pin as an output
}

void loop() {
  digitalWrite(ledPin, HIGH); // Turn the LED on
  delay(1000);                // Wait for 1 second
  digitalWrite(ledPin, LOW);  // Turn the LED off
  delay(1000);                // Wait for 1 second
}

// Note: Connect the 18650 in case to the Arduino's VIN and GND pins.
// Ensure the battery voltage is within the Arduino's operating range (7-12V).

1. Battery Not Charging:

   • Cause: Faulty charger or incorrect connection.
   • Solution: Verify the charger is compatible and connections are secure.

2. Battery Drains Quickly:

   • Cause: Over-discharge or aging battery.
   • Solution: Replace the battery if it has exceeded its cycle life. Avoid deep discharges.

3. Overheating During Use:

   • Cause: Excessive current draw or poor ventilation.
   • Solution: Ensure the load does not exceed the battery's discharge rating. Improve airflow.

4. No Output Voltage:

   • Cause: Protective circuit triggered due to short circuit or over-discharge.
   • Solution: Recharge the battery to reset the protection circuit.

• Q: Can I use the 18650 in case without a protective circuit?
  A: It is not recommended. The protective case ensures safety by preventing short circuits and over-discharge.

• Q: How do I know when the battery is fully charged?
  A: A fully charged 18650 battery will have a voltage of approximately 4.2V.

• Q: Can I connect multiple 18650 batteries in series or parallel?
  A: Yes, but ensure all batteries are of the same type, capacity, and charge level to avoid imbalances.

• Q: What is the typical lifespan of an 18650 battery?
  A: The lifespan is typically 300-500 charge cycles, depending on usage and care.

By following these guidelines, you can safely and effectively use the 18650 in case for your projects and applications.
