How to Use Relay: Examples, Pinouts, and Specs

A relay is an electromechanical switch that uses an electromagnet to open or close a circuit. It allows a low-power signal to control a higher power circuit, providing isolation and control in various applications. Relays are widely used in automation, home appliances, automotive systems, and industrial equipment to control high-current devices such as motors, lights, and heaters.

• Home Automation: Controlling lights, fans, and other appliances remotely.
• Automotive Systems: Switching headlights, horns, and other high-current components.
• Industrial Control: Managing motors, pumps, and heavy machinery.
• Microcontroller Projects: Interfacing low-power microcontrollers (e.g., Arduino) with high-power devices.
• Safety Systems: Providing electrical isolation between control and power circuits.

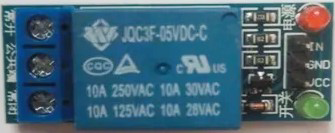

Below are the general technical specifications for a standard 5V single-channel relay module:

• Operating Voltage: 5V DC
• Trigger Voltage: 3.3V to 5V (logic level compatible)
• Maximum Switching Voltage: 250V AC or 30V DC
• Maximum Switching Current: 10A
• Coil Resistance: ~70Ω (varies by model)
• Isolation: Optocoupler isolation (in most relay modules)
• Relay Type: SPDT (Single Pole Double Throw)

The relay module typically has the following pins:

1. Power the Relay Module: Connect the VCC pin to a 5V power source and the GND pin to ground.
2. Control Signal: Connect the IN pin to a microcontroller's GPIO pin or any control signal source.
3. Load Connection:
   • Connect the load's live wire to the COM terminal.
   • Connect the load's other wire to either the NO or NC terminal, depending on the desired default state:
     • NO (Normally Open): The load is OFF when the relay is inactive and ON when the relay is activated.
     • NC (Normally Closed): The load is ON when the relay is inactive and OFF when the relay is activated.
4. Control the Relay: Use the control signal to toggle the relay state.

• Isolation: Ensure proper electrical isolation between the control circuit and the high-power circuit to prevent damage.
• Flyback Diode: If you're using a bare relay (not a module), add a flyback diode across the relay coil to protect the circuit from voltage spikes.
• Current Ratings: Do not exceed the relay's maximum current and voltage ratings to avoid overheating or damage.
• Power Supply: Use a stable 5V power supply to ensure reliable operation.
• Microcontroller Compatibility: Ensure the control signal voltage matches the relay's trigger voltage.

Below is an example of how to control a relay using an Arduino UNO:

// Define the relay control pin
const int relayPin = 7;

void setup() {
  pinMode(relayPin, OUTPUT); // Set the relay pin as an output
  digitalWrite(relayPin, LOW); // Ensure the relay is off initially
}

void loop() {
  digitalWrite(relayPin, HIGH); // Turn the relay ON
  delay(1000); // Keep it ON for 1 second
  digitalWrite(relayPin, LOW); // Turn the relay OFF
  delay(1000); // Keep it OFF for 1 second
}

Code Explanation:

• The relayPin is connected to the IN pin of the relay module.
• The relay is turned ON by setting the pin HIGH and turned OFF by setting it LOW.
• A delay of 1 second is used to toggle the relay state repeatedly.

1. Relay Not Activating:

   • Cause: Insufficient control signal voltage.
   • Solution: Ensure the control signal voltage matches the relay's trigger voltage (3.3V or 5V).

2. Load Not Switching:

   • Cause: Incorrect wiring of the load to the relay terminals.
   • Solution: Verify the load is connected to the correct terminals (COM, NO, or NC).

3. Relay Clicking but No Output:

   • Cause: Faulty relay or insufficient power supply.
   • Solution: Check the relay module and ensure a stable 5V power supply.

4. Microcontroller Resetting When Relay Activates:

   • Cause: Voltage spikes or insufficient power supply.
   • Solution: Use a flyback diode across the relay coil and ensure the power supply can handle the load.

• Q: Can I use a 3.3V microcontroller with a 5V relay module?
  A: Yes, if the relay module supports 3.3V trigger signals. Otherwise, use a level shifter or transistor circuit.

• Q: Can I control an AC load with a DC relay?
  A: Yes, as long as the relay's maximum switching voltage and current ratings are not exceeded.

• Q: Why is my relay module heating up?
  A: This could be due to exceeding the relay's current rating. Ensure the load is within the specified limits.

• Q: Can I use multiple relays with one microcontroller?
  A: Yes, but ensure the microcontroller can supply enough current to drive all the relays or use a separate power supply.

This documentation provides a comprehensive guide to understanding and using relays effectively in various applications.
