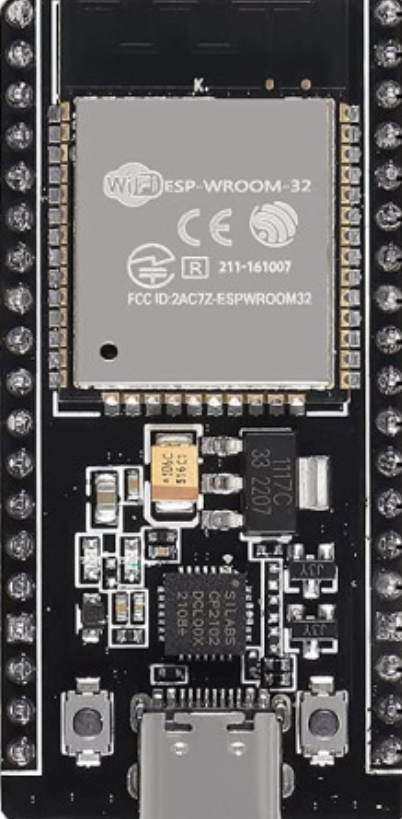

How to Use ESP32 WROOM-32 C Type CP2102 USB Dual Core WiFi + Bluetooth 38 Pins: Examples, Pinouts, and Specs

The ESP32 WROOM-32 C Type CP2102 USB Dual Core WiFi + Bluetooth 38 Pins is a highly versatile microcontroller module manufactured by ESP32. It features a dual-core processor, integrated WiFi and Bluetooth capabilities, and a CP2102 USB interface for seamless programming and connectivity. With 38 GPIO pins, this module is ideal for a wide range of IoT, automation, and embedded system applications.

• IoT Devices: Smart home systems, environmental monitoring, and connected appliances.
• Wearable Technology: Fitness trackers and health monitoring devices.
• Robotics: Wireless control and sensor integration.
• Prototyping: Rapid development of WiFi- and Bluetooth-enabled projects.
• Industrial Automation: Remote monitoring and control systems.

The following table outlines the key technical details of the ESP32 WROOM-32 C Type module:

The ESP32 WROOM-32 C Type module has 38 pins. Below is a summary of the pin configuration:

1. Powering the Module:

   • Connect the module to a 5V power source via the USB port or the VIN pin.
   • Ensure the power supply is stable and within the specified voltage range.

2. Programming the Module:

   • Use a USB cable to connect the module to your computer.
   • Install the CP2102 USB-to-UART driver if not already installed.
   • Use the Arduino IDE or ESP-IDF (Espressif IoT Development Framework) for programming.

3. Connecting Peripherals:

   • Use the GPIO pins to connect sensors, actuators, or other peripherals.
   • Ensure proper voltage levels and current limits for connected devices.

4. Boot Mode Selection:

   • Hold the IO0 pin low while resetting the module to enter bootloader mode for programming.

• Voltage Levels: The GPIO pins operate at 3.3V. Avoid applying 5V directly to the pins to prevent damage.
• Deep Sleep Mode: Use deep sleep mode to minimize power consumption in battery-powered applications.
• Antenna Placement: Ensure the onboard antenna has sufficient clearance from metal objects to avoid signal interference.
• Heat Management: The module may heat up during operation. Ensure proper ventilation in enclosed designs.

Below is an example of how to use the ESP32 WROOM-32 C Type with the Arduino IDE to blink an LED connected to GPIO2:

// Example: Blink an LED connected to GPIO2 on the ESP32 WROOM-32 C Type

// Define the GPIO pin for the LED
#define LED_PIN 2

void setup() {
  // Initialize the LED pin as an output
  pinMode(LED_PIN, OUTPUT);
}

void loop() {
  // Turn the LED on
  digitalWrite(LED_PIN, HIGH);
  delay(1000); // Wait for 1 second

  // Turn the LED off
  digitalWrite(LED_PIN, LOW);
  delay(1000); // Wait for 1 second
}

1. Module Not Detected by Computer:

   • Ensure the CP2102 driver is installed correctly.
   • Try using a different USB cable or port.

2. Failed to Upload Code:

   • Check the boot mode by holding IO0 low during reset.
   • Verify the correct COM port and board settings in the Arduino IDE.

3. WiFi Connection Issues:

   • Ensure the correct SSID and password are used in the code.
   • Check for interference or weak signal strength.

4. Overheating:

   • Reduce the clock speed or optimize the code to lower power consumption.
   • Ensure proper ventilation around the module.

Q: Can the ESP32 WROOM-32 C Type operate on battery power?
A: Yes, the module can operate on battery power. Use a 3.7V LiPo battery with a voltage regulator to provide 3.3V to the VIN pin.

Q: How do I reset the module?
A: Press the onboard reset button or toggle the EN pin.

Q: Can I use the ESP32 WROOM-32 C Type with Bluetooth and WiFi simultaneously?
A: Yes, the module supports simultaneous use of Bluetooth and WiFi, but performance may vary depending on the application.
