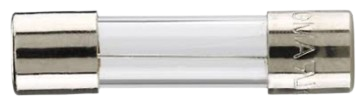

How to Use 10a Fuse: Examples, Pinouts, and Specs

A 10A fuse is a safety device designed to protect electrical circuits by interrupting the flow of current when it exceeds 10 amps. This prevents damage to sensitive components, reduces the risk of overheating, and minimizes the chance of electrical fires. Fuses are essential in a wide range of applications, from household appliances to automotive systems and industrial equipment.

• Automotive Systems: Protects circuits in vehicles, such as lighting, audio systems, and power outlets.
• Household Appliances: Ensures safety in devices like microwaves, washing machines, and air conditioners.
• Industrial Equipment: Safeguards machinery and control systems from overcurrent conditions.
• DIY Electronics Projects: Provides circuit protection in custom-built devices and prototypes.

• Rated Current: 10A
• Voltage Rating: Typically 250V AC or 32V DC (check specific fuse type)
• Breaking Capacity: Varies by model, commonly 1000A at rated voltage
• Fuse Type: Can be glass tube, ceramic, or blade type
• Response Time: Fast-acting or time-delay (slow-blow) depending on application
• Dimensions: Varies by type (e.g., 5x20mm for glass fuses, standard blade size for automotive)

For blade-type 10A fuses, the pin configuration is as follows:

For cylindrical (glass or ceramic) fuses, the pins are the two metallic end caps, which are interchangeable.

1. Determine the Fuse Type: Select the appropriate fuse type (fast-acting or time-delay) based on the application. For example:
   • Use a fast-acting fuse for sensitive electronics.
   • Use a time-delay fuse for devices with inrush currents, such as motors.
2. Verify Ratings: Ensure the fuse's current and voltage ratings match the circuit requirements.
3. Install the Fuse:
   • For blade fuses: Insert the fuse into the designated fuse holder or fuse box.
   • For cylindrical fuses: Place the fuse in a compatible fuse holder or clip.
4. Test the Circuit: Power on the circuit and verify normal operation. If the fuse blows immediately, check for short circuits or excessive current draw.

• Do Not Exceed Ratings: Never use a fuse with a higher current rating than specified for the circuit, as this compromises safety.
• Inspect Regularly: Periodically check fuses for signs of damage or wear, especially in high-vibration environments.
• Use Proper Holders: Ensure the fuse holder is compatible with the fuse type and securely holds the fuse in place.
• Spare Fuses: Keep spare 10A fuses on hand for quick replacements in case of failure.

When connecting an Arduino UNO to a motor or other high-current device, a 10A fuse can protect the circuit. Below is an example of how to wire the fuse:

1. Connect the positive terminal of the power supply to one end of the fuse.
2. Connect the other end of the fuse to the motor's positive terminal.
3. Connect the motor's negative terminal to the Arduino's ground (GND).

// Example Arduino code for controlling a motor with a fuse in the circuit
const int motorPin = 9; // Pin connected to motor driver input

void setup() {
  pinMode(motorPin, OUTPUT); // Set motor pin as output
}

void loop() {
  digitalWrite(motorPin, HIGH); // Turn motor on
  delay(5000); // Run motor for 5 seconds
  digitalWrite(motorPin, LOW); // Turn motor off
  delay(5000); // Wait for 5 seconds before restarting
}

// Note: Ensure the 10A fuse is installed between the power supply and motor
// to protect the circuit from overcurrent conditions.

1. Fuse Blows Immediately:

   • Cause: Short circuit or excessive current draw.
   • Solution: Inspect the circuit for wiring errors or faulty components. Verify the load's current requirements.

2. Fuse Does Not Blow During Overcurrent:

   • Cause: Incorrect fuse rating or type.
   • Solution: Replace the fuse with one that matches the circuit's current and voltage requirements.

3. Fuse Holder Overheats:

   • Cause: Poor contact between the fuse and holder.
   • Solution: Ensure the fuse is securely seated in the holder. Replace damaged holders.

4. Frequent Fuse Failures:

   • Cause: Repeated overcurrent conditions or incorrect fuse type.
   • Solution: Identify and address the root cause of overcurrent. Use a time-delay fuse if inrush currents are causing failures.

• Q: Can I replace a 10A fuse with a higher-rated fuse?
  A: No, using a higher-rated fuse compromises safety and may lead to circuit damage or fire.

• Q: How do I know if a fuse is blown?
  A: Inspect the fuse visually. For glass fuses, look for a broken filament. For other types, use a multimeter to check continuity.

• Q: Can I use a 10A fuse for both AC and DC circuits?
  A: Yes, but ensure the fuse's voltage rating is suitable for the circuit's voltage (e.g., 250V AC or 32V DC).

• Q: What is the difference between fast-acting and time-delay fuses?
  A: Fast-acting fuses blow quickly during overcurrent, while time-delay fuses tolerate short inrush currents before blowing.

By following this documentation, you can safely and effectively use a 10A fuse in your circuits.
