How to Use DHT22: Examples, Pinouts, and Specs

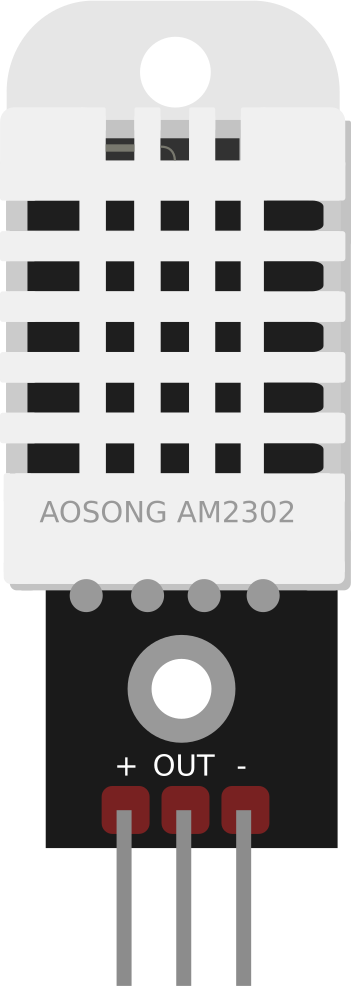

The DHT22 is a digital temperature and humidity sensor that provides accurate readings of temperature in Celsius and humidity in percentage. It is widely used in applications requiring environmental monitoring, such as weather stations, HVAC systems, greenhouses, and IoT projects. The DHT22 is known for its high precision and reliability, making it a popular choice for both hobbyists and professionals.

• Temperature Range: -40°C to +80°C
• Temperature Accuracy: ±0.5°C
• Humidity Range: 0% to 100% RH
• Humidity Accuracy: ±2% RH
• Operating Voltage: 3.3V to 6V
• Max Current Consumption: 2.5mA (during data transmission)
• Communication Protocol: Single-wire digital signal
• Sampling Period: Minimum 2 seconds between readings
• Dimensions: 15.1mm x 25mm x 7.7mm

The DHT22 has four pins, but only three are typically used in most applications. Below is the pinout:

1. Power the Sensor: Connect the VCC pin to a 3.3V or 5V power source and the GND pin to ground.
2. Data Communication: Connect the DATA pin to a digital input pin on your microcontroller. Use a 10kΩ pull-up resistor between the DATA pin and VCC to ensure proper signal transmission.
3. Timing Considerations: The DHT22 requires a minimum of 2 seconds between consecutive readings to ensure accurate data.
4. Library Support: For ease of use, many microcontroller platforms (e.g., Arduino) have libraries available to interface with the DHT22.

Below is an example of how to connect and use the DHT22 with an Arduino UNO:

• VCC: Connect to the 5V pin on the Arduino.
• DATA: Connect to digital pin 2 on the Arduino, with a 10kΩ pull-up resistor to 5V.
• GND: Connect to the GND pin on the Arduino.

// Include the DHT library (install from Arduino Library Manager if not already installed)
#include <DHT.h>

// Define the pin where the DHT22 is connected
#define DHTPIN 2  // Digital pin 2

// Define the DHT sensor type
#define DHTTYPE DHT22

// Initialize the DHT sensor
DHT dht(DHTPIN, DHTTYPE);

void setup() {
  Serial.begin(9600);  // Start serial communication at 9600 baud
  Serial.println("DHT22 Sensor Initialization");
  dht.begin();  // Initialize the DHT sensor
}

void loop() {
  delay(2000);  // Wait 2 seconds between readings

  // Read temperature and humidity
  float humidity = dht.readHumidity();
  float temperature = dht.readTemperature();

  // Check if the readings are valid
  if (isnan(humidity) || isnan(temperature)) {
    Serial.println("Failed to read from DHT sensor!");
    return;
  }

  // Print the readings to the Serial Monitor
  Serial.print("Humidity: ");
  Serial.print(humidity);
  Serial.print(" %\t");
  Serial.print("Temperature: ");
  Serial.print(temperature);
  Serial.println(" °C");
}

• Pull-Up Resistor: Always use a 10kΩ pull-up resistor on the DATA pin to ensure reliable communication.
• Sampling Period: Avoid reading data more frequently than every 2 seconds, as the sensor requires time to stabilize between readings.
• Environmental Factors: Place the sensor in a location free from direct sunlight or water exposure to ensure accurate readings and prevent damage.
• Cable Length: Keep the cable length between the sensor and the microcontroller as short as possible to avoid signal degradation.

1. No Data or Incorrect Readings:

   • Ensure the pull-up resistor is properly connected between the DATA pin and VCC.
   • Verify that the sensor is powered with the correct voltage (3.3V to 6V).
   • Check the wiring and ensure all connections are secure.

2. "Failed to read from DHT sensor!" Error in Arduino:

   • Ensure the DATA pin is connected to the correct digital pin on the Arduino.
   • Verify that the DHT library is correctly installed and included in your code.
   • Check for loose or faulty connections.

3. Slow Response Time:

   • Ensure the sampling period is at least 2 seconds between readings.
   • Avoid placing the sensor in an environment with rapidly changing conditions.

Q: Can the DHT22 be used outdoors?
A: Yes, but it must be housed in a protective enclosure to shield it from direct sunlight, rain, and dust.

Q: What is the difference between the DHT22 and DHT11?
A: The DHT22 offers higher accuracy and a wider range for both temperature and humidity compared to the DHT11. However, the DHT22 is slightly more expensive.

Q: Can I use the DHT22 with a 3.3V microcontroller?
A: Yes, the DHT22 operates within a voltage range of 3.3V to 6V, making it compatible with 3.3V systems.

Q: How long is the DHT22's lifespan?
A: The DHT22 is designed for long-term use and can last several years under normal operating conditions. However, exposure to extreme environments may reduce its lifespan.
