How to Use Arduino UNO: Examples, Pinouts, and Specs

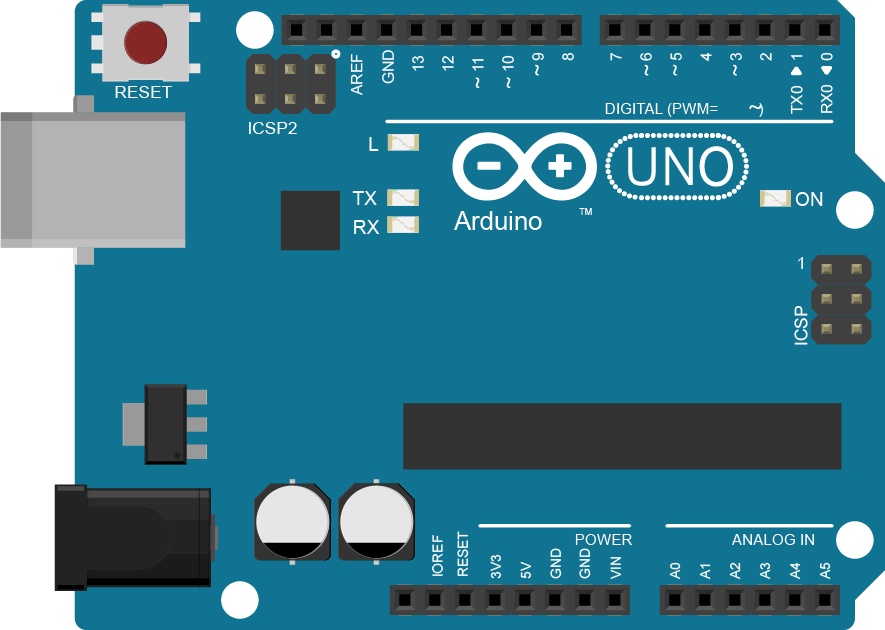

The Arduino UNO is a microcontroller board based on the ATmega328P. It is one of the most popular and versatile development boards in the Arduino ecosystem, widely used for building digital devices and interactive objects that can sense and control the physical world. Its simplicity, open-source nature, and extensive community support make it an excellent choice for both beginners and experienced developers.

• Prototyping and development of IoT devices
• Robotics and automation projects
• Sensor data acquisition and processing
• Home automation systems
• Educational purposes for learning programming and electronics

The Arduino UNO is designed to provide a balance of performance, ease of use, and flexibility. Below are its key technical details:

The Arduino UNO has a total of 28 pins, including digital, analog, power, and communication pins. Below is a detailed description of the pin configuration:

The Arduino UNO is straightforward to use and can be programmed using the Arduino IDE. Below are the steps to get started and some best practices:

1. Install the Arduino IDE: Download and install the Arduino IDE from the official website.
2. Connect the Board: Use a USB Type-B cable to connect the Arduino UNO to your computer.
3. Select the Board and Port:
   • Open the Arduino IDE.
   • Go to Tools > Board and select "Arduino UNO."
   • Go to Tools > Port and select the correct COM port.
4. Write or Load a Sketch: Write your program (called a sketch) or load an example sketch from File > Examples.
5. Upload the Sketch: Click the upload button in the IDE to transfer the code to the Arduino UNO.

The following example demonstrates how to blink an LED connected to pin 13:

// This sketch blinks the onboard LED connected to pin 13
// at a 1-second interval.

void setup() {
  pinMode(13, OUTPUT); // Set pin 13 as an output pin
}

void loop() {
  digitalWrite(13, HIGH); // Turn the LED on
  delay(1000);            // Wait for 1 second
  digitalWrite(13, LOW);  // Turn the LED off
  delay(1000);            // Wait for 1 second
}

• Power Supply: Ensure the input voltage does not exceed 12V to avoid damaging the board.
• Pin Current Limits: Do not exceed 20 mA per I/O pin to prevent damage to the microcontroller.
• Static Protection: Handle the board carefully to avoid static discharge, which can damage the components.
• Libraries: Use Arduino libraries to simplify working with sensors, displays, and other peripherals.

1. Problem: The Arduino UNO is not detected by the computer.

   • Solution: Ensure the USB cable is properly connected and functional. Check if the correct COM port is selected in the Arduino IDE.

2. Problem: The sketch does not upload to the board.

   • Solution: Verify that the correct board and port are selected in the IDE. Press the reset button on the board before uploading.

3. Problem: The onboard LED does not blink as expected.

   • Solution: Check the code for errors. Ensure the LED is connected to the correct pin and is not damaged.

4. Problem: The board overheats during operation.

   • Solution: Ensure the input voltage is within the recommended range (7-12V). Avoid drawing excessive current from the pins.

• Q: Can I power the Arduino UNO with a battery?

  • A: Yes, you can power the board using a 9V battery connected to the VIN pin or the DC power jack.

• Q: How do I reset the Arduino UNO?

  • A: Press the reset button on the board, or connect the RESET pin to GND momentarily.

• Q: Can I use the Arduino UNO for wireless communication?

  • A: Yes, you can use wireless modules like Bluetooth, Wi-Fi, or RF modules with the Arduino UNO.

• Q: Is the Arduino UNO compatible with shields?

  • A: Yes, the Arduino UNO is compatible with a wide range of shields designed for the Arduino ecosystem.

By following this documentation, you can effectively use the Arduino UNO for a variety of projects and applications.
