How to Use LCD screen: Examples, Pinouts, and Specs

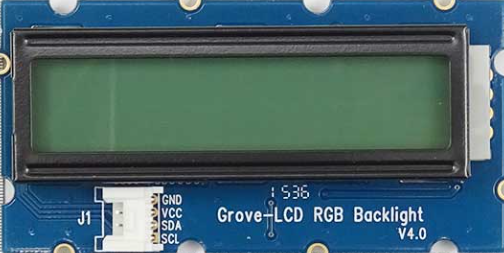

Image of LCD screen
Cirkit Designer LogoDesign with LCD screen in Cirkit Designer

Introduction

A liquid crystal display (LCD) screen is a flat-panel display technology that uses liquid crystals to produce images. It is widely used in various applications due to its lightweight, energy-efficient, and high-resolution capabilities. LCD screens are commonly found in televisions, computer monitors, digital clocks, calculators, and portable devices such as smartphones and handheld gaming consoles. In electronics projects, smaller LCD modules are often used to display text, numbers, or simple graphics, making them a popular choice for hobbyists and professionals alike.

Explore Projects Built with LCD screen

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Arduino Nano and I2C LCD Display Power Supply Project
Image of lcd display: A project utilizing LCD screen in a practical application
This circuit features an Arduino Nano microcontroller interfaced with a 20x4 I2C LCD panel for display purposes. The LCD panel is powered by a 5V AC-DC power supply unit, and the Arduino Nano communicates with the LCD via I2C protocol using its A5 (SDA) and A1 (SCL) pins.
Cirkit Designer LogoOpen Project in Cirkit Designer
Arduino Leonardo Controlled I2C LCD Display for Text Scrolling
Image of final year project: A project utilizing LCD screen in a practical application
This circuit features an Arduino Leonardo microcontroller connected to a 16x2 I2C LCD screen, powered by a 5V battery. The Arduino is programmed to display and continuously scroll a message on the LCD. The I2C communication protocol is used for the microcontroller to interface with the LCD, utilizing the SDA and SCL connections for data transfer.
Cirkit Designer LogoOpen Project in Cirkit Designer
Arduino Mega 2560 I2C LCD Display Interface
Image of project 3: A project utilizing LCD screen in a practical application
This circuit consists of an Arduino Mega 2560 microcontroller connected to a 16x2 I2C LCD screen. The LCD screen is powered by the Arduino's 5V and GND pins, and communicates with the Arduino via the I2C protocol using the SCL and SDA pins.
Cirkit Designer LogoOpen Project in Cirkit Designer
Arduino Mega 2560 LCD Display Controller with Adjustable Contrast
Image of conexion de reles: A project utilizing LCD screen in a practical application
This circuit features an Arduino Mega 2560 microcontroller connected to a 16x2 LCD display for visual output. A trimmer potentiometer is used to adjust the contrast of the LCD. The Arduino provides power to the LCD and controls it via several PWM pins.
Cirkit Designer LogoOpen Project in Cirkit Designer

Explore Projects Built with LCD screen

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Image of lcd display: A project utilizing LCD screen in a practical application
Arduino Nano and I2C LCD Display Power Supply Project
This circuit features an Arduino Nano microcontroller interfaced with a 20x4 I2C LCD panel for display purposes. The LCD panel is powered by a 5V AC-DC power supply unit, and the Arduino Nano communicates with the LCD via I2C protocol using its A5 (SDA) and A1 (SCL) pins.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of final year project: A project utilizing LCD screen in a practical application
Arduino Leonardo Controlled I2C LCD Display for Text Scrolling
This circuit features an Arduino Leonardo microcontroller connected to a 16x2 I2C LCD screen, powered by a 5V battery. The Arduino is programmed to display and continuously scroll a message on the LCD. The I2C communication protocol is used for the microcontroller to interface with the LCD, utilizing the SDA and SCL connections for data transfer.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of project 3: A project utilizing LCD screen in a practical application
Arduino Mega 2560 I2C LCD Display Interface
This circuit consists of an Arduino Mega 2560 microcontroller connected to a 16x2 I2C LCD screen. The LCD screen is powered by the Arduino's 5V and GND pins, and communicates with the Arduino via the I2C protocol using the SCL and SDA pins.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of conexion de reles: A project utilizing LCD screen in a practical application
Arduino Mega 2560 LCD Display Controller with Adjustable Contrast
This circuit features an Arduino Mega 2560 microcontroller connected to a 16x2 LCD display for visual output. A trimmer potentiometer is used to adjust the contrast of the LCD. The Arduino provides power to the LCD and controls it via several PWM pins.
Cirkit Designer LogoOpen Project in Cirkit Designer

Technical Specifications

Below are the general technical specifications for a standard 16x2 character LCD module, which is one of the most commonly used types in electronics projects:

Key Specifications

  • Display Type: 16x2 character LCD (16 characters per row, 2 rows)
  • Operating Voltage: 4.7V to 5.3V DC
  • Current Consumption: 1mA to 2mA (without backlight), ~20mA (with backlight)
  • Interface: Parallel (4-bit or 8-bit mode)
  • Character Size: ~5.2mm x 8.5mm
  • Backlight: LED (commonly white, green, or blue)
  • Operating Temperature: -20°C to 70°C

Pin Configuration and Descriptions

The 16x2 LCD module typically has 16 pins, as described in the table below:

Pin No. Name Description
1 VSS Ground (0V) connection
2 VDD Power supply (4.7V to 5.3V)
3 V0 Contrast adjustment (connect to a potentiometer for contrast control)
4 RS Register Select (0: Command mode, 1: Data mode)
5 RW Read/Write (0: Write to LCD, 1: Read from LCD)
6 E Enable pin (used to latch data to the LCD)
7 D0 Data pin 0 (used in 8-bit mode; leave unconnected in 4-bit mode)
8 D1 Data pin 1 (used in 8-bit mode; leave unconnected in 4-bit mode)
9 D2 Data pin 2 (used in 8-bit mode; leave unconnected in 4-bit mode)
10 D3 Data pin 3 (used in 8-bit mode; leave unconnected in 4-bit mode)
11 D4 Data pin 4 (used in both 4-bit and 8-bit modes)
12 D5 Data pin 5 (used in both 4-bit and 8-bit modes)
13 D6 Data pin 6 (used in both 4-bit and 8-bit modes)
14 D7 Data pin 7 (used in both 4-bit and 8-bit modes)
15 LED+ Backlight anode (connect to +5V through a resistor)
16 LED- Backlight cathode (connect to ground)

Usage Instructions

How to Use the LCD Screen in a Circuit

  1. Power the LCD: Connect the VSS pin to ground and the VDD pin to a 5V power supply.
  2. Adjust Contrast: Connect the V0 pin to the middle terminal of a 10kΩ potentiometer. Connect the other two terminals of the potentiometer to 5V and ground. Adjust the potentiometer to set the desired contrast.
  3. Connect Control Pins:
    • Connect the RS pin to a digital output pin of your microcontroller.
    • Connect the RW pin to ground (for write-only mode).
    • Connect the E pin to another digital output pin of your microcontroller.
  4. Connect Data Pins:
    • For 4-bit mode, connect D4 to D7 to digital output pins of your microcontroller. Leave D0 to D3 unconnected.
    • For 8-bit mode, connect D0 to D7 to digital output pins of your microcontroller.
  5. Backlight: Connect LED+ to 5V through a 220Ω resistor and LED- to ground.
  6. Initialize the LCD: Use the appropriate initialization sequence in your microcontroller code to configure the LCD.

Example Code for Arduino UNO

Below is an example of how to use a 16x2 LCD with an Arduino UNO in 4-bit mode:

#include <LiquidCrystal.h>

// Initialize the library with the pins connected to the LCD:
// RS, E, D4, D5, D6, D7
LiquidCrystal lcd(7, 8, 9, 10, 11, 12);

void setup() {
  // Set up the LCD's number of columns and rows:
  lcd.begin(16, 2);

  // Print a message to the LCD.
  lcd.print("Hello, World!");
}

void loop() {
  // Set the cursor to column 0, line 1 (second row):
  lcd.setCursor(0, 1);

  // Print the current time in seconds since the Arduino started:
  lcd.print(millis() / 1000);
}

Important Considerations and Best Practices

  • Always use a current-limiting resistor (e.g., 220Ω) for the backlight to prevent damage.
  • Use a 10kΩ potentiometer to adjust the contrast for optimal visibility.
  • Avoid leaving unused pins floating; connect them to ground if not in use.
  • Ensure proper initialization of the LCD in your code to avoid display issues.

Troubleshooting and FAQs

Common Issues and Solutions

  1. No Display on the LCD:

    • Check the power connections (VSS, VDD) and ensure the LCD is receiving 5V.
    • Adjust the contrast using the potentiometer connected to the V0 pin.
    • Verify that the backlight is connected properly.
  2. Garbled or Incorrect Characters:

    • Ensure the data pins (D4 to D7) are correctly connected to the microcontroller.
    • Verify that the LCD initialization sequence in your code matches the LCD's requirements.
  3. Backlight Not Working:

    • Check the LED+ and LED- connections.
    • Ensure a current-limiting resistor is used and that the resistor value is appropriate.
  4. LCD Not Responding to Commands:

    • Verify the RS, RW, and E pin connections.
    • Ensure the microcontroller is correctly configured to communicate with the LCD.

FAQs

Q: Can I use the LCD with a 3.3V microcontroller?
A: Yes, but you will need a level shifter or voltage divider to safely interface the 3.3V logic with the 5V LCD.

Q: How do I display custom characters on the LCD?
A: You can use the createChar() function in the LiquidCrystal library to define and display custom characters.

Q: Can I use the LCD in 8-bit mode?
A: Yes, but 4-bit mode is more common as it uses fewer pins, leaving more GPIOs available for other components.
