How to Use GPS NEO-M8N: Examples, Pinouts, and Specs

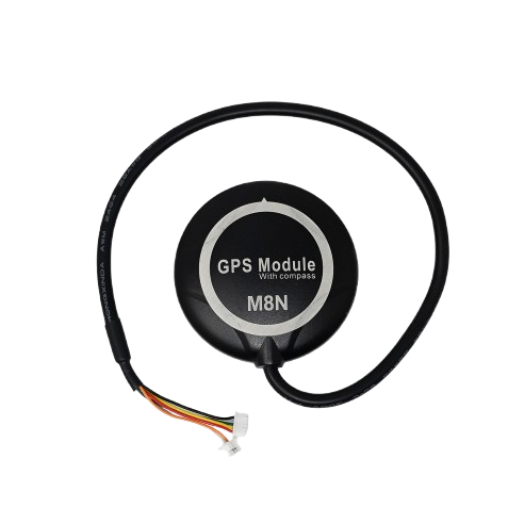

Image of GPS NEO-M8N
Cirkit Designer LogoDesign with GPS NEO-M8N in Cirkit Designer

Introduction

The GPS NEO-M8N is a high-performance GPS module designed to provide accurate positioning and timing information. It supports multiple Global Navigation Satellite Systems (GNSS), including GPS, GLONASS, Galileo, and BeiDou, ensuring robust and reliable location tracking. This module is widely used in applications such as navigation systems, robotics, drones, and Internet of Things (IoT) devices. Its compact size, low power consumption, and high sensitivity make it an ideal choice for both hobbyists and professionals.

Explore Projects Built with GPS NEO-M8N

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
ESP32-Based GPS Tracker with OLED Display and Telegram Integration
Image of Yoon: A project utilizing GPS NEO-M8N in a practical application
This circuit is a GPS-based tracking system that uses an ESP32 microcontroller to receive GPS data from a NEO 6M module and display the coordinates on a 1.3" OLED screen. It also features WiFi connectivity to send location updates to a remote server, potentially for applications such as asset tracking or navigation assistance.
Cirkit Designer LogoOpen Project in Cirkit Designer
ESP32-Based GPS Tracker with OLED Display and Firebase Integration
Image of ecs: A project utilizing GPS NEO-M8N in a practical application
This circuit is a GPS tracking system that uses an ESP32 microcontroller to read location data from a NEO-6M GPS module and display information on a 0.96" OLED screen. The system is powered by a 2000mAh battery with a lithium-ion charger, and it uploads the GPS data to Firebase via WiFi. Additional components include an MPU6050 accelerometer/gyroscope for motion sensing and a buzzer for alerts.
Cirkit Designer LogoOpen Project in Cirkit Designer
Arduino Nano GPS Tracker with GSM and OLED Display
Image of Smart GPS Tracker: A project utilizing GPS NEO-M8N in a practical application
This circuit is a GPS tracking system that uses an Arduino Nano to interface with a SIM800L GSM module, a GPS NEO 6M module, and a 1.3-inch OLED display. The Arduino collects GPS data, displays it on the OLED screen, and sends the coordinates via SMS using the GSM module.
Cirkit Designer LogoOpen Project in Cirkit Designer
STM32F4-Based Multi-Sensor GPS Tracking System
Image of Phase 1 fc: A project utilizing GPS NEO-M8N in a practical application
This circuit integrates an STM32F4 microcontroller with a GPS module (NEO 6M), an accelerometer and gyroscope (MPU-6050), a barometric pressure sensor (BMP280), and a compass (HMC5883L). The microcontroller communicates with the sensors via I2C and the GPS module via UART, enabling it to gather and process environmental and positional data.
Cirkit Designer LogoOpen Project in Cirkit Designer

Explore Projects Built with GPS NEO-M8N

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Image of Yoon: A project utilizing GPS NEO-M8N in a practical application
ESP32-Based GPS Tracker with OLED Display and Telegram Integration
This circuit is a GPS-based tracking system that uses an ESP32 microcontroller to receive GPS data from a NEO 6M module and display the coordinates on a 1.3" OLED screen. It also features WiFi connectivity to send location updates to a remote server, potentially for applications such as asset tracking or navigation assistance.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of ecs: A project utilizing GPS NEO-M8N in a practical application
ESP32-Based GPS Tracker with OLED Display and Firebase Integration
This circuit is a GPS tracking system that uses an ESP32 microcontroller to read location data from a NEO-6M GPS module and display information on a 0.96" OLED screen. The system is powered by a 2000mAh battery with a lithium-ion charger, and it uploads the GPS data to Firebase via WiFi. Additional components include an MPU6050 accelerometer/gyroscope for motion sensing and a buzzer for alerts.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Smart GPS Tracker: A project utilizing GPS NEO-M8N in a practical application
Arduino Nano GPS Tracker with GSM and OLED Display
This circuit is a GPS tracking system that uses an Arduino Nano to interface with a SIM800L GSM module, a GPS NEO 6M module, and a 1.3-inch OLED display. The Arduino collects GPS data, displays it on the OLED screen, and sends the coordinates via SMS using the GSM module.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Phase 1 fc: A project utilizing GPS NEO-M8N in a practical application
STM32F4-Based Multi-Sensor GPS Tracking System
This circuit integrates an STM32F4 microcontroller with a GPS module (NEO 6M), an accelerometer and gyroscope (MPU-6050), a barometric pressure sensor (BMP280), and a compass (HMC5883L). The microcontroller communicates with the sensors via I2C and the GPS module via UART, enabling it to gather and process environmental and positional data.
Cirkit Designer LogoOpen Project in Cirkit Designer

Technical Specifications

The following table outlines the key technical specifications of the GPS NEO-M8N module:

Parameter Specification
GNSS Supported GPS, GLONASS, Galileo, BeiDou
Position Accuracy 2.5 meters CEP (Circular Error Probable)
Update Rate Up to 10 Hz
Operating Voltage 2.7V to 3.6V
Power Consumption ~45 mA (typical)
Communication Interface UART, I2C, SPI
Antenna External active antenna (3.3V supply)
Operating Temperature -40°C to +85°C
Dimensions 16 x 12.2 x 2.4 mm

Pin Configuration and Descriptions

The GPS NEO-M8N module typically comes with the following pinout:

Pin Number Pin Name Description
1 VCC Power supply input (2.7V to 3.6V)
2 GND Ground connection
3 TXD UART Transmit Data
4 RXD UART Receive Data
5 SDA I2C Data Line
6 SCL I2C Clock Line
7 PPS Pulse Per Second output for timing applications
8 RESET Reset input (active low)

Usage Instructions

How to Use the GPS NEO-M8N in a Circuit

  1. Power Supply: Connect the VCC pin to a 3.3V power source and the GND pin to ground.
  2. Communication Interface: Choose a communication protocol (UART, I2C, or SPI) based on your application. For most Arduino projects, UART is commonly used.
  3. Antenna Connection: Attach an external active antenna to the module for optimal signal reception.
  4. Microcontroller Connection: Connect the TXD and RXD pins to the corresponding UART pins on your microcontroller (e.g., Arduino UNO).
  5. PPS Signal (Optional): Use the PPS pin for precise timing applications if required.

Important Considerations and Best Practices

  • Ensure the module has a clear view of the sky for optimal satellite reception.
  • Use a low-noise power supply to avoid interference with the GPS signal.
  • Place the antenna away from sources of electromagnetic interference (e.g., motors, Wi-Fi modules).
  • If using UART, ensure the baud rate matches the default setting of the module (typically 9600 bps).

Example: Connecting GPS NEO-M8N to Arduino UNO

Below is an example Arduino sketch to read GPS data from the NEO-M8N module using the UART interface:

#include <SoftwareSerial.h>

// Define RX and TX pins for SoftwareSerial
SoftwareSerial gpsSerial(4, 3); // RX = Pin 4, TX = Pin 3

void setup() {
  Serial.begin(9600); // Initialize Serial Monitor at 9600 baud
  gpsSerial.begin(9600); // Initialize GPS module at 9600 baud

  Serial.println("GPS NEO-M8N Test");
}

void loop() {
  // Check if data is available from the GPS module
  while (gpsSerial.available()) {
    char c = gpsSerial.read(); // Read one character from GPS
    Serial.print(c); // Print the character to Serial Monitor

    // Note: GPS data is in NMEA format. Use a library like TinyGPS++ to parse
    // the data for latitude, longitude, and other information.
  }
}

Notes:

  • Use the TinyGPS++ library for parsing NMEA data into readable latitude, longitude, and other GPS information.
  • Ensure the RX and TX pins on the Arduino are connected correctly to the TXD and RXD pins on the GPS module.

Troubleshooting and FAQs

Common Issues and Solutions

  1. No GPS Fix (No Satellite Lock):

    • Ensure the antenna has a clear view of the sky.
    • Check the antenna connection and ensure it is securely attached.
    • Wait for a few minutes, as the first GPS fix may take longer.
  2. No Data Output:

    • Verify the UART connections (TXD to RX, RXD to TX).
    • Ensure the baud rate of the GPS module matches the microcontroller's settings.
    • Check the power supply voltage (should be between 2.7V and 3.6V).
  3. Intermittent Signal Loss:

    • Reduce sources of electromagnetic interference near the module.
    • Use a high-quality active antenna for better signal reception.
  4. Incorrect Data Parsing:

    • Ensure you are using a library like TinyGPS++ to parse NMEA sentences.
    • Verify that the GPS module is outputting standard NMEA data.

FAQs

Q: Can the NEO-M8N module work indoors?
A: While the module may work indoors near windows, it is designed for outdoor use where it has a clear view of the sky.

Q: What is the default baud rate of the NEO-M8N?
A: The default baud rate is 9600 bps, but it can be configured using u-blox software tools.

Q: Can I use the NEO-M8N with a 5V microcontroller?
A: Yes, but you will need a level shifter to safely interface the 3.3V logic of the GPS module with the 5V logic of the microcontroller.

Q: How can I increase the update rate?
A: Use the u-blox u-center software to configure the module for an update rate of up to 10 Hz.

By following this documentation, you can effectively integrate the GPS NEO-M8N module into your projects and troubleshoot common issues.
