How to Use DC Power Jack: Examples, Pinouts, and Specs

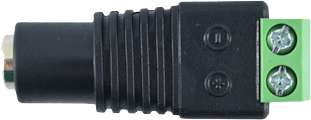

A DC power jack is a connector used to supply direct current (DC) power to electronic devices. It typically features a cylindrical shape and is designed to accept a matching DC power plug, allowing for easy connection and disconnection of power. DC power jacks are commonly found in consumer electronics, such as laptops, routers, and small appliances, where they serve as the primary interface for external power supplies.

• Powering electronic devices like laptops, routers, and audio equipment
• Providing a reliable connection for external DC power supplies
• Used in prototyping and DIY electronics projects
• Commonly integrated into Arduino-based projects for external power input

Below are the general technical specifications for a standard DC power jack. Note that specific models may vary slightly, so always refer to the datasheet of the exact component you are using.

• Voltage Rating: Typically 12V to 24V (varies by model)
• Current Rating: 1A to 5A (depending on the jack type)
• Connector Type: Cylindrical barrel connector
• Outer Diameter (OD): Commonly 5.5mm
• Inner Diameter (ID): Commonly 2.1mm or 2.5mm
• Polarity: Center pin positive (most common), but verify with your power supply
• Mounting Style: Panel mount or PCB mount
• Material: Metal contacts with plastic insulation

The DC power jack typically has three pins, as described in the table below:

1. Identify the Pins: Use the pin configuration table above to identify the center pin, outer sleeve, and switch pin (if present).
2. Connect Power Supply:
   • Connect the center pin to the positive voltage rail (V+).
   • Connect the outer sleeve to the ground (GND).
3. Optional Switch Pin:
   • If the jack has a switch pin, it can be used to disconnect an internal power source (e.g., a battery) when an external power plug is inserted.
4. Mounting:
   • For panel-mount jacks, secure the jack to the enclosure using the provided nut.
   • For PCB-mount jacks, solder the pins to the appropriate pads on the PCB.

• Polarity: Always verify the polarity of your power supply. Most DC power jacks are center-positive, but some may differ.
• Voltage and Current Ratings: Ensure the jack can handle the voltage and current requirements of your circuit.
• Secure Connections: Use proper soldering techniques for PCB-mounted jacks to ensure a reliable connection.
• Strain Relief: For panel-mounted jacks, use strain relief to prevent damage to the jack or wires.

The Arduino UNO can be powered using a DC power jack with a 2.1mm inner diameter and 5.5mm outer diameter. Below is an example of how to connect a 12V DC power supply to the Arduino UNO.

// Example: Powering an Arduino UNO with a DC Power Jack
// Ensure the DC power jack is connected to a 12V power supply.
// The Arduino UNO's onboard voltage regulator will step down the voltage to 5V.

void setup() {
  // No specific code is required to power the Arduino UNO via the DC jack.
  // Simply connect the DC power jack to the Arduino's power input port.
}

void loop() {
  // Example: Blink the onboard LED to confirm the Arduino is powered.
  pinMode(LED_BUILTIN, OUTPUT); // Set the onboard LED pin as output
  digitalWrite(LED_BUILTIN, HIGH); // Turn the LED on
  delay(1000); // Wait for 1 second
  digitalWrite(LED_BUILTIN, LOW); // Turn the LED off
  delay(1000); // Wait for 1 second
}

1. No Power to the Circuit:

   • Cause: Incorrect polarity or loose connections.
   • Solution: Verify the polarity of the power supply and ensure all connections are secure.

2. Overheating of the Jack:

   • Cause: Exceeding the current rating of the jack.
   • Solution: Use a jack with a higher current rating or reduce the load on the circuit.

3. Intermittent Power Loss:

   • Cause: Poor solder joints or damaged jack.
   • Solution: Inspect and re-solder the connections or replace the jack.

4. Switch Pin Not Functioning:

   • Cause: Incorrect wiring of the switch pin.
   • Solution: Verify the switch pin connection and ensure it is properly integrated into the circuit.

• Q: Can I use a DC power jack with an AC power supply?
  A: No, DC power jacks are designed for direct current (DC) only. Using an AC power supply can damage your circuit.

• Q: How do I determine the polarity of my DC power jack?
  A: Most jacks are center-positive. Check the datasheet or use a multimeter to confirm.

• Q: Can I use a DC power jack for high-current applications?
  A: Standard DC power jacks are not suitable for high-current applications. Use a jack rated for the required current or consider alternative connectors.

• Q: What is the purpose of the switch pin?
  A: The switch pin allows the circuit to detect the presence of a plug or to switch between power sources (e.g., battery and external power).
