How to Use TCA9548A i2c Multiplexer [Bill Ludwig] : Examples, Pinouts, and Specs

The TCA9548A I2C Multiplexer is a versatile electronic component designed to expand the capabilities of the I2C communication protocol. It allows multiple I2C devices to share a single I2C bus by switching between up to eight independent channels. This is particularly useful when working with multiple devices that have the same I2C address, as it eliminates address conflicts and simplifies circuit design.

• Connecting multiple sensors or modules with identical I2C addresses to a single microcontroller.
• Expanding the number of I2C devices in a system.
• Isolating I2C devices to prevent interference or address conflicts.
• Prototyping and testing multiple I2C devices in parallel.

The following table outlines the key technical details of the TCA9548A I2C Multiplexer:

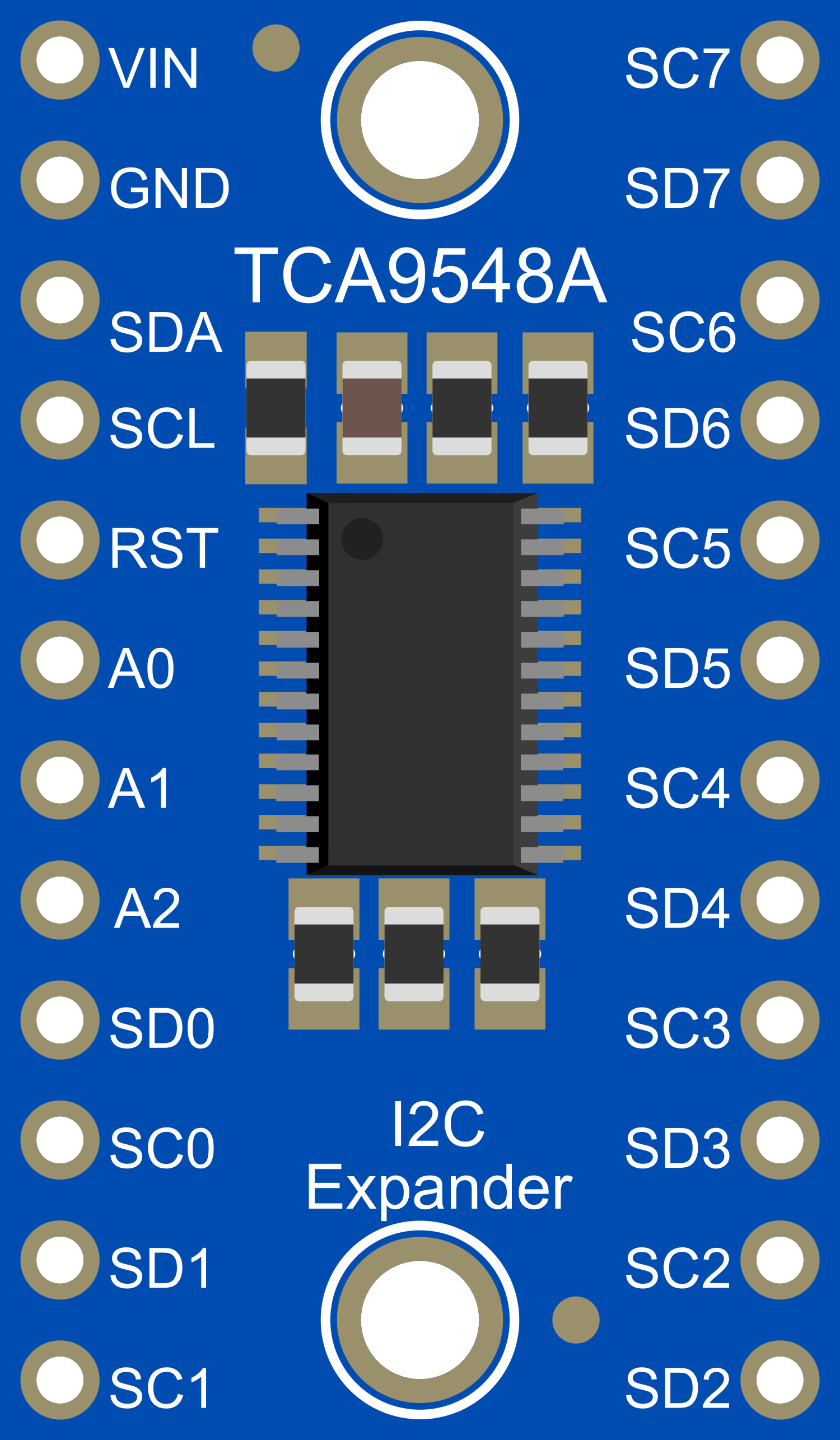

The TCA9548A has 24 pins, with the following key pin assignments:

1. Power the Multiplexer: Connect the VCC pin to a power source (1.65V to 5.5V) and the GND pin to ground.
2. Set the I2C Address: Use the A0, A1, and A2 pins to configure the I2C address. Connect these pins to GND or VCC to set the desired address (0x70 to 0x77).
3. Connect the I2C Bus: Attach the main I2C lines (SDA and SCL) to the microcontroller or master device.
4. Connect Devices to Channels: Attach the SDA and SCL lines of each I2C device to the corresponding SDx and SCx pins of the desired channel.
5. Control the Channels: Use I2C commands to enable or disable specific channels. Only one channel can be active at a time.

• Pull-Up Resistors: Ensure that appropriate pull-up resistors are present on the main I2C bus and each channel. Typically, 4.7kΩ resistors are used.
• Reset Pin: Connect the RESET pin to a GPIO pin on the microcontroller or to VCC through a pull-up resistor for proper operation.
• Voltage Compatibility: Ensure that all connected devices operate within the same voltage range as the TCA9548A.
• Channel Switching: Only one channel can be active at a time. Switching channels too quickly may cause communication errors.

The following example demonstrates how to use the TCA9548A with an Arduino UNO to communicate with a sensor on channel 0:

#include <Wire.h>

#define TCA9548A_ADDRESS 0x70  // Default I2C address of the TCA9548A

// Function to select a specific channel on the TCA9548A
void selectChannel(uint8_t channel) {
  if (channel > 7) return;  // Ensure the channel is valid (0-7)
  Wire.beginTransmission(TCA9548A_ADDRESS);
  Wire.write(1 << channel);  // Send the channel selection command
  Wire.endTransmission();
}

void setup() {
  Wire.begin();  // Initialize I2C communication
  Serial.begin(9600);  // Start serial communication for debugging

  // Select channel 0
  selectChannel(0);
  Serial.println("Channel 0 selected.");
}

void loop() {
  // Example: Communicate with a sensor on channel 0
  Wire.requestFrom(0x40, 2);  // Replace 0x40 with the sensor's I2C address
  if (Wire.available()) {
    uint8_t data1 = Wire.read();
    uint8_t data2 = Wire.read();
    Serial.print("Data: ");
    Serial.print(data1);
    Serial.print(", ");
    Serial.println(data2);
  }
  delay(1000);  // Wait 1 second before the next read
}

1. Devices Not Responding:

   • Ensure the correct channel is selected using the I2C command.
   • Verify that the I2C address of the TCA9548A is correctly configured.
   • Check for proper pull-up resistors on the I2C lines.

2. Communication Errors:

   • Ensure that only one channel is active at a time.
   • Verify that all devices on the active channel are powered and functioning.

3. Reset Issues:

   • If the multiplexer is unresponsive, toggle the RESET pin or power cycle the device.

4. Voltage Mismatch:

   • Ensure that all connected devices operate within the same voltage range as the TCA9548A.

Q: Can I use multiple TCA9548A multiplexers in the same circuit?
A: Yes, you can use up to eight TCA9548A multiplexers by configuring each with a unique I2C address using the A0, A1, and A2 pins.

Q: Do I need pull-up resistors on every channel?
A: Yes, each channel should have its own pull-up resistors if the connected devices do not already include them.

Q: Can I activate multiple channels simultaneously?
A: No, the TCA9548A allows only one channel to be active at a time.
